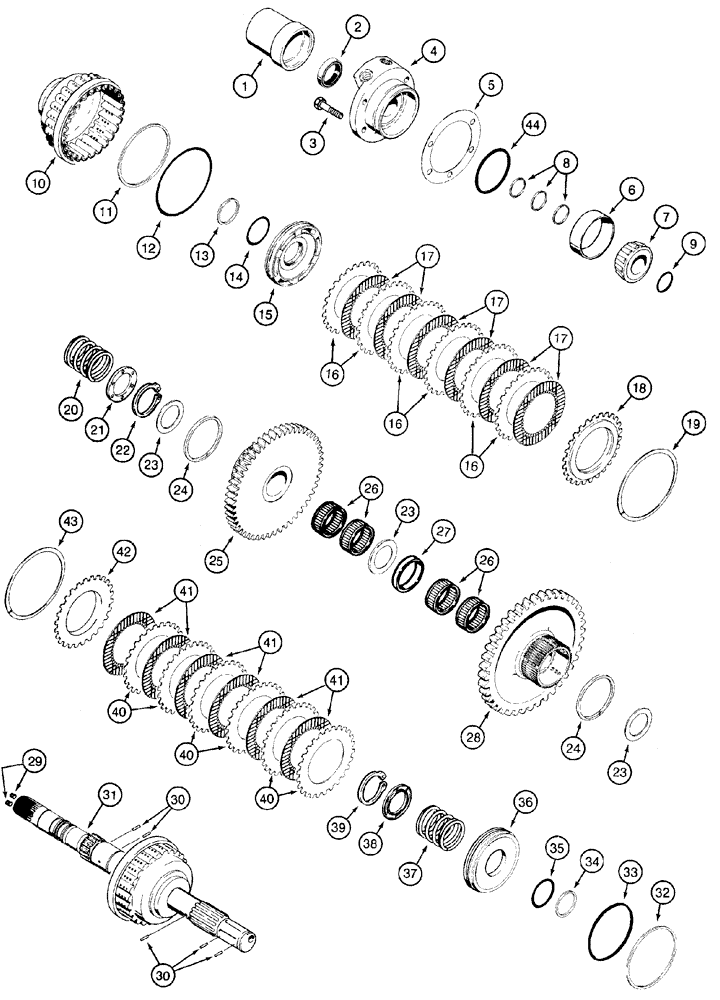

Запчасти Case 550H (6-06) - TRANSMISSION, CLUTCHES, FORWARD/REVERSE AND MAINSHAFT (06) - POWER TRAIN

REF

INSTRUCTION

Transmission Includes : 1 - 44 For Complete Assembly See Figure(s) : 6-04 - 6-12, 7-03

1шт.

1

G101696

PROTECTIVE COVER

Main Shaft Rear

1шт.

2

A54107

OIL SEAL,38.1mm ID x 8mm Thk

Oil

1шт.

3

107-9620

LOCK BOLT,Locking, 3/8"-16 x 1 1/4", G8

5шт.

4

1997065C1

SEAL RETAINER

1шт.

5

1997066C1

SHIM

0,076 mm (0,003 in)

1шт.

5

1997067C1

SHIM

0,178 mm (0,007 in)

1шт.

5

1997068C1

SHIM

0,254 mm (0,01 in)

1шт.

6

G109317

BEARING CUP

Bearing, Rear

1шт.

7

1342259C1

ROLLER BEARING,38.113 mm ID x 30.467 mm

Cone Rear

1шт.

8

1348976C1

SEAL

3шт.

9

238-5324

O-RING,0.21" Thk x 1.35" ID, -324, Cl 5, 75 Duro

1шт.

1997048C2

CLUTCH HOUSING

Forward Consists Of : 10 - 19

1шт.

10

1997003C2

HUB

Housing, Clutch Includes Hub

1шт.

11

A158051

SEAL,116.49mm ID x 123.91mm OD x 3.07mm Thk

1шт.

12

238-5156

O-RING,0.103" Thk x 4.237" ID, -156, Cl 5, 75 Duro

1шт.

13

A159295

SEAL,44.2mm ID x 50.7mm OD x 3.1mm Thk

1шт.

14

238-5135

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

2-1/16 ID x 3/32

1шт.

15

A159239

PISTON

1шт.

16

A175806

PLATE

Clutch Separator

6шт.

17

A188946

DRIVE PLATE,81.9mm ID x 127mm OD x 2.6mm Thk

Clutch Friction

6шт.

18

137720A1

PLATE

Clutch

1шт.

19

139987A1

SNAP RING,126.34mm ID x 142.4mm OD x 2.82mm Thk

Ring, Retaining

1шт.

20

A188080

SPRING

1шт.

21

A188044

RETAINER

1шт.

22

100-16175

SNAP RING,#175, Ext

1шт.

23

A188192

WASHER, THRUST,45.05mm ID x 64.94mm OD x 2.05mm Thk

3шт.

24

1981351C1

SEALING RING

81 x 90 x 4,5 mm; If Used

2шт.

24

1995174C1

SEALING RING

SEALRING 87 x 90 x 3 mm; Optional; If Used

2шт.

25

1997062C1

GEAR

51 T

1шт.

26

A178460

NEEDLE BEARING,44.99mm ID x 50.02mm OD x 16.8mm W

Needle

4шт.

27

A183452

THRUST BEARING,45.05mm ID x 66.85mm OD x 3.85mm W

Thrust

1шт.

28

1997061C1

GEAR

56 T Reverse Clutch

1шт.

1997045C2

SHAFT

Main With Reverse Clutch Consists Of : 29 - 43

1шт.

29

83-3446

SET SCREW,Hex Soc, 7/16"-14 x 3/8"

7/16 x 3/8

2шт.

30

38-3605

PIN,3/32" x 5/16", Coiled

5шт.

31

1997001C2

HUB

Shaft

1шт.

32

A158051

SEAL,116.49mm ID x 123.91mm OD x 3.07mm Thk

1шт.

33

238-5156

O-RING,0.103" Thk x 4.237" ID, -156, Cl 5, 75 Duro

1шт.

34

A159297

SEAL,47.2mm ID x 54.1mm OD x 3.1mm Thk

SEALRING

1шт.

35

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

1шт.

36

A159292

PISTON

1шт.

37

A188080

SPRING

1шт.

38

A188044

RETAINER

1шт.

39

100-16175

SNAP RING,#175, Ext

1шт.

40

A175806

PLATE

Clutch Separator

6шт.

41

A188946

DRIVE PLATE,81.9mm ID x 127mm OD x 2.6mm Thk

Clutch Friction

6шт.

42

137720A1

PLATE

Clutch

1шт.

43

139987A1

SNAP RING,126.34mm ID x 142.4mm OD x 2.82mm Thk

Retaining

1шт.

44

238-5154

O-RING,0.103" Thk x 3.737" ID, -154, Cl 5, 75 Duro

1шт.

138971A1

SEAL KIT

Package, includes : 2, 5, 8, 9, 11 - 14, 24, 32 - 35, 44 For Additional Components See Figure(s) : 6-04 - 6-09

1шт.
