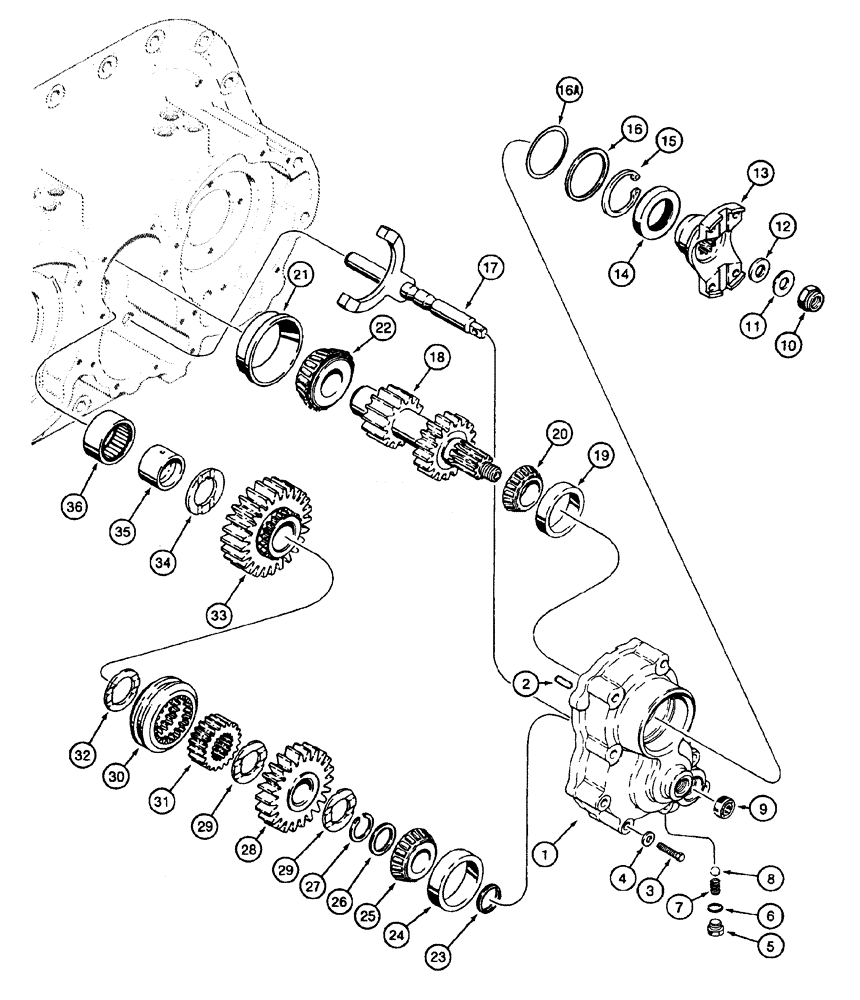

Запчасти Case 550H (6-05) - TRANSMISSION, RANGE SHIFT (06) - POWER TRAIN

REF

INSTRUCTION

Transmission Includes : 1 - 36 For Complete Assembly See Page(s) : 6-04 - 6-12, 7-03

1шт.

1

1348962C2

HOUSING ASSY.

Range Gear Use Sealant : B17555, B17556

1шт.

B17555

LOCTITE

Sealant No. 515, 50 ml

1шт.

B17556

LOCTITE

Sealant No. 515, 300 ml

1шт.

2

37-1820

DOWEL,1/2" x 1 1/4"

Pin, 1/2 x 1-1/4

2шт.

3

107-9648

LOCK BOLT,Locking, 3/8"-16 x 3", G8

9шт.

4

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

13/32 x 13/16 x 3/32

9шт.

5

76349

PLUG,9/16" - 18 ORB

Incl. 6

1шт.

7

352655A1

SPRING

Detent

1шт.

8

211-1016

BALL,12.7mm OD, Gr 24

Gr.24, CRS

1шт.

9

G105118

OIL SEAL

1шт.

10

131-37

LOCK NUT,3/4"-16

1шт.

11

896-16018

WASHER,19.8mm ID x 41.5mm OD x 5mm Thk

20 x 41 x 5 mm

1шт.

12

34395

SEALING WASHER

Washer, Special

1шт.

13

G110044

STIRRUP

Yoke Input Shaft

1шт.

14

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

Oil

1шт.

15

100-21300

SNAP RING,3.00", Int, #300

1шт.

16

1997006C2

SHIM

3,175 mm

1шт.

16a

1997004C1

SHIM

0,076 mm

1шт.

16a

1997005C1

SHIM

0,178 mm

1шт.

17

352550A1

SHAFT ASSY.

Lever Range Selector

1шт.

18

G107129

SHAFT

1шт.

19

165964R1

BEARING CUP

Input Shaft Front

1шт.

20

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

Input Shaft Front

1шт.

21

G106463

BEARING, CUP,89.59mm OD x 23.81mm W

Input Shaft Rear

1шт.

22

ST791

TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"

Input Shaft Rear

1шт.

23

1981335C1

SEAL

Main Shaft Front

1шт.

24

128242R1

BEARING CUP,76.225 mm OD x 23.863 mm

Cup Main Shaft Front

1шт.

25

G106461

ROLLER BEARING,33.34mm ID x 28.78mm W

Main Shaft Front

1шт.

26

1997008C1

SPACER

1шт.

27

100-16131

SNAP RING,#131, Ext

1шт.

28

G107093

GEAR

Main Shaft Front

1шт.

29

G107116

WASHER,33.48mm ID x 55.63mm OD x 3.17mm Thk

Thrust Front

2шт.

30

A51806

COLLAR

1шт.

31

G107110

HUB

Collar

1шт.

32

G107117

WASHER

Thrust Center

1шт.

33

G107094

GEAR WHEEL

Main Shaft Rear

1шт.

34

G106465

WASHER

Thrust Rear

1шт.

35

G106696

BEARING,41.26mm ID x 50.77mm OD x 32mm W

Race

1шт.

36

H748111

NEEDLE BEARING,Needle, 50.8mm ID x 65.17mm OD x 25.4mm W

Needle

1шт.

138971A1

SEAL KIT

Package, Includes : 6, 9, 12, 14, 16A, 23 For Additional Components See Figure(s) : 6-04 - 6-09

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
