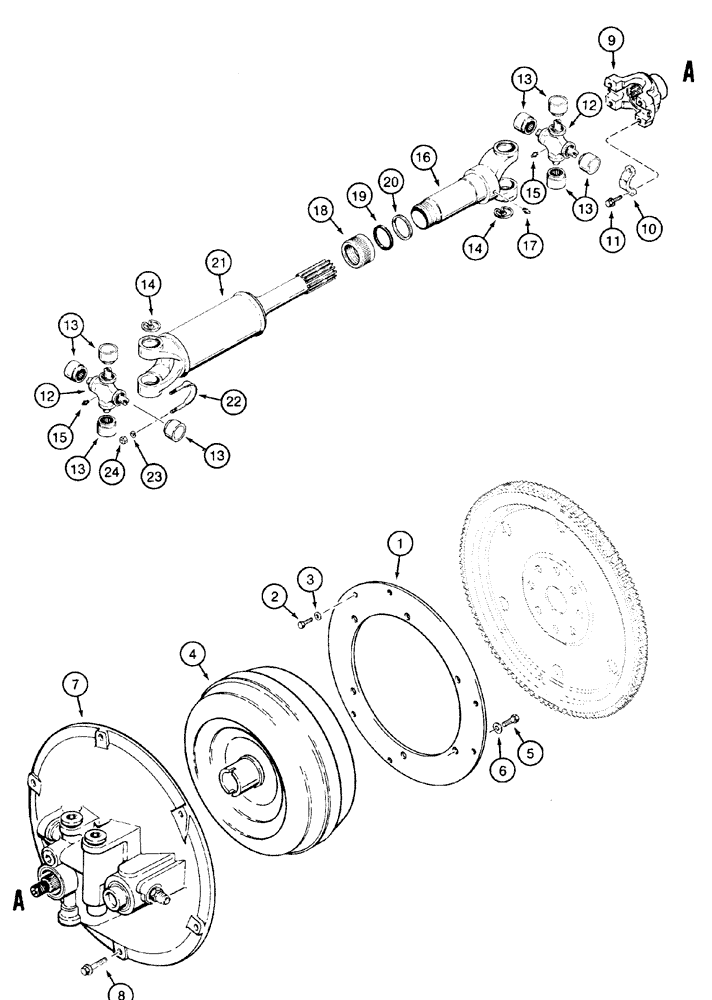

Запчасти Case 550H (6-01) - TORQUE CONVERTER, DRIVE SHAFT (06) - POWER TRAIN

1

A178706

PLATE

1шт.

2

428-510

BOLT,Hex, 5/16" - 24 x 5/8", Gr 8

Bolt, 5/16 NF x 5/8; 8 Adapter Plate to Flywheel Plate

6шт.

3

A15672

WASHER,8.74mm ID x 17.48mm OD x 1.52mm Thk

6шт.

4

1995137C1

CONVERTER

Torque, Component Parts Not Serviced Separately

1шт.

4

1995137C1R

REMAN-TORQUE CONVERT

ER Reman - Torque Converter

1шт.

4

1995137C1C

CORE-TORQUE CONVERTR

Return Part Number

1шт.

5

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

Adapter Plate to Torque Converter

6шт.

7

1348881C2

CONVERTER

Housing Assy Includes : 9 See Figure(s) : 6-6

1шт.

8

R54620

BOLT,Hex, Flange, M10 x 35mm CL 10.9

Special Torque Converter Housing to Flywheel Housing

6шт.

9

A159663

YOKE

UNIVERSAL JOINT YOKE

1шт.

10

D124146

CLAMP

Strap

2шт.

11

D124151

BOLT

Special

4шт.

109490A1

STEERING SHAFT

Drive Torque Converter to Transmission Consists Of : 12 - 21

1шт.

235981A1

KIT

Consists Of : 12 - 14

2шт.

12

NSS

NOT SOLD SEPARAT

Joint, Universal

1шт.

13

NSS

NOT SOLD SEPARAT

Race

4шт.

14

11256

SNAP RING

4шт.

15

219-10

LUBE NIPPLE,1/4" - 28 NPTF

1/4 tpr x 11/16 Not Used In This Application

1шт.

16

S301035

YOKE

Yoke, Universal Joint Tube Includes : 17

1шт.

17

219-10

LUBE NIPPLE,1/4" - 28 NPTF

1/4 tpr x 11/16

1шт.

18

H223875

CYLINDER END CAP

1шт.

19

134381A1

RUBBER WASHER

Rubber

1шт.

20

H223891

WASHER

Special

1шт.

21

S301042

SHAFT

Yoke, Universal Joint Splined

1шт.

H183566

BOLT

U Consists Of : 22 - 24

2шт.

22

NSS

NOT SOLD SEPARAT

Bolt, U

1шт.

23

492-11031

LOCK WASHER,5/16"

2шт.

24

425-115

NUT,5/16"-24, G5

2шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

6шт.
