Запчасти Case 550H (4-16) - COLD START SYSTEM (04) - ELECTRICAL SYSTEMS

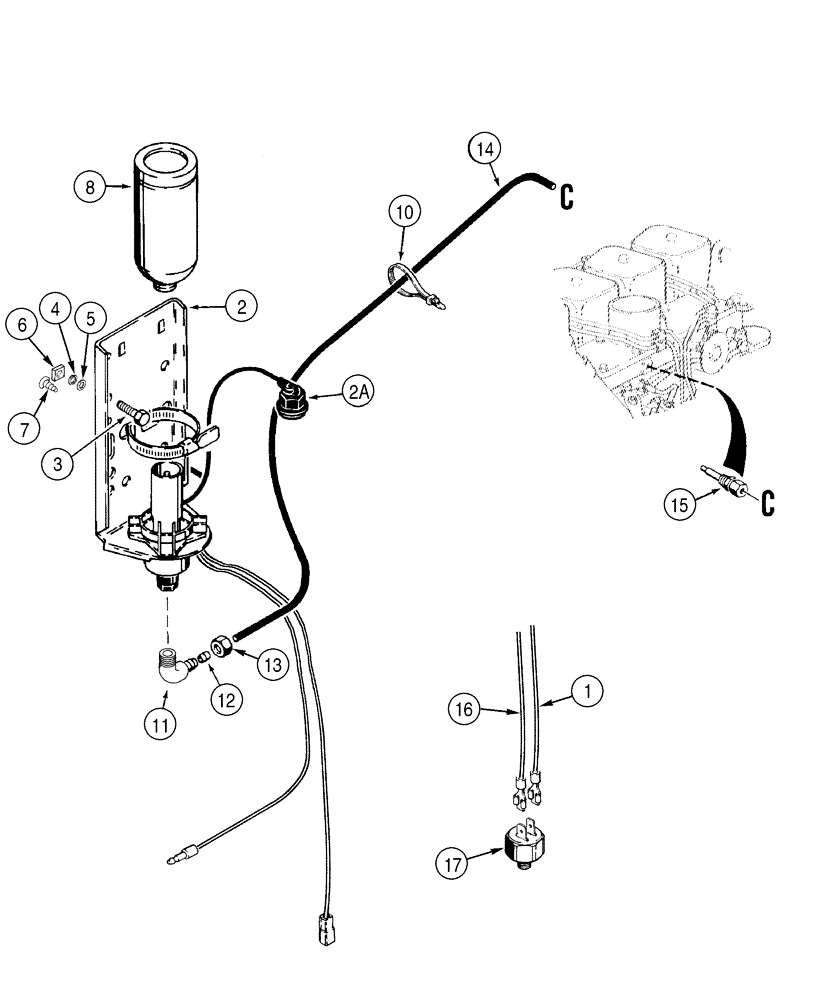

Схема запчастей Case 550H - (4-16) - COLD START SYSTEM (04) - ELECTRICAL SYSTEMS
4
16
14
3
13
2a
11
6
7
8
12
10
1
2
15
17
5

Артикул

Название

Примечание

Количество

1

338943A1

HARNESS

W/ Trans Pressure Connector, 305 mm (12") Length, No Longer Available, Order 338943A2, Relocated Trans Pressure Connector, 230 mm (9.0") Length

1шт.

1

338943A2

HARNESS

Relocated Trans Pressure Connector, 230 mm (9.0") Length, For Continuation of Harness See Figure(s) : 4-08 - 4-11

1шт.

2

A172116

VALVE

Solenoid, 12V, 3 cc Cold Start Includes : 2A

1шт.

2a

254729A1

SET OF PARTS

Cap and Cord

1шт.

3

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

5/16 x 3/4

2шт.

4

492-11031

LOCK WASHER,5/16"

2шт.

5

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

6

232-5345

FLANGE NUT,Flg, 5/16"-18

2шт.

7

336371A1

PIN,4.88mm OD x 14.23mm L

2шт.

8

310992A1

START SPRAY FLUID

Ether

1шт.

9

R51632

ELECTRICAL WIRE

WIRE Ground

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

2шт.

11

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 tube OD, Incl. 12, 13

1шт.

12

222-650

SLEEVE,1/8" Tube, Comp

1шт.

13

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD

1шт.

14

D145367

TUBE

762 mm (30 in) Cut From : L60539X

1шт.

15

A172900

NOZZLE CAP

Atomizer Component Parts Not Serviced Separately

1шт.

16

182448A1

ELECTRICAL WIRE

WIRE Jumper

1шт.

17

A172117

SWITCH

Ether Temperature

1шт.

Выбрано товаров: 19
