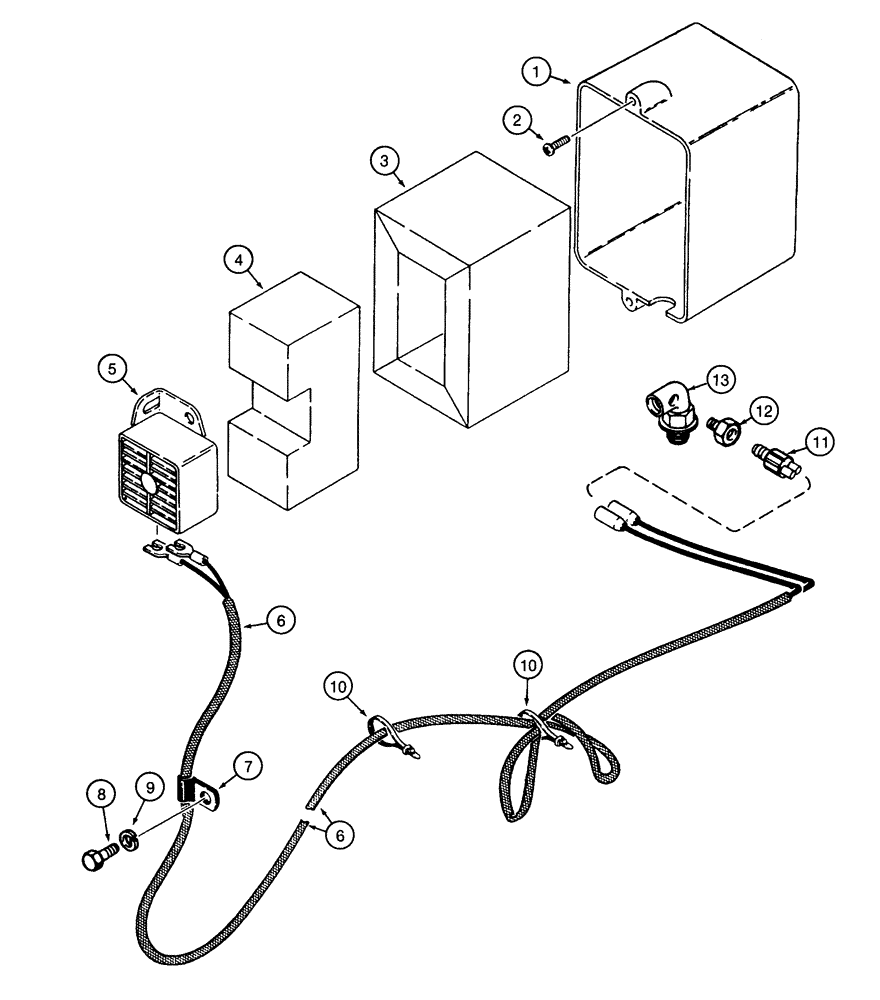

Запчасти Case 550H (4-15) - ALARM, BACKUP (04) - ELECTRICAL SYSTEMS

1

R50647

BOX

Cover

1шт.

2

261-55712

SELF-TAP SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

Pointed

2шт.

3

R50648

FOAM

Seal

1шт.

4

R51815

PAD

254 mm (10 in) Cut From : R30870

1шт.

5

L112318

ALARM

Backup

1шт.

6

361795A1

ELECTRICAL WIRE

WIRE Harness Backup Alarm

1шт.

7

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

8

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

9

492-11038

LOCK WASHER,3/8"

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

2шт.

11

D139904

SWITCH

Pressure Backup Alarm

1шт.

12

R52651

FITTING

Restrictor

1шт.

13

G107178

ELBOW

90 See Figure(s) : 6-10

1шт.
