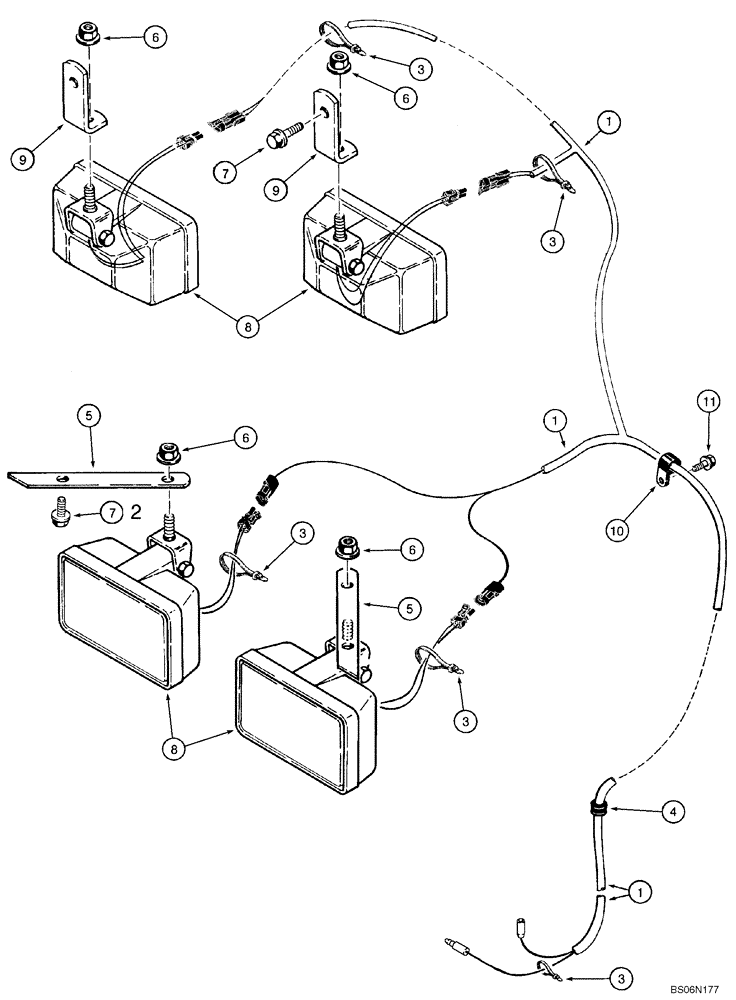

Запчасти Case 550H (4-13) - HARNESS, LAMP (04) - ELECTRICAL SYSTEMS

1

R58397

HARNESS

Lamp,ROPS W/ 6 Terminal Connectors; No Longer Available; For Service, Order 393825A1 ROPS Lamp Harness W/ 5 Terminal Connector and 394228A1 Harness Adapter Kit

1шт.

1

393825A1

HARNESS

Lamp,ROPS W/ 5 Terminal Connectors

1шт.

2

80679

LOCK WASHER,1/20.507 CST ZND

Replaces 492-11050

2шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 Inch, Nylon

5шт.

4

D42106

GROMMET

Rubber Lamp Harness through Hydraulic Reservoir Frame

1шт.

5

185919A1

BRACKET

2шт.

6

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

7

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

Flange 1/2-13 x 1-1/4; Replaces 160-106, 1/2 x 1.0; Used On Some Models

2шт.

8

D137294

LIGHT ASSY.

Front And Rear See Figure(s) : 04-05

4шт.

9

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

3шт.

10

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

10шт.

11

425-148

JAM NUT,Jam, 1/2"-13, G5

2шт.

12

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

1/4 ID

3шт.

13

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

(7.9 mm)

1шт.

16

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

17

372819A1

GUARD

2шт.

18

394228A1

KIT

Adapt Existing ROP Lamp Harness To 393825A1 Lamp Harness; Incl. 7-18760 Instruction Sheet , Ref 19-23; Not Illustrated

1шт.

19

245483C1

ELEC CONNECTOR,Male, 2 Pin

Not Illustrated

1шт.

20

1964741C1

PIN

Not Illustrated

2шт.

21

225126C1

CONNECTOR, ELEC

CONNECTOR Not Illustrated

4шт.

22

245482C1

ELEC CONNECTOR,2 Pin

Not Illustrated

1шт.

23

1964742C1

PIN

Not Illustrated

2шт.
