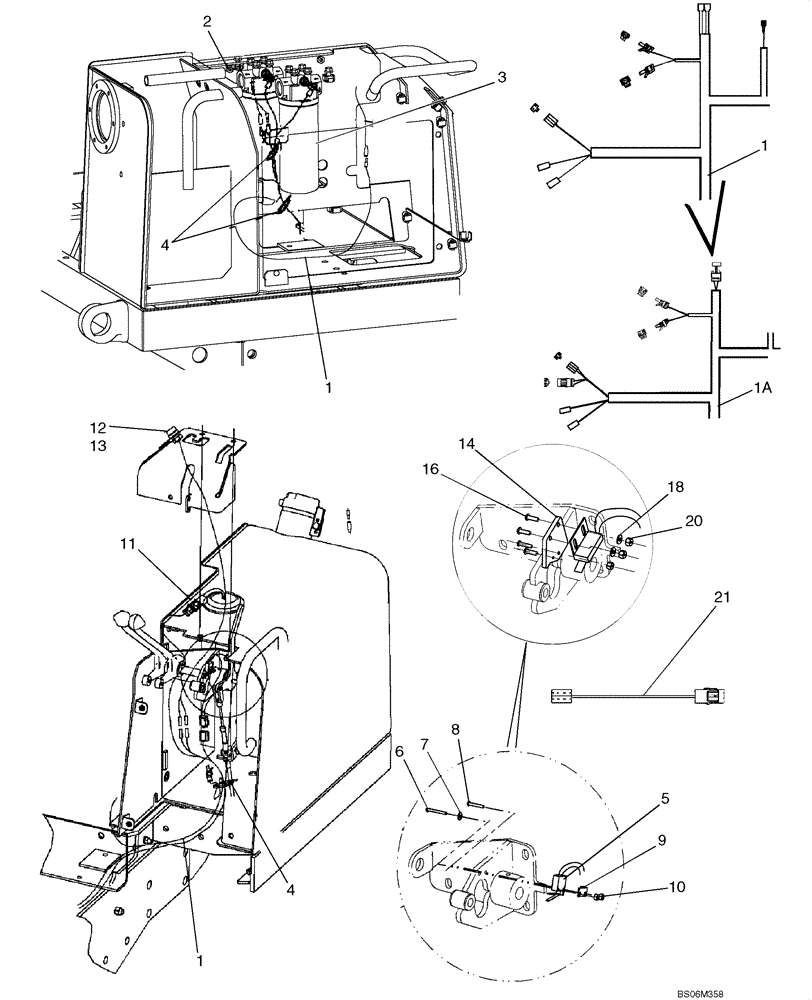

Запчасти Case 550H (4-12) - HARNESS, REAR, AT HYDRAULIC RESERVOIR AND FUEL TANK (04) - ELECTRICAL SYSTEMS

1

337573A1

HARNESS

Rear; W/ 1 Neutral Switch Connector And Light Terminal with Locking Pin Receptacle; No Longer Available, Order 3375753A2, Ref 1A and 394228A1, Ref 22 for Service

1шт.

1a

337573A2

HARNESS

Rear; W/ 2 Neutral Switch Shroud Connectors And 2 Way Light Shroud Connector

1шт.

2

REF

INSTRUCTION

Filter, Oil Transmission See Figure(s) : 06-05

1шт.

3

REF

INSTRUCTION

Filter, Oil Hydraulic See Figure(s) : 06-05

1шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 Inch, Nylon

1шт.

5

1343288C2

LIMIT SWITCH

Neutral Start; If Used

1шт.

6

440-10620

SCREW,Phillips Drive, Pan HD, #6 - 32 x 1-1/4"

6-32 x 1.25; If Used

1шт.

7

495-21019

WASHER,#8

.188 X .438 X .049 ZN; If Used

1шт.

8

440-10616

SCREW,Cross Pan Hd, #6-32 x 1"

6-32 X 1.00 ZN; If Used

1шт.

9

310719A1

COVER

Switch Mounting; If Used

1шт.

10

231-14106

NUT,#6-32, GB

No. 6-3; If Used

2шт.

11

326276A1

SENSOR

Fuel Level See Figure(s) : 03-03

1шт.

12

R58727

SWITCH

Push Button Horn

1шт.

13

425-1510

JAM NUT,Jam, 5/8"-18, G5

1шт.

396655A1

KIT

; Park And Neutral Start Switch; Incl. Ref 14 - 21; If Used

1шт.

14

392957A1

PLATE

Switch Mounting; If Used

1шт.

15

394819A2

SWITCH

Neutral Start L190mm; If Used

1шт.

16

440-10812

SCREW,Cross Pan Hd, #8-32 x 3/4"

If used

1шт.

17

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

If Used

3шт.

18

495-31022

WASHER,#10

0.219 x 0.50 0.04; If Used

2шт.

19

231-14408

NUT,#8-32, GB

No. 8-3; If Used

1шт.

20

231-14409

NUT,#10-24, GB

If Used

2шт.

21

396635A1

ELECTRICAL WIRE

WIRE Neutral Start Jumper

1шт.

22

394228A1

KIT

Service, To Adapt Existing Lamp and Rear Wiring Harness to 337573A2 Harness; Incl. Ref 22A-22F; Not Illustrated

1шт.

22a

245483C1

ELEC CONNECTOR,Male, 2 Pin

Not Illustrated

1шт.

22b

1964741C1

PIN

Not Illustrated

2шт.

22c

225126C1

CONNECTOR, ELEC

CONNECTOR Not Illustrated

4шт.

22d

245482C1

ELEC CONNECTOR,2 Pin

Not Illustrated

1шт.

22e

1964742C1

PIN

Not Illustrated

2шт.

22 f

7-18760

INSTRUCTION

For Installing 394228A1 Service Kit for ROPS Lamp Wiring and Rear Wiring Harness, Not Illustrated

1шт.
