(4-11) - HARNESSES, FRONT & REAR, FRONT HARNESS TO HORN & FRONT & REAR HARNESS MTG AT REAR OF CONTROL VALVE

Запчасти Case 550H (4-11) - HARNESSES, FRONT & REAR, FRONT HARNESS TO HORN & FRONT & REAR HARNESS MTG AT REAR OF CONTROL VALVE (04) - ELECTRICAL SYSTEMS

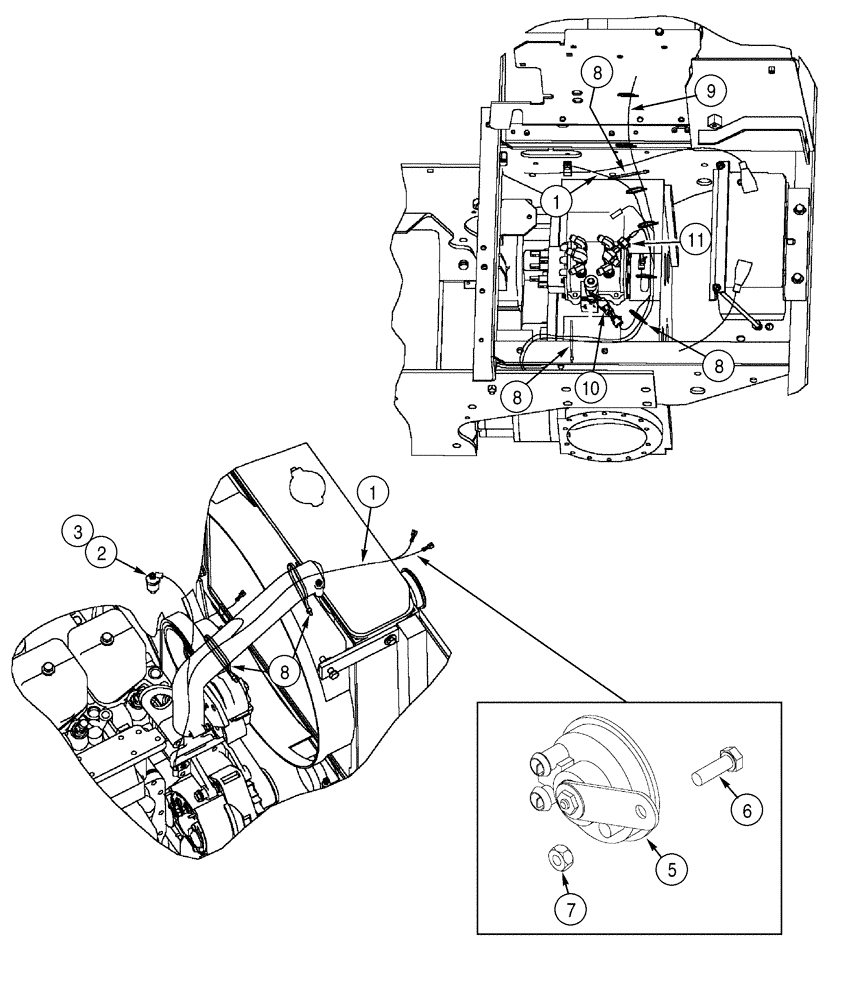

Схема запчастей Case 550H - (4-11) - HARNESSES, FRONT & REAR, FRONT HARNESS TO HORN & FRONT & REAR HARNESS MTG AT REAR OF CONTROL VALVE (04) - ELECTRICAL SYSTEMS
8
3
1
2
11
8
8
10
1
7
8
6
9
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

338943A1

HARNESS

W/ Trans Pressure Connector, 305 mm (12") Length, No Longer Available, Order 338943A2, Relocated Trans Pressure Connector, 230 mm (9.0") Length

1шт.

1

338943A2

HARNESS

Relocated Trans Pressure Connector, 230 mm (9.0") Length; See Fig 4-16

1шт.

2

193-1000

NUT,Keps, w/LW,#10-32

No. 10 NF

1шт.

3

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Sender Coolant Temperature

1шт.

5

237582A1

HORN

1шт.

6

614-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8, Full Thd

1шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

9

337573A1

HARNESS

Rear; See Fig 4-12

1шт.

10

REF

INSTRUCTION

Valve, Solenoid Brake See Figure (s) : 6-10, 6-11

1шт.

11

REF

INSTRUCTION

Switch, Pressure Backup Alarm See Figure(s) : 4-15, 6-10

1шт.
