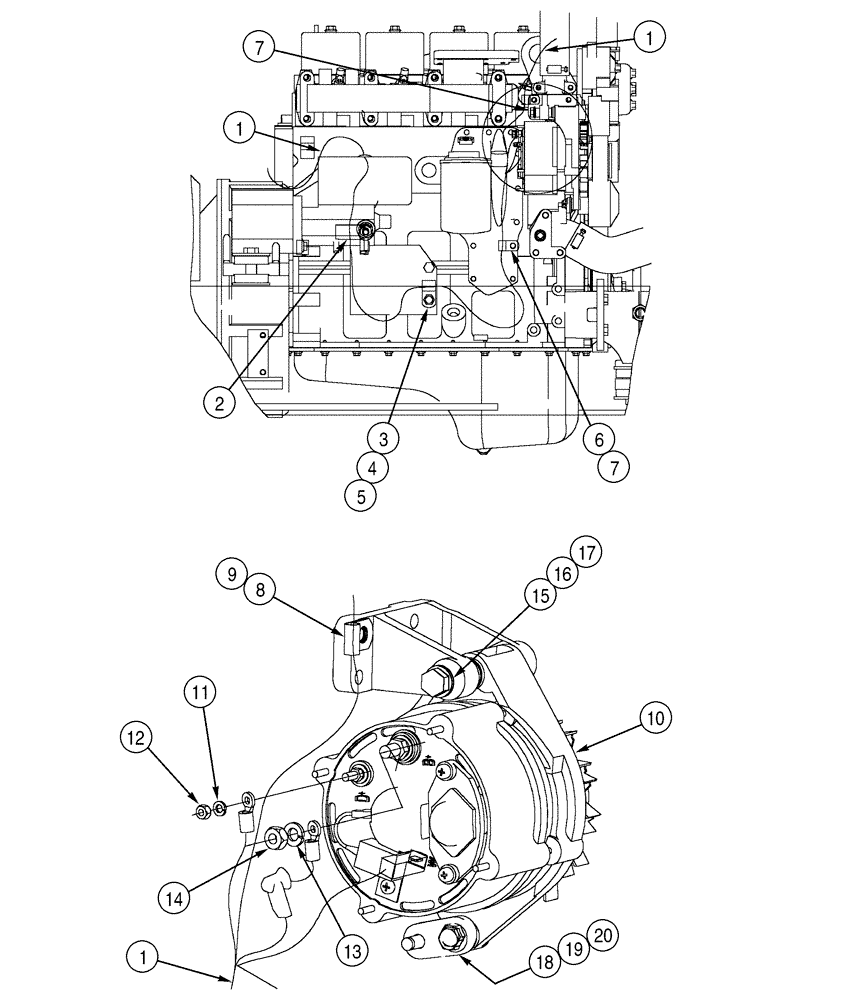

Запчасти Case 550H (4-09) - HARNESS, FRONT - ALTERNATOR, ENGINE RIGHT HAND SIDE AND ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

338943A1

HARNESS

W/ Trans Pressure Connector, 305 mm (12") Length, No Longer Available, Order 338943A2, Relocated Trans Pressure Connector, 230 mm (9.0") Length

1шт.

1

338943A2

HARNESS

Relocated Trans Pressure Connector, 230 mm (9.0") Length

1шт.

2

1987559C1

STARTING MOTOR

See Figure(s) : 4-01

1шт.

2

86982709R

REMAN-STARTER,12V, 2.5kW

REMANUFACTURED STARTING MOTOR

1шт.

2

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number, STARTING MOTOR

1шт.

2

104452A2R

REMAN-STARTER

Remanufactured STARTER 12 volt, 2.5KW

1шт.

2

104452A1C

CORE-STARTER

Return Part Number, STARTER 12 volt, 2.5KW

1шт.

3

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

4

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

5

892-11012

LOCK WASHER,M12

1шт.

6

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

7

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

8

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

1шт.

9

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

1шт.

10

A187873

ALTERNATOR,12V, 65A

12V, 65 amp See Figure(s) : 4-02

1шт.

10

A187873GV

ALTERNATOR

Value, 12V, 65A

1шт.

11

892-11005

LOCK WASHER,M5

1шт.

12

824-1405

NUT,M5, Cl 5

1шт.

13

892-11008

LOCK WASHER,8mm ID

1шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

15

J902469

SPACER

1шт.

16

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

1шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

1шт.

18

J903089

SUPPORT

Brace

1шт.

19

855-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 10.9

2шт.

20

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

1шт.
