Запчасти Case 550H (4-08) - HARNESS, FRONT, FRONT HARNESS AT COWL (04) - ELECTRICAL SYSTEMS

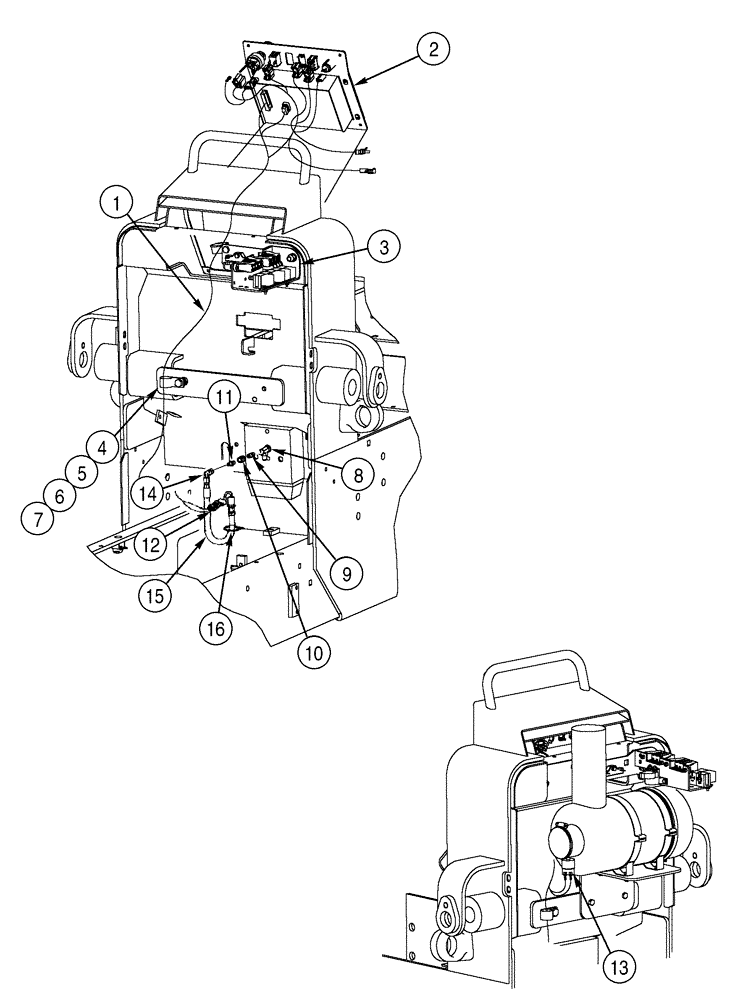

Схема запчастей Case 550H - (4-08) - HARNESS, FRONT, FRONT HARNESS AT COWL (04) - ELECTRICAL SYSTEMS
1
7
15
4
12
10
16
2
3
9
11
13
5
8
6
14

Артикул

Название

Примечание

Количество

1

338943A1

HARNESS

W/ Trans Pressure Connector, 305 mm (12") Length, No Longer Available, Order 338943A2, Relocated Trans Pressure Connector, 230 mm (9.0") Length

1шт.

1

338943A2

HARNESS

Relocated Trans Pressure Connector, 230 mm (9.0") Length

1шт.

2

REF

INSTRUCTION

Panel, Instrument See Figure(s) : 4-04, 4-05

1шт.

3

REF

INSTRUCTION

Mount Fuse and Relay See Figure(s) : 4-06, 4-07

1шт.

4

D34033

CLAMP

1-3/16 ID; If Used

1шт.

4

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

If Used

1шт.

4

515-25286

CLAMP,1 1/8", Insul, 3/8" Bolt

; If Used

1шт.

5

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

7

425-108

NUT,1/2" - 13, Gr 5

1шт.

8

REF

INSTRUCTION

Tee See Figure(s) : 7-02

1шт.

9

D36264

FITTING

; If Used

1шт.

9

116195A1

CHECK VALVE

; If Used

1шт.

10

217-1100

UNION,1/8" - 27 NPT x 1/8" - 27 NPT

1/8 PT, Coupling

1шт.

10

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

1/4 - 18 , Adapter

1шт.

11

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

7/16 fl x 1/8 PT

1шт.

12

336005A1

SWITCH

Transmission Pressure

1шт.

13

292740A1

RESTRICTION SWITCH

Air Restriction See Figure(s) : 2-06

1шт.

14

218-5228

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

90 7/16 fl x sw

1шт.

15

398130A1

HOSE

250 mm. Length; Replaces 370148A1, 305 mm (12"), Used On Some Models

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

Выбрано товаров: 21
