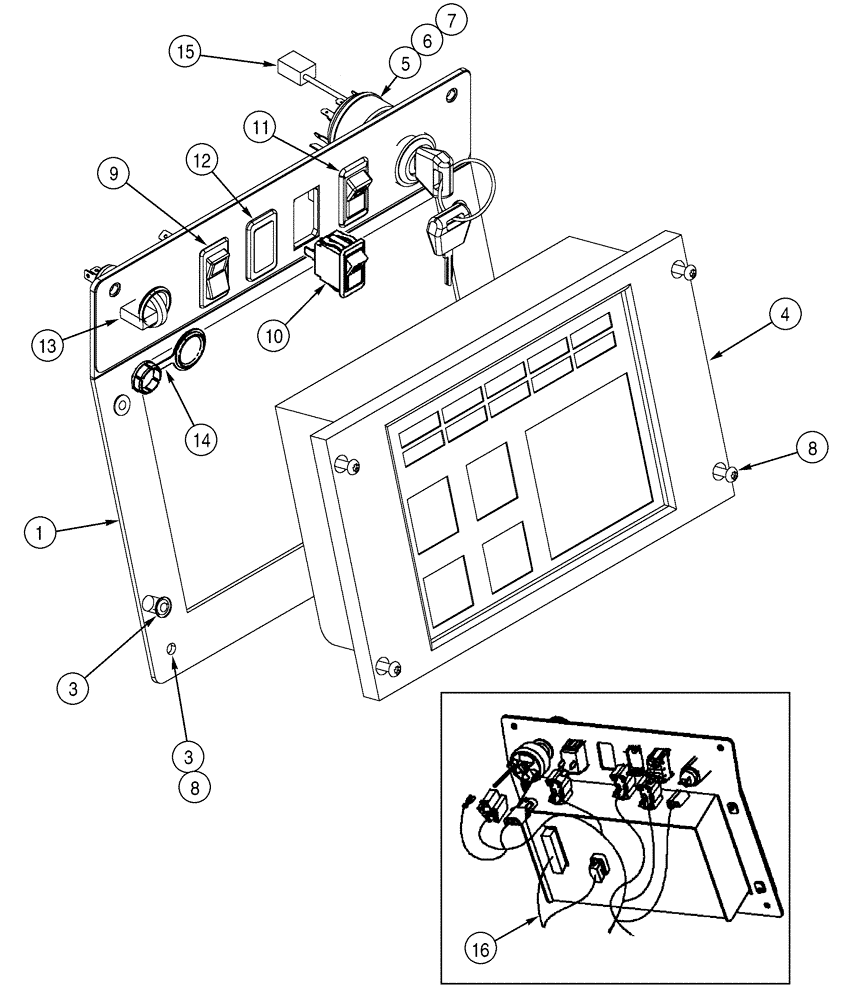

Запчасти Case 550H (4-04) - INSTRUMENT PANEL (04) - ELECTRICAL SYSTEMS

1

331706A1

PANEL ASSY.

Instrument

1шт.

2

331709A1

DECAL

Instrument Panel Not Illustrated See Figure(s) : 9-23

1шт.

3

D122634

ISOLATOR,12.7mm OD x 14.1mm L

Retainer

8шт.

4

337514A1

CLUSTER

Instr. See Figure(s) : 4-05

1шт.

282775A1

IGNITION SWITCH

Consists Of : 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

Switch, Ignition

1шт.

6

A77314

NUT

Special

1шт.

7

1964831C2

IGNITION KEY

Padded

1шт.

8

190-103

SCREW,Cross Pan Hd, #10 - 32 x 1"

8шт.

9

133711A1

LIGHT SWITCH

Rocker Lamps, Drive

1шт.

10

223838A1

CONTROL

Rocker Cold Start If Equipped

1шт.

11

331711A1

SWITCH

Rocker No Start

1шт.

12

86000535

PLUG,1.427" x .62", Plastic

Switch Opening, If equipped

2шт.

13

283779A1

POWER SOCKET,12V

1шт.

14

283781A1

CAP,Polyester Elastomer

Outlet Power Plug

1шт.

15

D137820

HARNESS

Wire Ignition Switch To Ground

1шт.

16

338943A1

HARNESS

W/ Trans Pressure Connector, 305 mm (12") Length, No Longer Available, Order 338943A2, Relocated Trans Pressure Connector, 230 mm (9.0") Length

1шт.

16

338943A2

HARNESS

W/ Trans Pressure Connector, 230 mm (9.0") Length

1шт.

17

L303478

CONDUIT

1шт.
