Запчасти Case 550H (3-14) - FUEL INJECTION, PUMP AND DRIVE, 4T-390 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

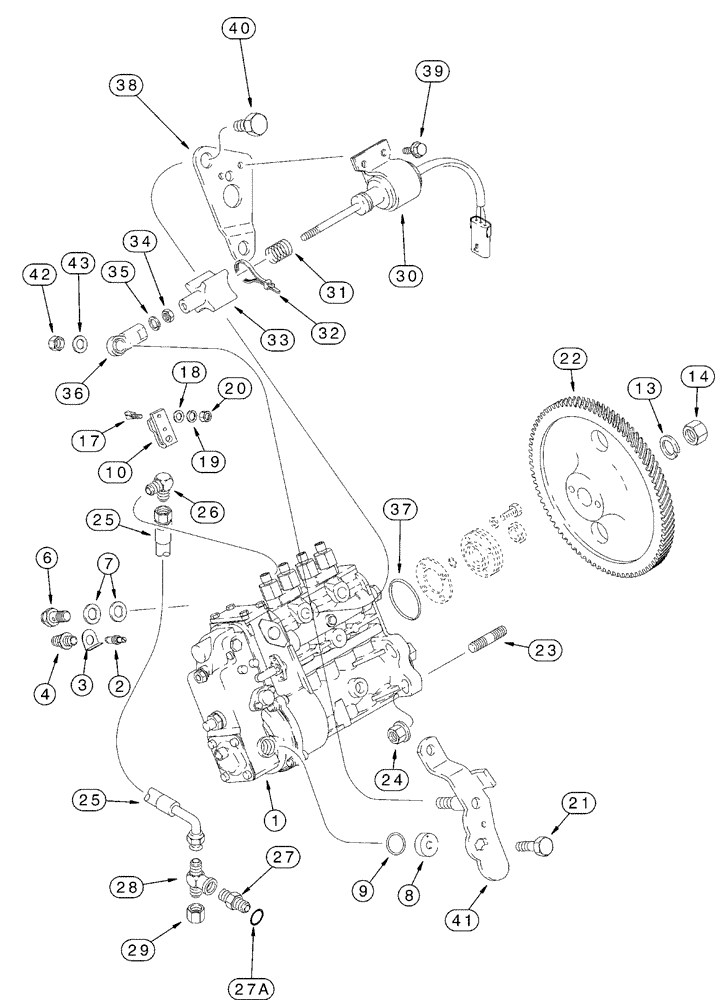

Схема запчастей Case 550H - (3-14) - FUEL INJECTION, PUMP AND DRIVE, 4T-390 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM
35
23
6
9
7
19
29
32
13
25
3
27a
1
41
24
34
21
33
2
27
26
18
42
37
14
8
22
30
39
4
36
20
25
10
38
43
40
31
28
17

Артикул

Название

Примечание

Количество

1

J930147

PUMP, FUEL INJECTION

PUMP, INJECTION Consists Of : 2 - 21

1шт.

1

JR930147

REMAN-INJECTION PUMP

Remanufactured Pump Assy

1шт.

1

JC930147

CORE-INJECTION PUMP

Return number

1шт.

2

A77720

PIN

1шт.

3

J928981

LOCK WASHER

1шт.

4

J912888

PLUG

1шт.

6

J932096

VALVE

Fitting

1шт.

7

933697R1

SEALING RING,M10 x 13.5 x 1

Washer

2шт.

8

691292C1

RETAINER

Housing

1шт.

9

680187C1

O-RING,2.5mm Thk x 9mm ID

1шт.

10

1808728C1

LEVER

1шт.

13

A77775

LOCK WASHER

1шт.

14

A41852

LOCK NUT

1шт.

17

1808822C1

THUMB SCREW,M6 x 26mm

1шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

19

892-11006

LOCK WASHER,M6

1шт.

20

829-1306

NUT,M6, Cl 10

1шт.

21

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

1шт.

22

J934636

PINION

Gear

1шт.

23

J915036

STUD

55 mm (2-5/32 in)

4шт.

24

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

25

J918536

FLEXIBLE HOSE,295.00 mm

1шт.

26

A77512

ELBOW

90 male

1шт.

27

J932321

UNION

Includes : 27A

1шт.

27a

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

28

J924346

TEE

1/8 PT x 7/16

1шт.

28a

J906619

PLUG,1/8" - 27

Hex, 1/8 PT Cylinder Block Not Illustrated

1шт.

29

218-752

CAP,37 Degree, 7/16"-20

1шт.

30

J932529

SOLENOID

12V Consists Of : 31 - 36

1шт.

31

311100A1

SPRING

1шт.

32

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

1шт.

33

J925171

BOOT

1шт.

34

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

35

492-11025

LOCK WASHER,1/4"

1шт.

36

311099A1

JOINT

Ball

1шт.

37

J935032

SEAL

80 mm ID

1шт.

38

J930590

SUPPORT

Bracket

1шт.

39

845-6012

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8

2шт.

40

J929456

SCREW,Hex, M16 x 1.5 x 12mm, Gr 8.8

2шт.

J802998

PACKAGE,SERVICE

Consists Of : 41 - 43

1шт.

41

NSS

NOT SOLD SEPARAT

Lever

1шт.

42

832-41306

NUT,M6 x 1, Cl 10

1шт.

43

J934022

WASHER

1шт.

Выбрано товаров: 43
