Запчасти Case 550H (3-13) - FUEL INJECTION, PUMP AND DRIVE, 4-390 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

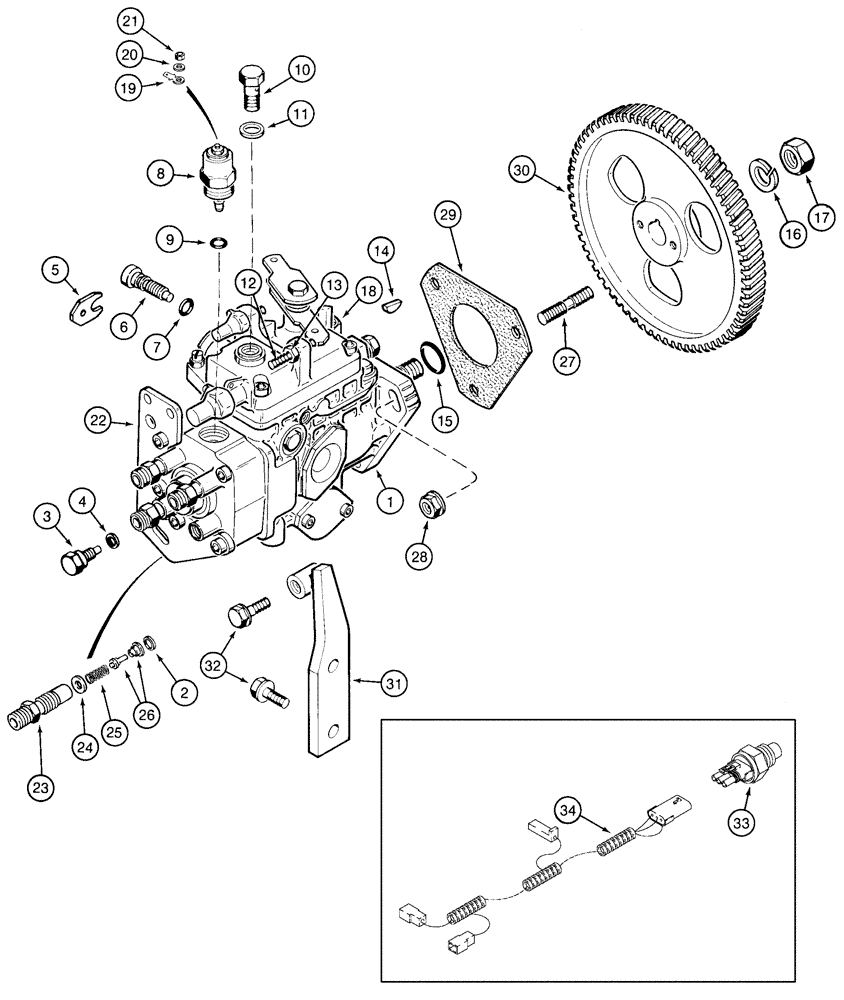

Схема запчастей Case 550H - (3-13) - FUEL INJECTION, PUMP AND DRIVE, 4-390 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM
27
12
29
32
1
13
3
17
15
5
4
16
23
2
11
34
19
8
30
25
7
18
26
21
33
20
31
22
24
9
28
6
14
10

Артикул

Название

Примечание

Количество

1

J935671

PUMP

Consists Of : 2 - 26

1шт.

1

JR935671

REMAN-INJECTION PUMP

Remanufactured Pump Assy

1шт.

1

JC935671

CORE-INJECTION PUMP

Return Number

1шт.

2

J903570

GASKET,5.4mm ID x 12mm OD x 1mm Thk

Seal

4шт.

3

J903572

BLEED SCREW,M8 x 1 x 23.10mm

1шт.

4

3053133R1

SEALING RING,M8 x 11.5 x 1

1шт.

5

J904786

PLATE

1шт.

6

J904784

SCREW,Hex Skt, M10 x 1 x 35mm

1шт.

7

J904785

O-RING,8 mm ID x 2.5 mm

1шт.

8

A77753

SOLENOID

1шт.

9

J903577

SEAL

1шт.

10

J905465

BANJO BOLT

1шт.

11

NSS

NOT SOLD SEPARAT

Washer

1шт.

12

J904782

SET SCREW,Sl, M6 x 40mm, Half Dog Pt

1шт.

13

J904783

NUT

1шт.

14

836-4065

WOODRUFF KEY,M4 x 6.5 x 15.72

1шт.

15

J920393

SEAL

1шт.

16

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

1шт.

17

J903738

NUT

M14

1шт.

18

J903382

ADAPTER,M12 x 1.5 x M14 x 1.5

1шт.

19

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

1шт.

20

J907481

WASHER

1шт.

21

J907480

NUT

1шт.

22

J905696

SUPPORT

Bracket

1шт.

23

J910794

FITTING

Fitting

4шт.

24

3059066R1

WASHER,2.5mm ID x 7.3mm OD x 1.5mm Thk

4шт.

25

J910796

SPRING

4шт.

26

J910795

BY-PASS VALVE

4шт.

27

J902501

STUD

M8 x 48

3шт.

28

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

3шт.

29

J931607

GASKET

Mounting

1шт.

30

J936021

GEAR

1шт.

31

J905313

LEVER

Brace

1шт.

32

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.

33

J915945

SWITCH

1шт.

34

J918364

HARNESS

1шт.

Выбрано товаров: 36
