(3-10) - FUEL FILTER, 4-390/4T-390 EMISSIONS CERTIFIED ENGINE

Запчасти Case 550H (3-10) - FUEL FILTER, 4-390/4T-390 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

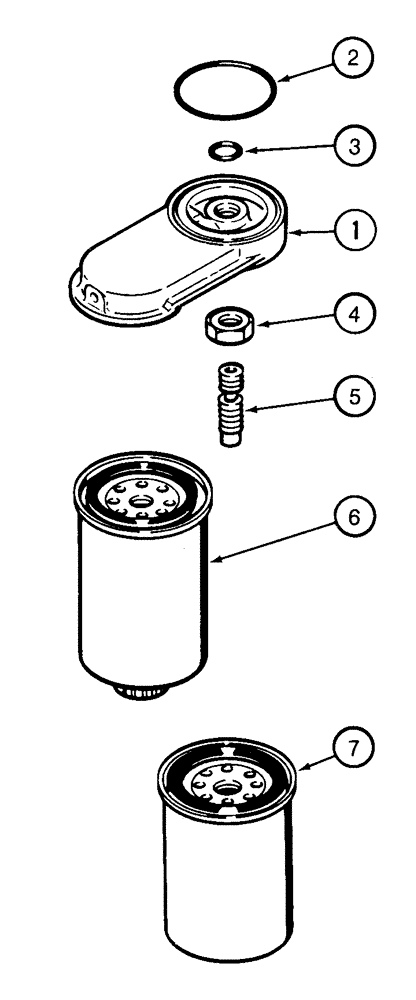

Схема запчастей Case 550H - (3-10) - FUEL FILTER, 4-390/4T-390 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM
1
4
6
2
3
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J897331

SUPPORT

Head

1шт.

2

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

SEALRING 70 mm

1шт.

3

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

SEALRING 14 mm

1шт.

4

J903293

JAM NUT

M16

1шт.

5

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

1шт.

5a

A77470

SEPARATOR

Kit, Not Illustrated, Consists of 6, 7

1шт.

6

J930942

SEPARATOR

Primary

1шт.

7

J931063

FUEL FILTER

Secondary

1шт.
