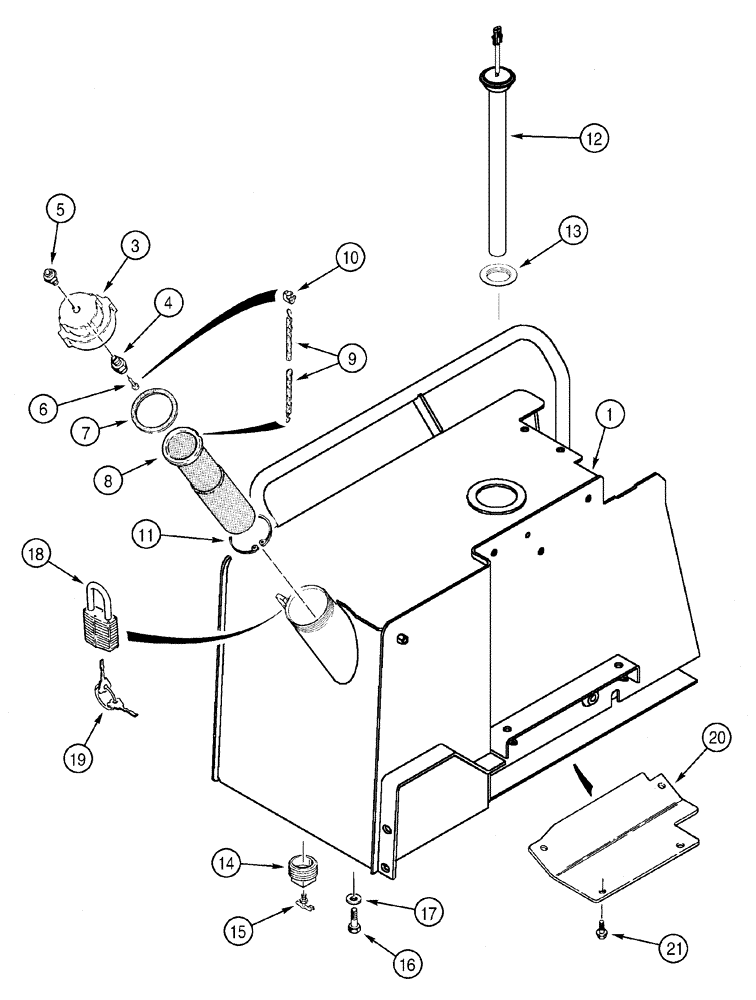

Запчасти Case 550H (3-06) - FUEL TANK (03) - FUEL SYSTEM

1

327256A2

TANK

Fuel Includes : 2 - 6

1шт.

2

R46704

BRACKET

Weld-On

1шт.

3

R57981

FILLER CAP

Fuel Includes : 4 - 6

1шт.

4

A50096

VALVE

Relief Use Loctite No. 592

1шт.

B17425

LOCTITE

No. 592, 50 ml

1шт.

5

R57888

FILTER

Use Loctite No. 592

1шт.

B17425

LOCTITE

No. 592, 50 ml

1шт.

6

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

Use Loctite No. 242

1шт.

B17577

LOCTITE

No. 242, 6 ml

1шт.

7

R49868

GASKET,72mm ID x 90mm OD x 3mm Thk

Seal, Rubber

1шт.

8

R51771

STRAINER ASSY.

1шт.

9

R47786

CHAIN (CE)

241 mm (9-1/2 in)

1шт.

10

R48634

FASTENER

Hook

1шт.

11

103-21300

SNAP RING,3.00", Int, #300

1шт.

12

326276A1

SENSOR

Fuel Level

1шт.

13

255095A1

GROMMET

1шт.

14

R27578

PLUG

Drain Use Loctite No. 592

1шт.

B17425

LOCTITE

No. 592, 50 ml

1шт.

15

217-81

VALVE

Drain, 1/8 PT Use Loctite No. 271

1шт.

B17500

LOCTITE

No. 271, 6 ml

1шт.

16

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

17

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

18

D93753

PADLOCK

Includes : 19

1шт.

19

R29555

KEY

For Master Padlock Only

2шт.

19

D93751

SET OF 2 KEYS

Yale Padlock Only

2шт.
