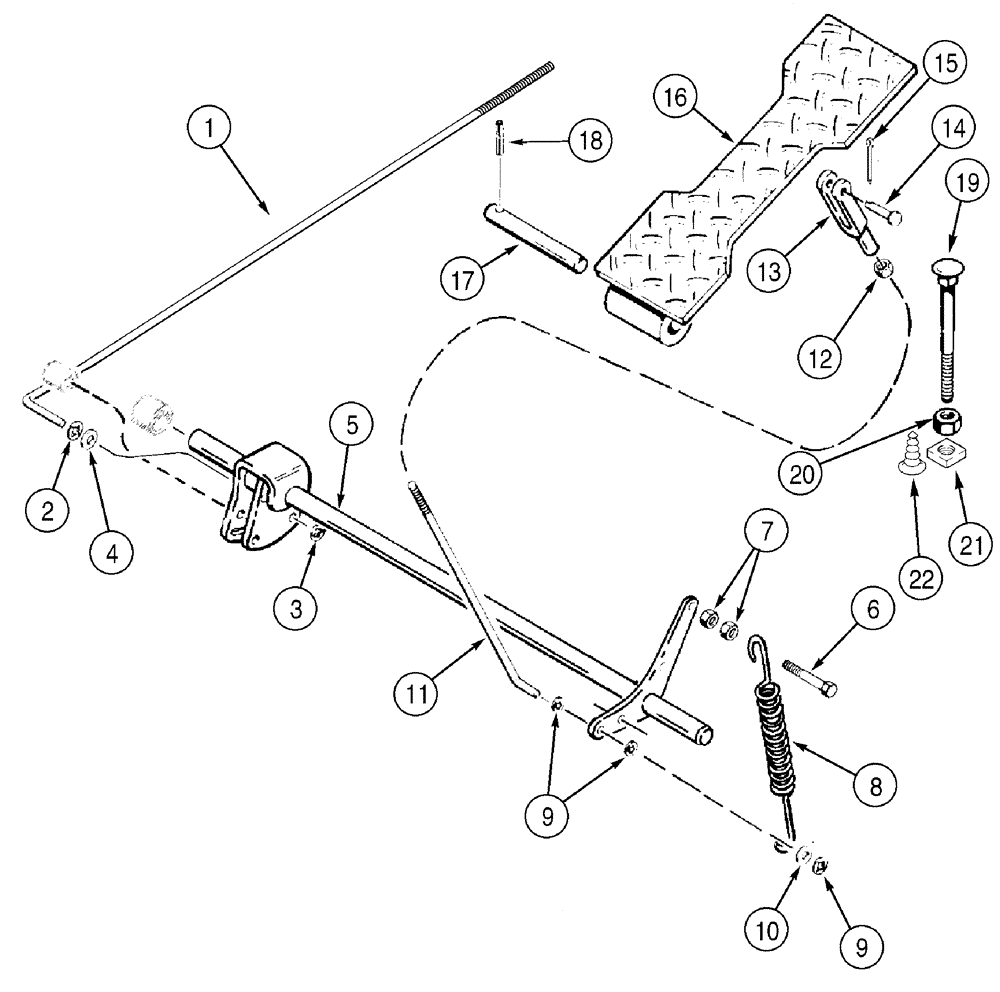

Запчасти Case 550H (3-05) - CONTROLS, THROTTLE - PEDAL, DECELERATOR, MODELS WITH DECELERATOR (03) - FUEL SYSTEM

1

257302A1

ROD

Control Shaft to Injection Pump

1шт.

2

100-1431

SNAP RING,#31, Ext

1шт.

3

100-1425

SNAP RING,#25, Ext

1шт.

4

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

4-1шт.

5

R58612

SHAFT

Cross

1шт.

6

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.

7

425-104

NUT,1/4"-20, Cl 5

2шт.

8

R36912

SPRING

1шт.

9

100-1431

SNAP RING,#31, Ext

3шт.

10

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

11

R58646

ROD

1шт.

12

425-115

NUT,5/16"-24, G5

1шт.

13

213-125

ADJUSTABLE CLEVIS,5/16" - 32

1шт.

14

D149287

PIN,7.9mm OD x 26.72mm L

Clevis

1шт.

15

432-612

COTTER PIN,3/32" x 3/4"

1шт.

16

R57935

PEDAL

Decelerator

1шт.

17

R17364

SHAFT

1шт.

18

38-11016

LOCK PIN,5/32" x 1", Slotted

1шт.

19

411-864

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 4", Gr 2

Bolt, Carriage 1/2 x 4; 2

1шт.

20

425-108

NUT,1/2" - 13, Gr 5

1шт.

21

224-2808

SQUARE NUT,Sq, 1/2"-13, G2, Hvy

Models without Turbocharger

1шт.

22

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer Models Without Turbocharger

1шт.
