Запчасти Case 550H (3-02) - CONTROLS, THROTTLE - SHAFT, CROSS AND CONTROL ROD, MODELS WITHOUT TURBOCHARGER (03) - FUEL SYSTEM

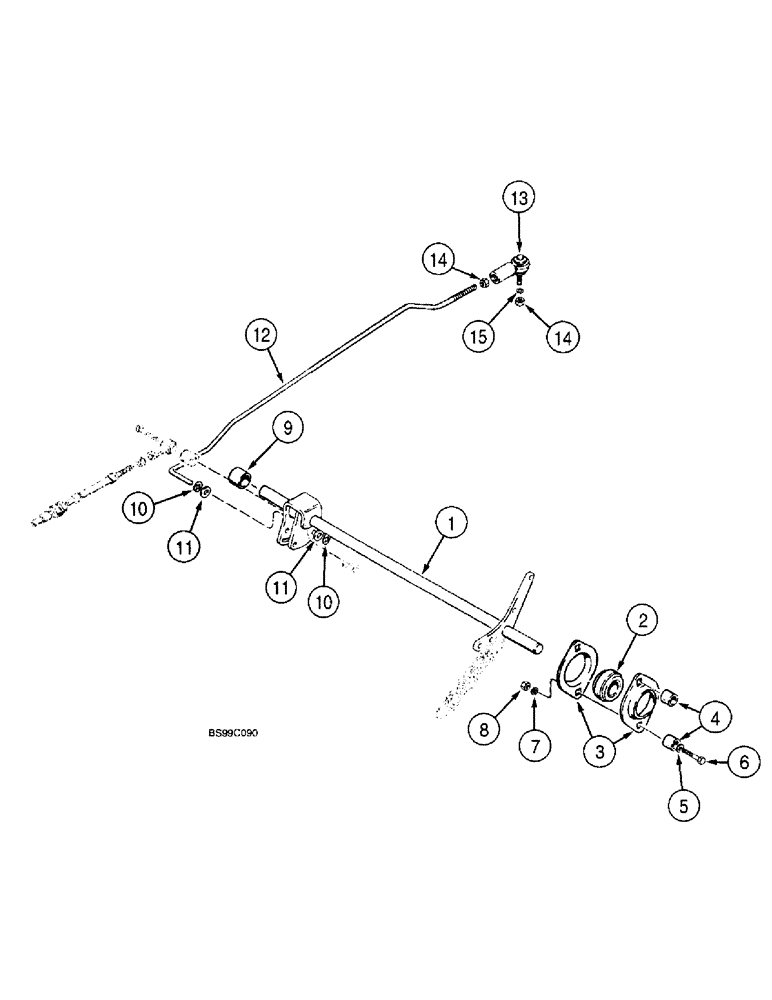

Схема запчастей Case 550H - (3-02) - CONTROLS, THROTTLE - SHAFT, CROSS AND CONTROL ROD, MODELS WITHOUT TURBOCHARGER (03) - FUEL SYSTEM
6
13
12
3
2
5
10
1
8
7
14
15
11
14
9
4
11
10

Артикул

Название

Примечание

Количество

1

R58612

SHAFT

Cross

1шт.

2

468390R92

BALL BEARING,0.6255" ID x 40 mm OD x 0.75"

Ball

2шт.

3

F13526

FLANGED BEARING

4шт.

4

D34162

SPACER

Spacer

4шт.

5

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

4шт.

6

492-11025

LOCK WASHER,1/4"

4шт.

7

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

4шт.

8

425-104

NUT,1/4"-20, Cl 5

4шт.

9

1334638C1

SPACER

1шт.

10

100-1425

SNAP RING,#25, Ext

2шт.

11

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

2шт.

12

335999A2

ROD

Control Accelerator Shaft to Injection Pump

1шт.

13

A10329

BALL JOINT,1/4" - 28 x 1"

1/4 NF

1шт.

14

425-114

NUT,1/4"-28, G5

2шт.

15

492-11025

LOCK WASHER,1/4"

1шт.

Выбрано товаров: 15
