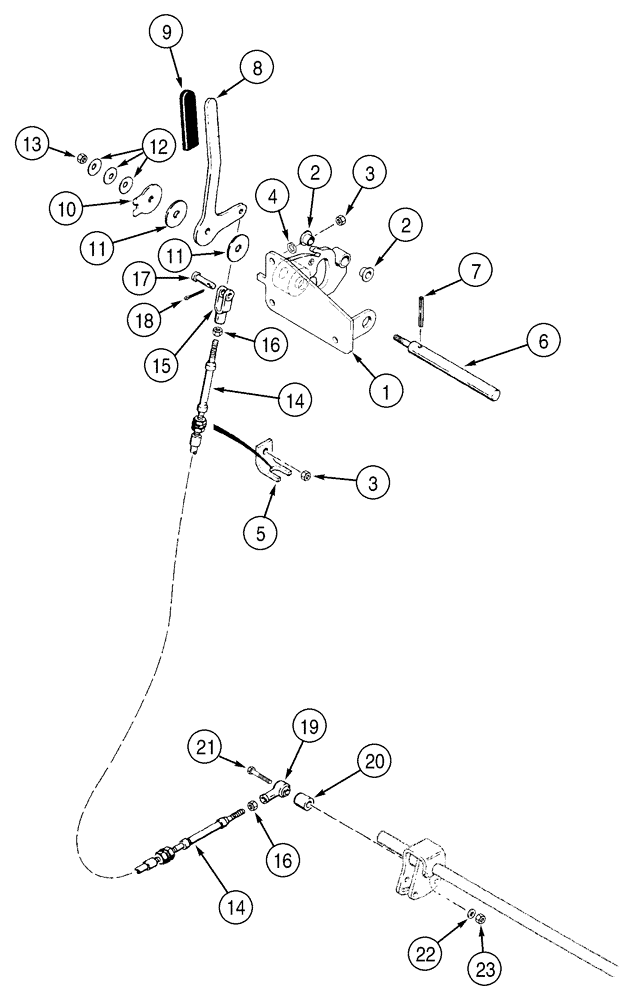

Запчасти Case 550H (3-01) - CONTROLS, THROTTLE - CABLE AND HAND LEVER (03) - FUEL SYSTEM

1

106584A2

BRACKET

Throttle and Transmission Controls Includes : 2

1шт.

2

R58311

BRONZE BUSHING

Bushing Bronze

2шт.

3

231-1446

NUT,3/8" - 16, Gr 5

4шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

3шт.

5

CASR52478

BRACKET

1шт.

6

R57937

SHAFT

Lever

1шт.

7

38-11632

LOCK PIN,1/4" x 2", Slotted

1шт.

8

R57933

LEVER

Control Throttle

1шт.

9

R52376

MOLDING

Grip

1шт.

10

R57932

LARGE PLATE

PLATE, LARGE

1шт.

11

R52389

DISC

Friction

2шт.

12

R58742

WASHER

Belleville

3шт.

13

231-1446

NUT,3/8" - 16, Gr 5

1шт.

14

R57954

CABLE

Throttle

1шт.

15

213-125

ADJUSTABLE CLEVIS,5/16" - 32

1шт.

16

425-115

NUT,5/16"-24, G5

2шт.

17

D149287

PIN,7.9mm OD x 26.72mm L

Clevis

1шт.

18

432-612

COTTER PIN,3/32" x 3/4"

1шт.

19

R47498

END

Ball Joint

1шт.

20

F13386

SPACER

1шт.

21

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

22

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

23

231-1445

NUT,5/16"-18, GB

1шт.
