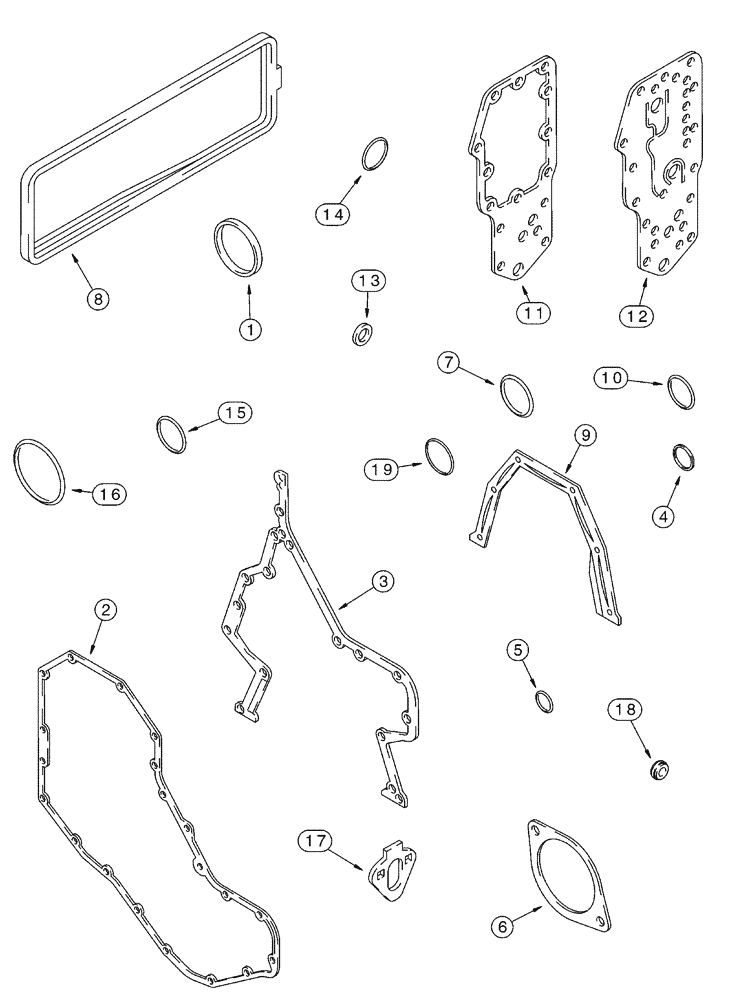

Запчасти Case 550H (2-30) - GASKET KIT, 4-390/4T-390 EMISSIONS CERTIFIED ENGINE, CYLINDER BLOCK (02) - ENGINE

A77864

SEAL PACKAGE

Consists Of : 1 - 19

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

See Figure (s) : 2-10, 2-11

1шт.

2

J918673

GASKET,1.02mm Thk

See Figure(s) : 2-11

1шт.

3

J931351

GASKET

Housing See Fgirue(s) : 2-10, 2-11

1шт.

4

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING See Figure(s) : 2-10, 2-11

1шт.

5

J913994

O-RING

See Figure(s) : 2-10, 2-11

1шт.

6

J929751

GASKET

Plate See Figure(s) : 2-10, 2-11

1шт.

7

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

See Figure(s) 2-09

1шт.

8

J283767

GASKET,7.4mm Thk

Cover See Figure(s) : 2-22, 2-23

1шт.

9

J928493

GASKET

Mounting See Figure(s) : 2-24

1шт.

10

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID See Figure(s) : 2-22, 2-23

1шт.

11

J942914

GASKET

Mounting See Figure(s) : 2-16

1шт.

12

J929792

GASKET,1.2mm Thk

Mounting See Figure (s) : 2-16

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

See Figure(s) : 2-17

1шт.

14

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 mm ID Not Used In This Application

1шт.

15

J929457

O-RING

23/32 ID x 7/64 See Figure(s) : 2-16

1шт.

16

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING See Figure(s) : 2-25

1шт.

17

J931059

GASKET

Mounting See Figure(s) : 3-09, 3-12

1шт.

18

J928759

SEALING WASHER

See Figure(s) : 2-22, 2-23

4шт.

19

J935032

SEAL

80 mm ID, See Figure(s) : 3-14

1шт.
