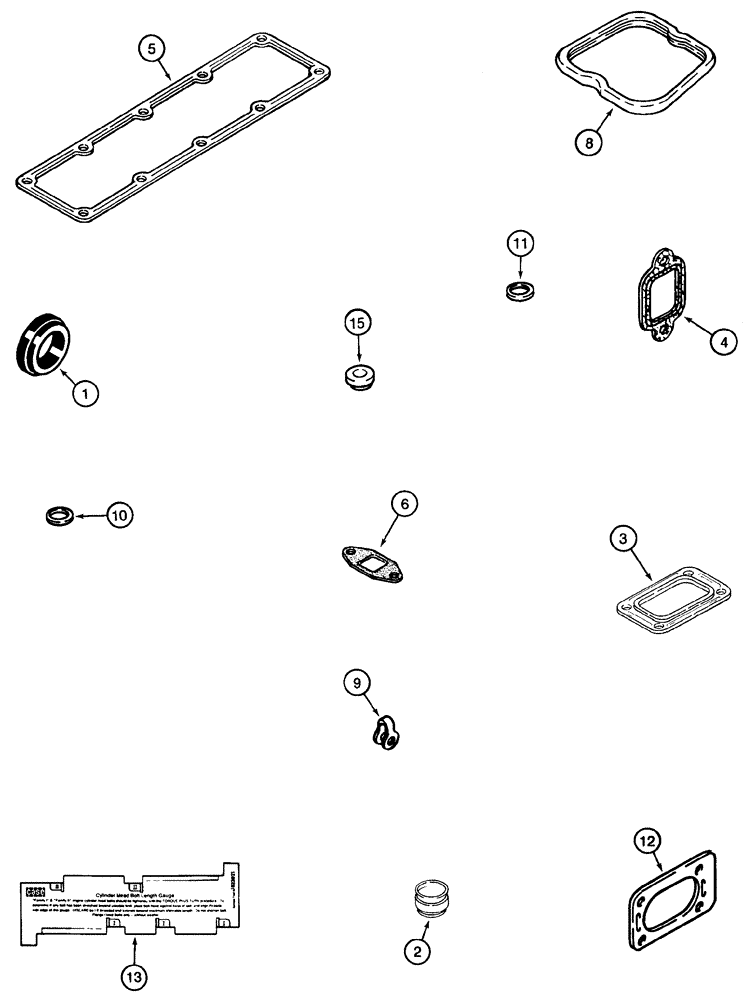

Запчасти Case 550H (2-29) - GASKET KIT, 4T-390 EMISSIONS CERTIFIED ENGINE, VALVE GRIND (02) - ENGINE

A77870

SEAL PACKAGE

Consists Of : 1 - 15

1шт.

1

J923331

GASKET

Housing See Figure(s) : 2-18

1шт.

2

J921640

SEAL

See Figure(s) : 2-20

8шт.

3

J919369

GASKET,0.5mm Thk

Mounting See Figure(s) : 2-14

1шт.

4

J905443

MANIFOLD GASKET

Manifold See Figure(s) : 2-13

4шт.

5

J938153

MANIFOLD GASKET,0.8mm Thk

Manifold See Figure(s) : 2-13

1шт.

6

J931350

GASKET

Mounting See Figure(s) : 2-14

1шт.

8

J930906

GASKET

See Figure(s) : 2-18

4шт.

9

J903380

SEAL

See Figure(s) : 3-11

4шт.

10

J906659

SEAL

1,5 mm See Figure(s) : 3-11, 3-15

4шт.

11

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

See Figure(s) : 3-15

4шт.

12

J914856

GASKET,1.02mm Thk

Mounting Not Used In This Application

1шт.

13

J823921

GAUGE

1шт.

15

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

See Figure(s) : 2-18

4шт.
