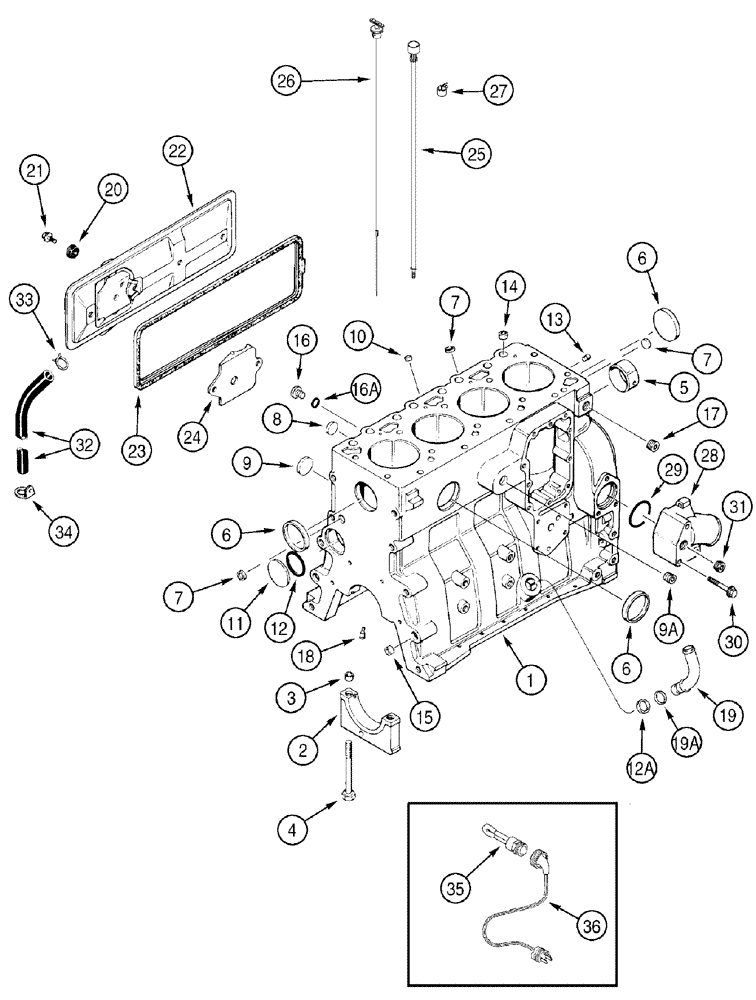

Запчасти Case 550H (2-23) - CYLINDER BLOCK, 4T-390 EMISSIONS CERTIFIED ENGINE, ENGINE BLOCK HEATER 120V, 240V, REPAIR KIT (02) - ENGINE

348711A1

Engine Assy Complete Engine Less : Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe Order : 234277A2

1шт.

234277A2

BASIC ENGINE

Less : Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley, Belt Tensioner, Turbocharger and Aftercooler; See Note

1шт.

234277A2R

REMAN-BASIC ENGINE

Remanufactured Basic Engine Assembly, assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts

1шт.

234277A2C

CORE-BASIC ENGINE

Return Part Number

1шт.

J933236

SHORT ENGINE

With: Stripped Block, Pistons, Connecting Rods and Bearings Crankshaft and Bearings Consists Of : 1 - 8

1шт.

JR933236

REMAN-SHORT ENGINE

Remanufactured

1шт.

JC933236

CORE-SHORT ENGINE

Return Part Number

1шт.

1

87444172

BLOCK ASSY.

Stripped Consists Of : 2 - 8 Order : J933220

1шт.

2

J903492

BEARING CAP

Cap Includes : J900068

5шт.

3

J900068

BEARING WASHER

18 mm OD

10шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

10шт.

5

REF

INSTRUCTION

Bushing Front See Figure (s) : 2-21

1шт.

6

A77782

PLUG

Expansion 58 mm

1шт.

7

J900956

PLUG

18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

2шт.

J933220

PACKAGE,SERVICE

Block Consists Of : 9 - 18

1шт.

9

J900958

PLUG

32 mm OD

2шт.

9a

A77505

PLUG

3/4 PT

1шт.

10

J900955

PLUG

10 mm OD

3шт.

11

172599

PLUG,Exp, 2 3/8"

60 mm OD Includes : 12

1шт.

12

J926047

O-RING,0.07" Thk x 2.239" ID

O-Ring 57 mm ID

1шт.

12a

J920706

PLUG

Expansion, 22 mm Not Used In This Application.

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

14

J902343

DOWEL

Ring 16 mm OD

2шт.

15

J900068

BEARING WASHER

Ring 18 mm OD

2шт.

16

J678923

PLUG,M10 x 1

Hex Socket, 10 mm Includes : 16A

3шт.

16a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

17

A77429

PLUG

1/2 PT

1шт.

17a

J678921

PLUG

Hex Socket, 14 mm Not Used In This Application Includes : 17B Not Illustrated

1шт.

17b

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

17c

J932296

PLUG

Not Used In This Application Includes : 17D Not Illustrated

1шт.

17d

J330478

O-RING,0.07" Thk x 0.676" ID

1шт.

17e

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

Not Used In This Application Not Illustrated

1шт.

18

J930139

NOZZLE CAP

4шт.

19

J931973

TUBE,0.875" OD

Used With : 19A

1шт.

19a

J931824

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

O-Ring

1шт.

20

J928759

SEALING WASHER

4шт.

21

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

22

J925680

COVER

1шт.

23

J283767

GASKET,7.4mm Thk

Cover

1шт.

24

J907586

BAFFLE

1шт.

25

319805A2

TUBE,12.7 mm OD, 907.5 mm Length

Tube

1шт.

26

319806A2

DIPSTICK

1шт.

27

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

28

J934877

HYD CONNECTOR

1шт.

29

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-Ring 50 mm ID

1шт.

30

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

3шт.

31

A77429

PLUG

1/2 PT

2шт.

32

J918612

TUBE,360.00 mm

1шт.

33

J904230

CLAMP,25.4mm

1шт.

34

J928989

CLIP

1шт.

309651A1

KIT

Coolant Heater, 120V Consists Of : 35, 36, engine block

1шт.

35

NSS

NOT SOLD SEPARAT

Element Replaces : A77505, engine block heater 120 volt

1шт.

36

196466A1

ELECTRIC CABLE

1829 mm (72 in), engine block heater 120 volt

1шт.

309652A1

KIT

Coolant Heater, 240V Consists Of : 35, 36, engine block 120 volt

1шт.

35

NSS

NOT SOLD SEPARAT

Element Replaces : A77505, engine block heater 120 volt

1шт.

36

J905114

ELECTRIC CABLE

1829 mm (72 in), engine block heater 120 volt

1шт.

A77887

PACKAGE,SERVICE

Consists Of : 37 - 44 Not Illustrated, engine block heater 120 volt

1шт.

37

J802747

PISTON & RINGS KIT,100MM PISTON DIAMETER

See Figure(s) : 2-27, engine block heater 120 volt

4шт.

38

J919053

PISTON PIN

See Figure(s): 2-27, engine block heater 120 volt

4шт.

39

A77465

BEARING SET

See Figure(s) : 2-27, engine block heater 120 volt

4шт.

40

A77405

CRANKSHAFT BEARING

See Figure(s) : 2-24, engine block heater 120 volt

4шт.

41

A77896

BEARING SET

See Figure(s) : 2-24, engine block heater 120 volt

1шт.

42

A77870

SEAL PACKAGE

See Figure(s) : 2-29, engine block heater 120 volt

1шт.

43

J283333

CYLINDER HEAD GASKET,2.32mm Thk

Cyl. Head See Figure(s) : 2-18, engine block heater 120 volt

1шт.

44

A77673

GASKET KIT

See Figure(s) : 2-17, engine block heater 120 volt

1шт.
