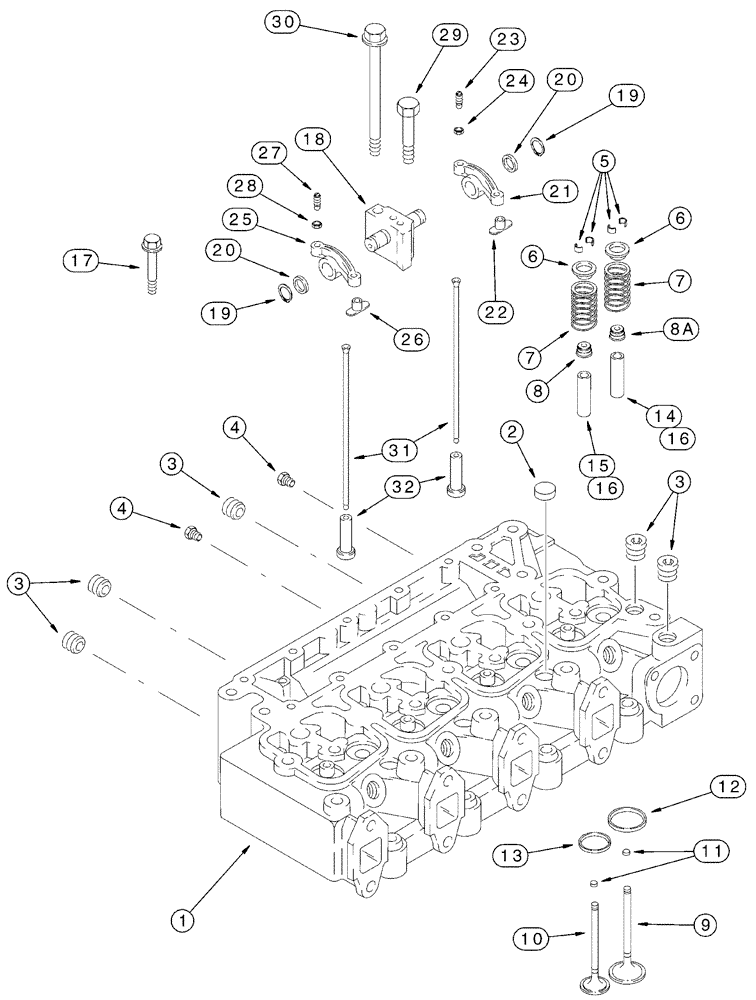

Запчасти Case 550H (2-19) - CYLINDER HEAD, VALVE MECHANISM, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

JR933494

REMAN-CYLINDER HEAD

North America Only

1шт.

JC929736

CORE-CYLINDER HEAD

Return Number

1шт.

J933494

HEAD (CYLINDER)

Consists Of : 1 - 10

1шт.

1

J933419

HEAD (CYLINDER)

Consists Of : 2

1шт.

2

A77783

PLUG

Expansion 21 mm OD

3шт.

3

217-466

DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF

5шт.

4

J906619

PLUG,1/8" - 27

Hex 1/8 PT

2шт.

5

J900250

SCREW

16шт.

6

J935038

RETAINER

8шт.

7

J932453

SPRING

8шт.

8

J921640

SEAL

4шт.

8a

J921640

SEAL

4шт.

9

J920867

VALVE

Intake

4шт.

10

J920868

VALVE

Exhaust

4шт.

11

J280911

WEAR PAD

Intake And Exhaust Service Repair Only

1шт.

12

J906854

SEAT, VALVE

Intake Service Repair Only

4шт.

13

J904105

SEAT, VALVE

Exhaust Service Repair Only

4шт.

14

J904408

GUIDE

14 mm OD Intake Service Repair Only Ream To Fit

4шт.

15

J904409

GUIDE

14 mm OD Exhaust Service Repair Only Ream To Fit

4шт.

16

J906206

GUIDE

11 mm OD Intake And Exhaust Service Repair Only Ream To Fit

8шт.

17

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

70 mm

4шт.

17

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

120 mm

10шт.

18

J922488

SUPPORT

4шт.

19

J900242

SNAP RING

8шт.

20

J900245

WASHER

8шт.

21

J910811

ROCKER

Arm Assy Consists Of : 22 - 24

4шт.

22

NSS

NOT SOLD SEPARAT

Insert

1шт.

23

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

1шт.

24

A77902

NUT

Special 3/8 - 24 NF

1шт.

25

J910810

ROCKER

Arm Assy Consists Of : 26 - 28

4шт.

26

NSS

NOT SOLD SEPARAT

Insert

1шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

1шт.

28

A77902

NUT

Special 3/8 - 24 NF

1шт.

29

J901221

BOLT

M8 x 75

4шт.

30

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

180 mm

4шт.

31

J284377

PUSH ROD

8шт.

32

J931623

TAPPET

8шт.
