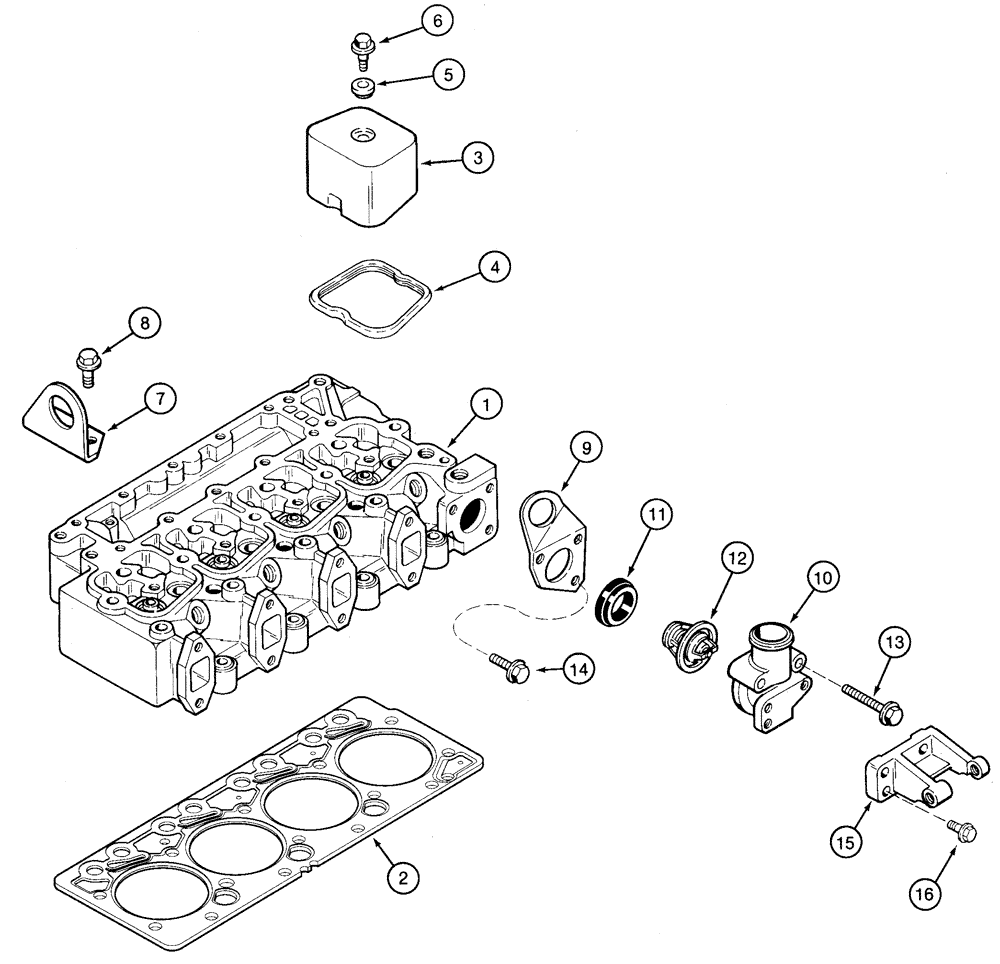

Запчасти Case 550H (2-18) - CYLINDER HEAD, COVER, 4-390/4T-390 EMISSIONS CERTIFIED ENGINE, THERMOSTAT AND HOUSING (02) - ENGINE

1

REF

INSTRUCTION

Head 4-390 See Figure(s) : 2-19

1шт.

1

REF

INSTRUCTION

Head 4T-390 See Figure(s) : 2-20

1шт.

2

J283333

CYLINDER HEAD GASKET,2.32mm Thk

Cyl. Head

1шт.

2

J283336

GASKET

Cyl. Head 0,25 mm

1шт.

2

J283338

GASKET

Cyl. Head 0,50 mm

1шт.

3

J928404

COVER

4шт.

4

J930906

GASKET

4шт.

5

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

4шт.

6

J907049

BOLT,Hex

Flange M8 x 21

4шт.

7

J908118

BRACKET

1шт.

8

854-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

2шт.

9

J903757

BRACKET

thermostat and housing

1шт.

10

J914409

HOUSING

thermostat

1шт.

A77736

THERMOSTAT

Thermostat Consists Of : 11, 12, housing

1шт.

11

J923331

GASKET

Housing, thermostat

1шт.

12

NSS

NOT SOLD SEPARAT

Thermostat and housing

1шт.

13

J926972

FLANGE BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

Bolt M8 x 70 mm, thermostat and housing

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

Thermostat and housing

1шт.

15

J923387

SUPPORT

thermostat and housing

1шт.

16

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

Thermostat and Housing

3шт.
