Запчасти Case 550H (2-17) - OIL PUMP, PAN - HEATER, 4-390/4T-390 EMISSIONS CERTIFIED ENGINE, ENG. OIL HEATER, 120V, 240V (02) - ENGINE

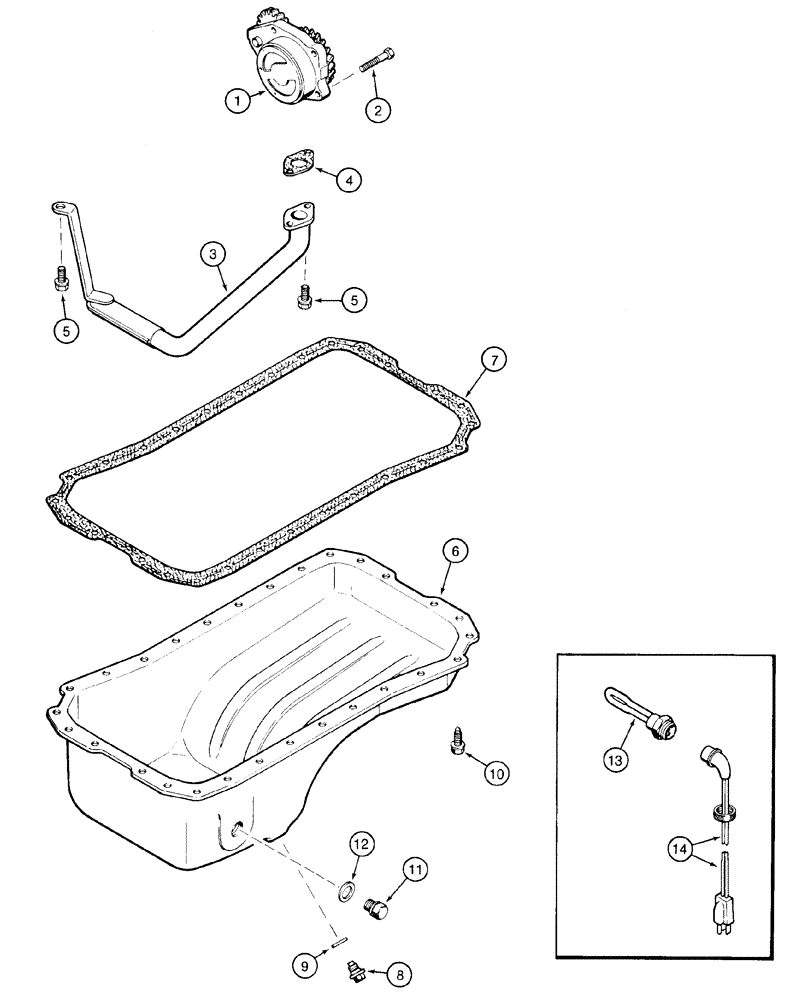

Схема запчастей Case 550H - (2-17) - OIL PUMP, PAN - HEATER, 4-390/4T-390 EMISSIONS CERTIFIED ENGINE, ENG. OIL HEATER, 120V, 240V (02) - ENGINE
9
6
10
5
13
3
12
1
4
2
14
7
8
5
11

Артикул

Название

Примечание

Количество

1

J932449

PUMP, ENGINE OIL

4-390

1шт.

1

JR937028

REMAN-ENG OIL PUMP

550H (12/99), Reman For New P/N J932449

1шт.

1

JC937028

CORE-ENGINE OIL PUMP

Return Number

1шт.

1

J930336

PUMP, ENGINE OIL

4T-390

1шт.

1

JR930336

REMAN-ENG OIL PUMP

4T-390 Remanufactured Oil Pump

1шт.

1

JC926202

CORE-ENGINE OIL PUMP

Return Number

1шт.

2

J900677

BOLT,Hex

M8 x 30

4шт.

3

J920795

TUBE,1 mm OD x 265.7 mm L

1шт.

4

J931349

GASKET

Mounting

1шт.

5

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.

6

J901049

PAN, ENGINE OIL

PAN, OIL

1шт.

7

NSS

NOT SOLD SEPARAT

Gasket, Pan Order : A77673

1шт.

8

J924147

PLUG,M18 x 1.5

Hex M18

1шт.

9

J920773

SEALING WASHER

1шт.

10

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

M8 x 25

28шт.

11

J924148

PLUG,M22 x 1.5

Hex M22

1шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

A77673

GASKET KIT

Consists Of : 4, 7, 9

1шт.

A77490

KIT

120V Heater, Consists Of : 13, 14 Also Order : J902425, engine oil heater, 120 volt

1шт.

13

NSS

NOT SOLD SEPARAT

Element, engine oil heater 120 volt

1шт.

14

196466A1

ELECTRIC CABLE

1829 mm (72 in), engine oil heater 120 volt

1шт.

13

J904381

RESISTOR

240V, engine oil heater 120 volt

1шт.

14

J905114

ELECTRIC CABLE

1829 mm (72 in) Also Order : J902425, engine oil heater 120 volt

1шт.

Выбрано товаров: 23
