Запчасти Case 550H (2-16) - FILTER AND COOLER, OIL, 4-390/4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

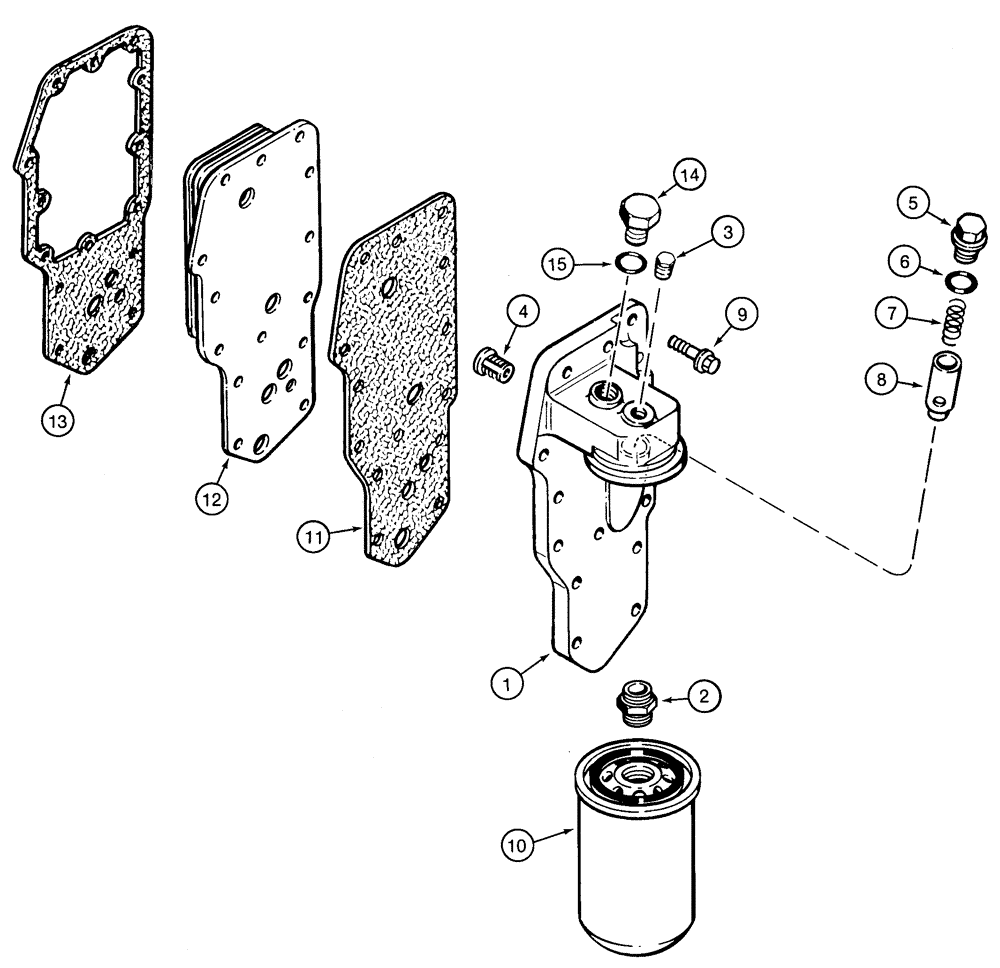

Схема запчастей Case 550H - (2-16) - FILTER AND COOLER, OIL, 4-390/4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
14
8
6
1
2
10
7
12
11
9
3
15
4
13
5

Артикул

Название

Примечание

Количество

J918954

HEAD

Consists Of : 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

Head

1шт.

2

J909355

ADAPTER

1шт.

3

J906619

PLUG,1/8" - 27

Hex 1/8 PT

1шт.

4

J933615

VALVE

Press. Relief

1шт.

5

J915787

PLUG

1шт.

6

J929457

O-RING

23/32 ID x 7/64

1шт.

7

J918427

SPRING

1шт.

8

J918428

PLUNGER

1шт.

9

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

14шт.

10

J908616

ENGINE OIL FILTER,Single pkg qty. For multi pkg [qty.12] order J908616MP

Oil

1шт.

10

J934429

ENGINE OIL FILTER

Oil Premium

1шт.

11

J929792

GASKET,1.2mm Thk

Mounting

1шт.

12

J921557

COOLER

Oil

1шт.

13

J942914

GASKET

Mounting

1шт.

14

J919686

PLUG

12 mm

1шт.

15

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

Выбрано товаров: 17
