(2-12) - MANIFOLDS, 4-390 EMISSIONS CERTIFIED ENGINE, EXHAUST, INTAKE

Запчасти Case 550H (2-12) - MANIFOLDS, 4-390 EMISSIONS CERTIFIED ENGINE, EXHAUST, INTAKE (02) - ENGINE

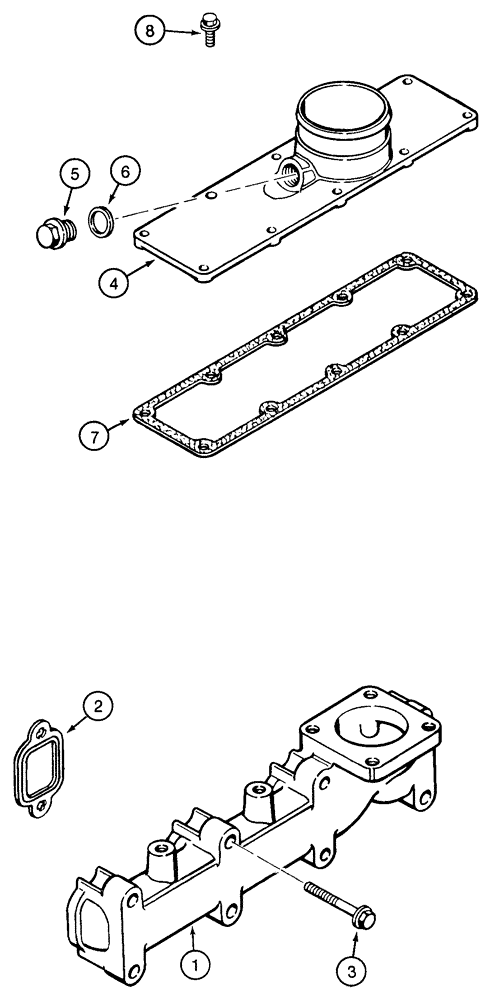

Схема запчастей Case 550H - (2-12) - MANIFOLDS, 4-390 EMISSIONS CERTIFIED ENGINE, EXHAUST, INTAKE (02) - ENGINE
2
7
3
1
4
8
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J901223

MANIFOLD

exhaust

1шт.

2

J905443

MANIFOLD GASKET

Manifold, exhaust

4шт.

3

J930249

FLANGE BOLT,Hex, M10 x 1.5 x 65mm

10 x 65 mm, exhaust

8шт.

A77415

COVER

Kit Consists Of : 4 - 6, intake

1шт.

4

J904340

COVER

intake

1шт.

5

J907185

PLUG

intake

1шт.

6

J906773

WASHER

intake

1шт.

7

J931605

BOLT

Manifold, intake

1шт.

8

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

Intake

10шт.
