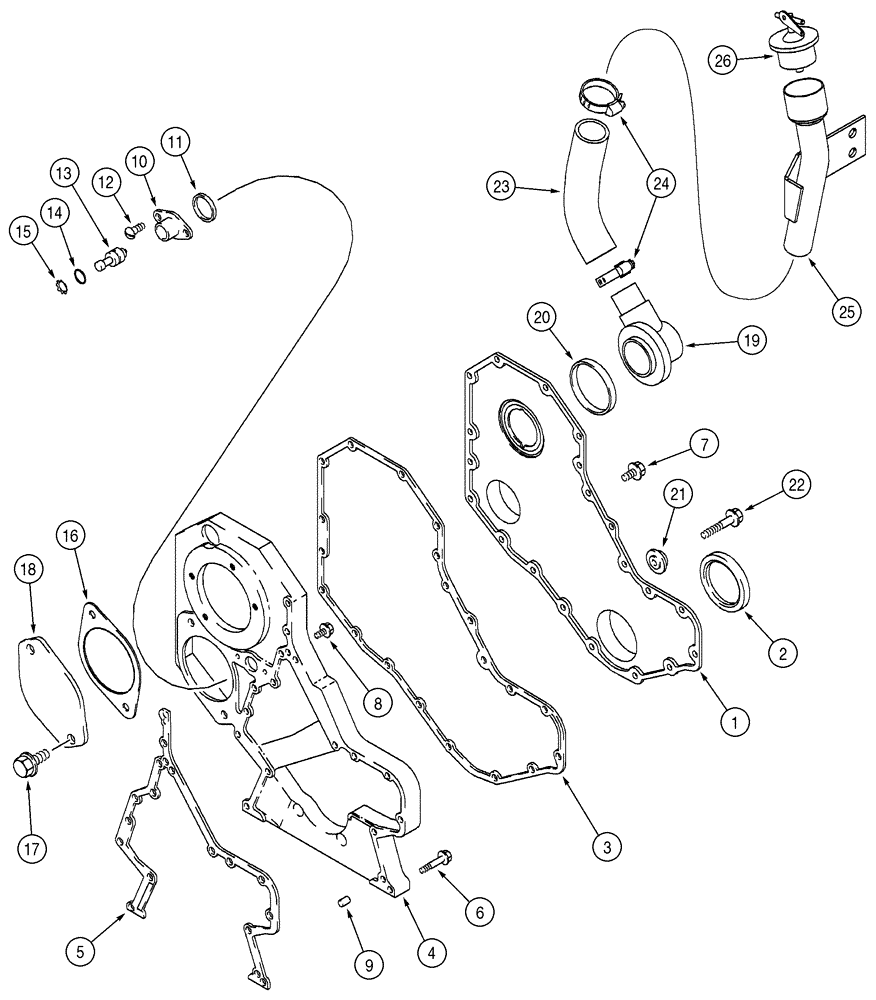

Запчасти Case 550H (2-11) - GEAR COVER, FRONT, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

J918675

COVER

1шт.

2

NSS

NOT SOLD SEPARAT

Seal Order : A77889, A77890 See Figure(s) : 2-24

1шт.

3

J918673

GASKET,1.02mm Thk

1шт.

4

J932120

HOUSING

1шт.

5

J931351

GASKET

Housing

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

10шт.

7

J924962

FLANGE BOLT

Flange M8 x 16

8шт.

8

J924962

FLANGE BOLT

Flange M8 x 16

5шт.

9

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

10

J919683

HOUSING

1шт.

11

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING

1шт.

12

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

13

J903924

PIN,18.87mm OD x 55mm L

1шт.

14

J913994

O-RING

1шт.

15

100-2587

SNAP RING,0.875", Int, #87

1шт.

16

J929751

GASKET

Plate

1шт.

17

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

18

J914868

COVER

Plate

1шт.

19

J924595

CONNECTOR, ELEC

CONNECTOR

1шт.

20

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

21

J912772

RETAINER

1шт.

22

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

1шт.

23

378974A1

HOSE,38.10 mm ID x 225.00 mm, SAE 20R1

1шт.

24

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

25

380454A1

PIPE

Oil Fill

1шт.

26

L115504

CAP

1шт.
