(2-08) - MUFFLER - EXHAUST SYSTEM, MODELS WITH TURBOCHARGER

Запчасти Case 550H (2-08) - MUFFLER - EXHAUST SYSTEM, MODELS WITH TURBOCHARGER (02) - ENGINE

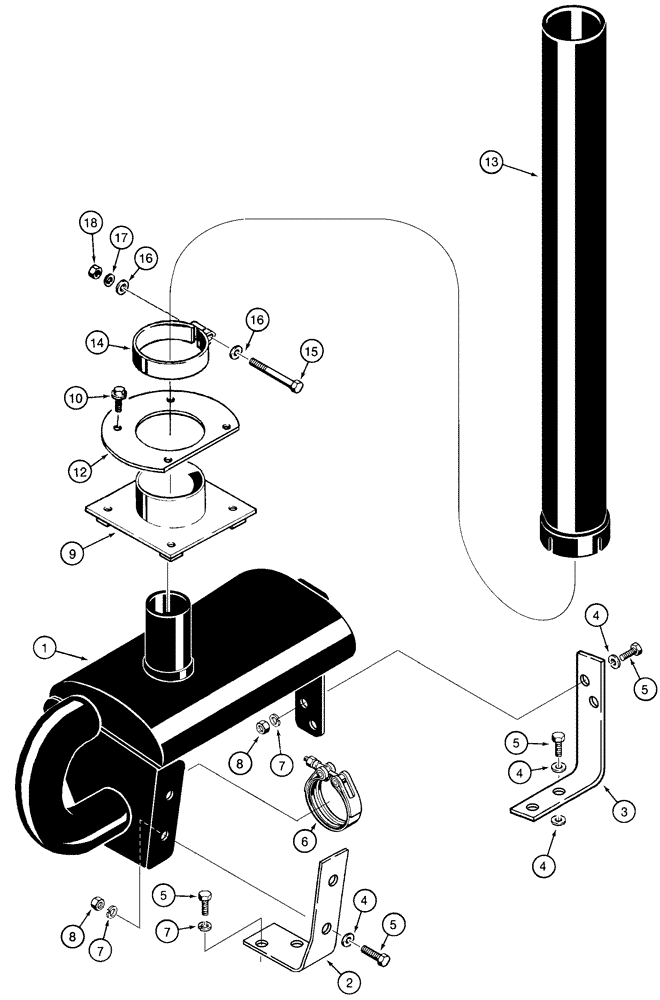

Схема запчастей Case 550H - (2-08) - MUFFLER - EXHAUST SYSTEM, MODELS WITH TURBOCHARGER (02) - ENGINE
10
7
5
8
5
14
13
12
4
9
5
1
3
4
5
7
2
16
17
7
18
4
16
6
8
15
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

301320A1

MUFFLER

1шт.

2

303371A1

BRACKET

Front

1шт.

3

303372A1

BRACKET

Rear

1шт.

4

496-41041

WASHER,13/32" x 1 1/8" x .134"

8шт.

5

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

8шт.

6

A170467

CLAMP,72mm ID

Includes Hardware

1шт.

7

892-11010

LOCK WASHER,M10

6шт.

8

825-1010

NUT,M10, Cl 8

M10

4шт.

9

356927A1

MOUNTING PARTS

Bracket

1шт.

10

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

4шт.

12

315665A1

RING

Flange

1шт.

13

R50444

PIPE

Exhaust

1шт.

14

R42854

CLAMP

1шт.

15

113-2272

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

16

195-81019

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

13/32 x 13/16 x 1/16

2шт.

17

492-11038

LOCK WASHER,3/8"

1шт.

18

129-770

NUT,3/8"-16, G5

1шт.

19

102436A1

DECAL

Attention, Operating Turbocharged Engine Not Shown See Figure(s) : 9-24

1шт.
