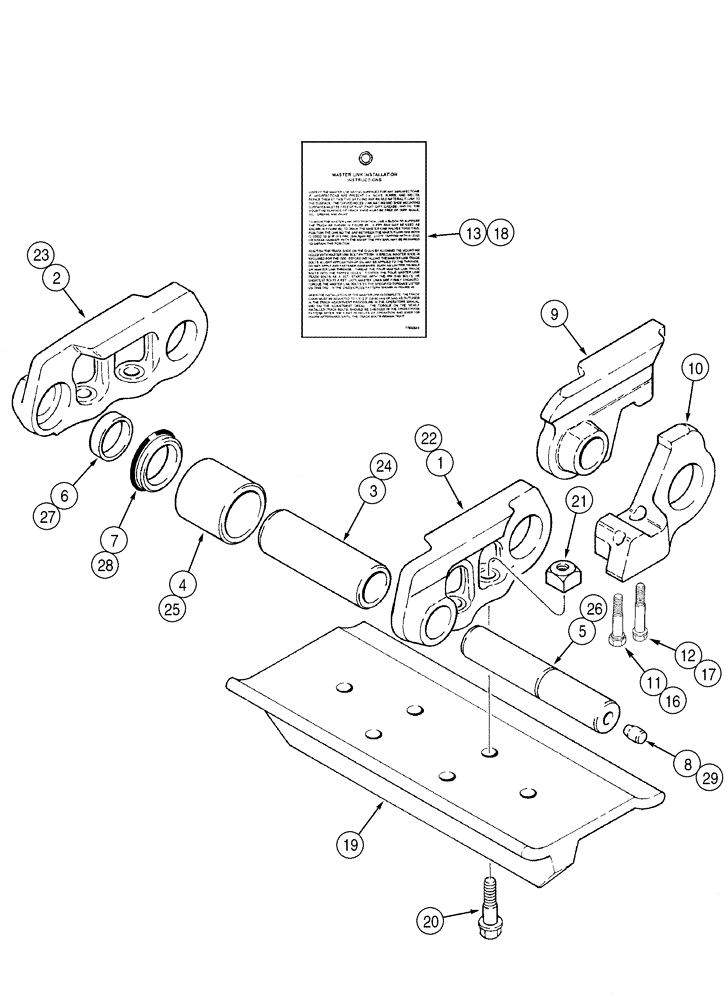

Запчасти Case 550H (5-12) - TRACK CHAIN, EXTENDED LIFE, EACH MASTER LINK HAS TWO BOLT HOLES, CHAIN UNIT KIT (11) - TRACKS/STEERING
№
Артикул
Название
Примечание
Количество
220398A1
TRACK CHAIN
Extended Life Consists Of : 1 - 18
2шт.
1
220208A1
LINK
Right Hand
36шт.
2
220207A1
LINK
Left Hand
36шт.
3
220353A1
BUSHING
47 mm (1-7/8 in) OD
37шт.
4
323874A1
BUSHING
37шт.
5
R57368
PIN
37шт.
6
R52299
SEALING RING
Spacer
74шт.
7
R52300
SEAL
74шт.
8
R54334
PLUG,16mm
37шт.
221122A1
KIT
Master Link Right Hand Consists Of : 9 - 13
1шт.
220558A1
LINK
Master Right Hand Consists Of : 9, 10
1шт.
9
NSS
NOT SOLD SEPARAT
Link Fits Over Track Pin on Outside of Regular Track Link
1шт.
10
NSS
NOT SOLD SEPARAT
Link Fits Over Bushing on Inside of Regular Track Link
1шт.
11
135984A1
BOLT
Special 54 mm (2-1/8 in)
1шт.
12
133796A1
BOLT
Special 73mm ( 2-7/8 in)
1шт.
13
178328A1
TAG
Installation Instructions
1шт.
221121A1
KIT
Master Link Left Hand Consists Of : 14 - 18
1шт.
220557A1
LINK ASSY.
Master Left Hand Consists Of : 14, 15
1шт.
14
NSS
NOT SOLD SEPARAT
Link Fits Over Track Pin on Outside of Regular Track Link Not Illustrated
1шт.
15
NSS
NOT SOLD SEPARAT
Link Fits Over Bushing on Inside of Regular Track Link Not Illustrated
1шт.
16
135984A1
BOLT
Special 54 mm (2-1/8 in)
1шт.
17
133796A1
BOLT
Special 73mm ( 2-7/8 in)
1шт.
18
178328A1
TAG
Installation Instructions
1шт.
19
339362A1
TRACK SHOE
406 mm (16 in)
74шт.
19
339364A1
TRACK SHOE
508 mm (20 in)
74шт.
19
346997A1
TRACK SHOE
660 mm (26 in)
74шт.
20
R57374
BOLT
Bolt, Special 9/16 NF x 1-25/32
288шт.
21
R57375
SQUARE NUT
Square, 9/16 NF Not Used on Master Link Bolts
288шт.
21a
345-140
SEALANT
No. 847, 1 Pint For Link Pin Bores Not Illustrated
1шт.
248111A1
KIT
Kit Includes Instructions Consists Of : 22 - 29, chain unit
1шт.
22
220208A1
LINK
Right Hand, chain unit kit
1шт.
23
220207A1
LINK
Left Hand, chain unit kit
1шт.
24
220353A1
BUSHING
47 mm (1-7/8 in) OD, chain unit kit
1шт.
25
323874A1
BUSHING
chain unit kit
1шт.
26
R57368
PIN
chain unit kit
2шт.
27
R52299
SEALING RING
Spacer, chain unit kit
4шт.
28
R52300
SEAL
chain unit kit
4шт.
29
R54334
PLUG,16mm
chain unit kit
2шт.
Выбрано товаров: 38
