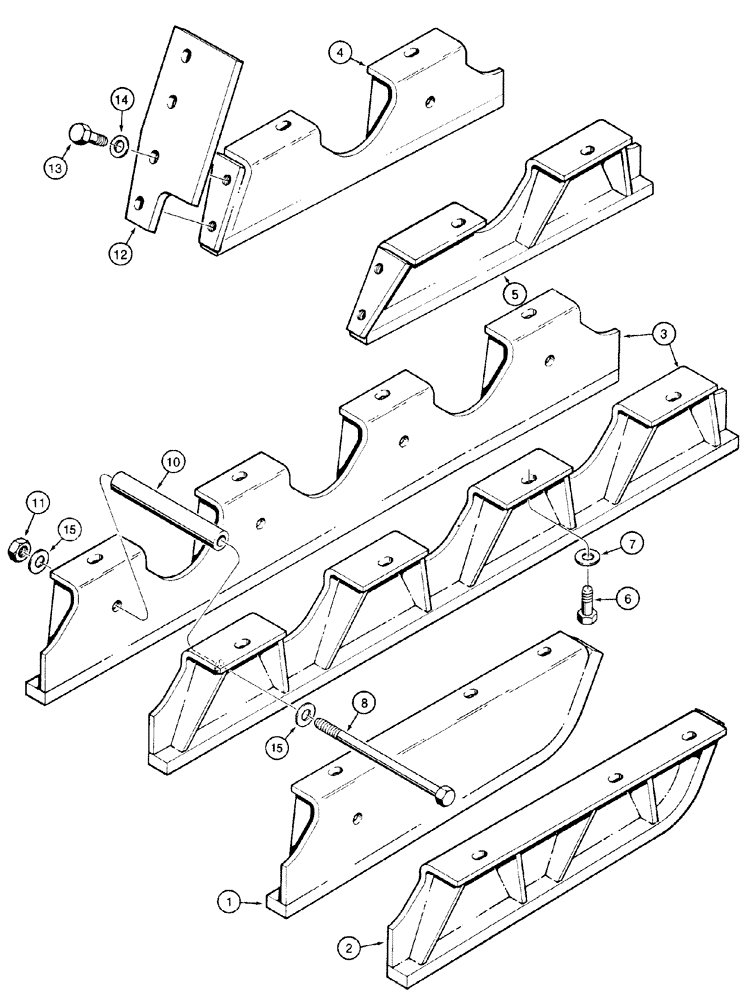

Запчасти Case 550H (5-07) - TRACK GUARDS (11) - TRACKS/STEERING

1

141195A1

GUARD

Track Front Left Hand

2шт.

2

141194A1

GUARD

Track Front Right Hand

2шт.

3

141196A1

GUARD

Track Center

4шт.

4

141197A1

GUARD

Track Rear Right Hand

2шт.

5

141198A1

GUARD

Track Rear Left Hand

2шт.

6

106-9820

LOCK BOLT,Locking, 1/2"-13 x 1 1/4", G5, Full Thd

36шт.

7

496-21053

WASHER,17/32" x 1 1/16" x .134"

36шт.

8

413-12144

BOLT,Hex, 3/4" - 10 x 9", Gr 5

3/4 x 9

8шт.

10

141188A1

SPACER

8шт.

11

231-41112

LOCK NUT,3/4"-10, GB

8шт.

12

R57458

COVER

Shield, Protective Rear

4шт.

13

106-9820

LOCK BOLT,Locking, 1/2"-13 x 1 1/4", G5, Full Thd

16шт.

14

496-21053

WASHER,17/32" x 1 1/16" x .134"

16шт.

15

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

Special

16шт.
