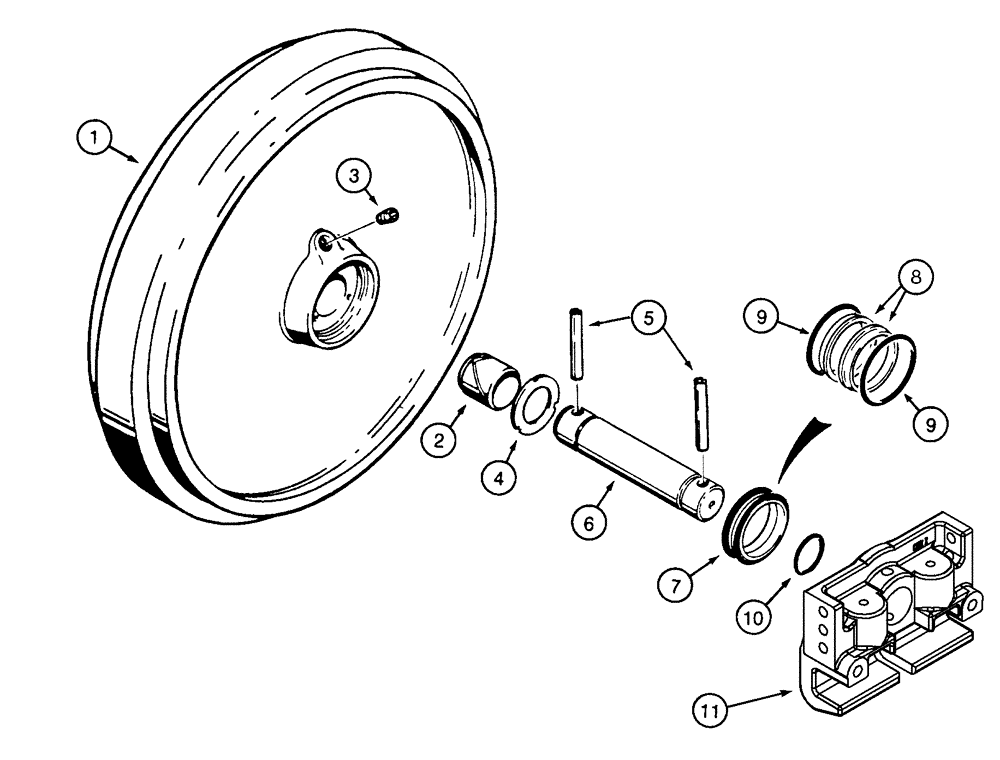

Запчасти Case 550H (5-05) - TRACK IDLER (11) - TRACKS/STEERING

389164A2

FRONT IDLER

Consists Of : 1 - 11; Replaces 329712A1, 389164A1

2шт.

1

NSS

NOT SOLD SEPARAT

Hub Includes : Ref 2 Order : 389164A2

1шт.

2

R24542

BUSHING,44.51mm ID x 49.23mm OD x 38.1mm L

2шт.

3

R33557

PLUG

Hex Socket

1шт.

4

D35266

THRUST WASHER,44.96mm ID x 63.5mm OD x 1.58mm Thk

Thrust

2шт.

5

R58807

GROOVED PIN,1/2" x 2 3/4", Type A, Hardened

1/2" x 2 3/4", Type A, Hardened

2шт.

6

R58706

SHAFT

1шт.

7

R33607

SEAL

Assy Consists Of : 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Seal Order : R33607

2шт.

9

N6847

O-RING,75mm ID x 8mm Width

Face Seal

2шт.

10

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

2шт.

11

389174A1

BRACKET

Replaces 329711A1

2шт.
