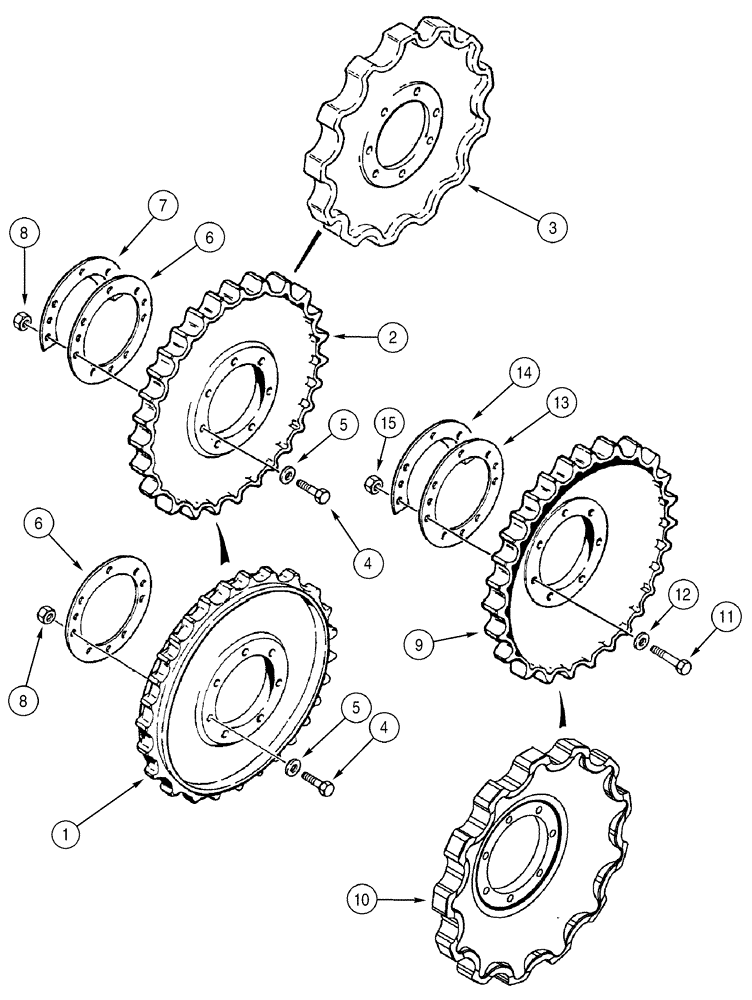

Запчасти Case 550H (5-02) - SPROCKET, TRACK, 1346 MM (53 INCH) GAUGE LONG TRACK (LT) MODELS (11) - TRACKS/STEERING

1

R57765

SPROCKET ASSY.

Used on Models With Rubber Tracks

2шт.

2

R57298

DRIVE SPROCKET

Used on Models With Steel Tracks

2шт.

2

R57392

DRIVE SPROCKET

Relieved Used on Models With Steel Tracks

2шт.

3

199706A1

SPROCKET ASSY.

Used on Models With Extended Life Track Chain

2шт.

4

R27954

BOLT

Special 3/4 x 3

14шт.

5

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

Special

14шт.

6

R46160

SHIM,.032" Thk

1шт.

7

117702A1

GUARD

Seal Used on Models With Steel Tracks If Equipped

4шт.

8

29-1012

NUT,3/4"-10, G8

14шт.

9

R57281

DRIVE SPROCKET

Used on Models With Steel Tracks, 1627mm (64") gauge wide track (WT) or low ground pressure (LPG) models

2шт.

10

254393A1

SPROCKET ASSY.

Used on Models With Extended Life Track Chain, 1627mm (64") gauge wide track (WT) or low ground pressure (LPG) models

2шт.

11

R39270

BOLT

Special 3/4 x 3-1/2; 8, 1627mm (64") gauge wide track (WT) or low ground pressure (LPG) models

14шт.

12

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

Special, 1627mm (64") gauge wide track (WT) or low ground pressure (LPG) models

14шт.

13

R46160

SHIM,.032" Thk

1627mm (64") gauge wide track (WT) or low ground pressure (LGP) models

1шт.

14

117702A1

GUARD

Seal Used on Models With Steel Tracks If Equipped, 1627mm (64") gauge wide track (WT) or low ground pressure (LPG) models

4шт.

15

29-1012

NUT,3/4"-10, G8

1627mm (64") gauge wide track (WT) or low ground pressure (LGP) models

14шт.
