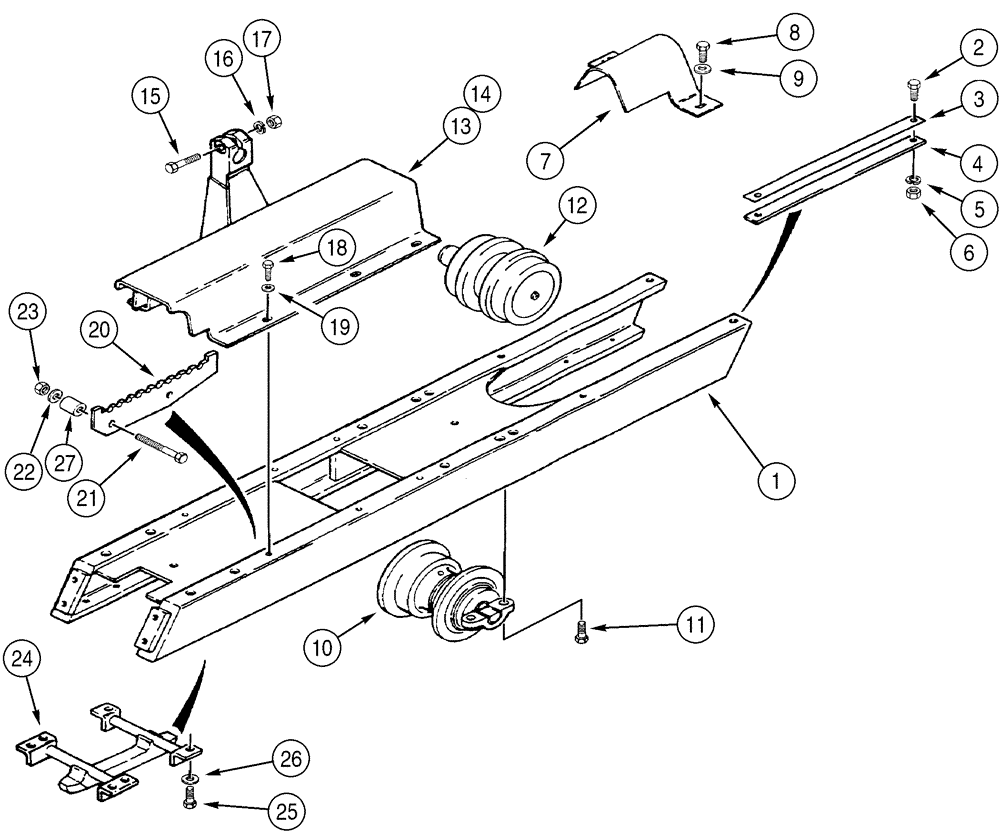

Запчасти Case 550H (5-01) - FRAME, TRACK - ROLLER AND RECOIL HOUSING (11) - TRACKS/STEERING

1

175297A1

FRAME

Track

2шт.

2

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

3

R58722

SHIM,0.81mm Thk

1шт.

4

R58373

BAR

Plate, Wear

4шт.

5

492-11062

BEARING WASHER,5/8"

8шт.

6

425-1010

NUT,5/8"-11, G5

8шт.

7

R57631

GUARD

Shield, Protective Track Adjuster

2шт.

8

326-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

4шт.

9

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

10

REF

INSTRUCTION

ROLLER ASSY,Track See Figure: 5-06

12шт.

11

106-91024

LOCK BOLT,Locking, 5/8"-11 x 1 1/2", G5, Full Thd

48шт.

12

198941A1

ROLLER ASSY.

Carrier Component Parts Not Serviced Separately

2шт.

13

187931A2

HOUSING

Recoil Right Hand Used on Models With Rubber Tracks

1шт.

13

187917A2

HOUSING

Recoil Right Hand Used on Models With Steel Tracks For Service Order : 109712A2

1шт.

14

187932A2

HOUSING

Recoil Left Hand Used on Models With Rubber Tracks

1шт.

14

187916A2

HOUSING

Recoil Left Hand Used on Models With Steel Tracks For Service Order : 109711A2

1шт.

15

326-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

2шт.

16

R24323

WASHER

2шт.

17

231-4118

LOCK NUT,1/2"-13, GB

1/2; Replaces 231-1448

2шт.

18

326-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

10шт.

19

496-21053

WASHER,17/32" x 1 1/16" x .134"

10шт.

20

100776A1

STEP

Plate 1346 mm (53 inch) Gauge Long Track (LT) Models

2шт.

21

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

5/8 x 4

4шт.

22

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

4шт.

23

425-1010

NUT,5/8"-11, G5

4шт.

24

247213A1

GUIDE

Used on Models With Rubber Tracks

4шт.

25

113-2448

LOCK BOLT,Locking, 1/2"-13 x 1 1/2", G8

24шт.

26

496-21053

WASHER,17/32" x 1 1/16" x .134"

24шт.

27

D124524

SPACER

4шт.
