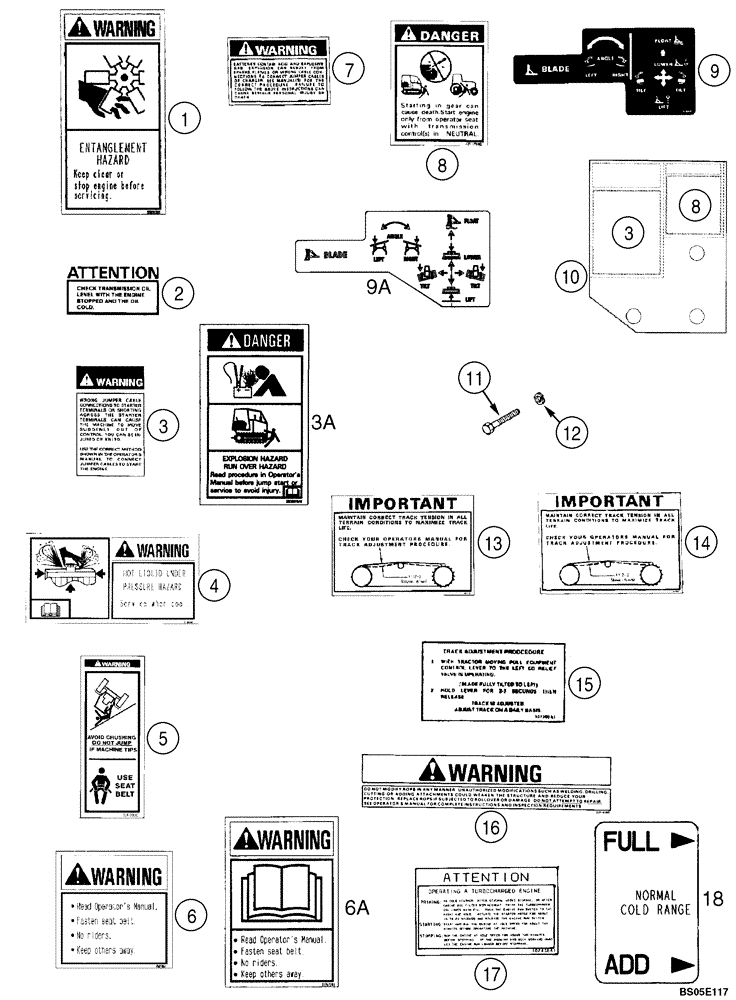

Запчасти Case 550H (9-24) - DECALS - ENGLISH (09) - CHASSIS/ATTACHMENTS

1

332512A1

DECAL

Fan Warning

1шт.

2

R50495

DECAL

Transmission Oil

1шт.

3

383973A1

DECAL,60mm x 100mm H

Warning Jump Start

1шт.

4

329044A1

WARNING DECAL,168mm x 88mm H

Radiator Cap

1шт.

5

321-7030

WARNING DECAL

Do Not Jump

1шт.

6

382622A1

DECAL,60mm x 90mm H

Warning Read the Operator's Manual

1шт.

7

321-6714

DECAL

Danger Engine Start Warning

1шт.

8

321-7040

DANGER DECAL

Engine Start Warning

1шт.

9

178505A1

DECAL

Dozer Blade Control Pattern

1шт.

9a

87420954

DECAL

Dozer Blade Control Pattern

1шт.

10

109696A1

LARGE PLATE

PLATE, LARGE Decal Mounting Used With 3, 8

1шт.

11

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

12

892-11012

LOCK WASHER,M12

2шт.

13

R57776

DECAL

Important Track Tension Used on Models With Steel Tracks

1шт.

14

101313A1

DECAL

Important Track Tension Used on Models With Rubber Tracks

1шт.

15

124200A1

DECAL

Track Adjustment Procedure Used on Models With Rubber Tracks

1шт.

16

383972A1

WARNING DECAL,195mm x 37mm H

Do Not Modify ROPS

1шт.

17

102436A1

DECAL

Attention, Operating Turbocharged Engine Models With Turbocharger

1шт.

18

384710A1

DECAL

Coolant Level

1шт.
