Запчасти Case 550H (2-06) - AIR CLEANER ASSY, PRECLEANER ASSY (02) - ENGINE

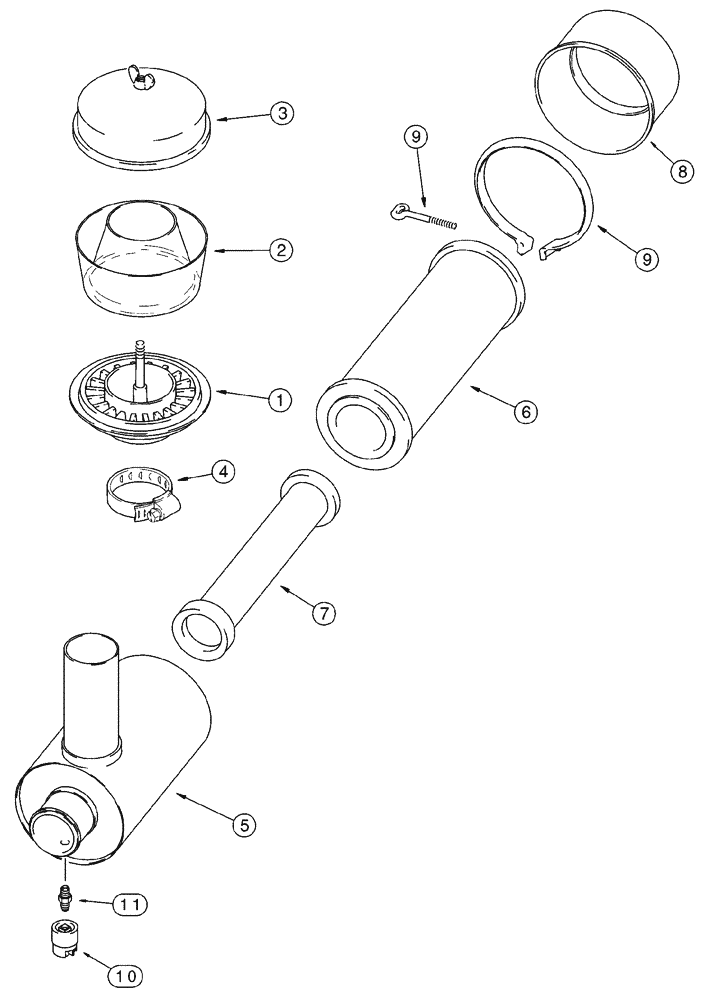

Схема запчастей Case 550H - (2-06) - AIR CLEANER ASSY, PRECLEANER ASSY (02) - ENGINE
9
5
9
3
2
11
7
1
4
6
10
8

Артикул

Название

Примечание

Количество

228120A1

PRECLEANER

Consists Of : 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

277377R1

FILTER BOWL

Bowl

1шт.

3

A42281

COVER

1шт.

4

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

1шт.

293571A1

AIR CLEANER

Consists Of : 5 - 11

1шт.

226378A1

AIR CLEANER

Consists Of : 5 - 9

1шт.

5

NSS

NOT SOLD SEPARAT

Housing, air cleaner assy

1шт.

6

222421A1

AIR FILTER

Primary, air cleaner assy

1шт.

7

222422A1

AIR FILTER

ELEMENT, FILTER Secondary, air cleaner assy

1шт.

8

247743A1

FILTER COVER

air cleaner assy

1шт.

9

R21391

CLAMP

Includes Hardware, air cleaner assy

1шт.

10

292740A1

RESTRICTION SWITCH

Air Restriction, air cleaner assy

1шт.

11

D36264

FITTING

air cleaner assy

1шт.

Выбрано товаров: 14
