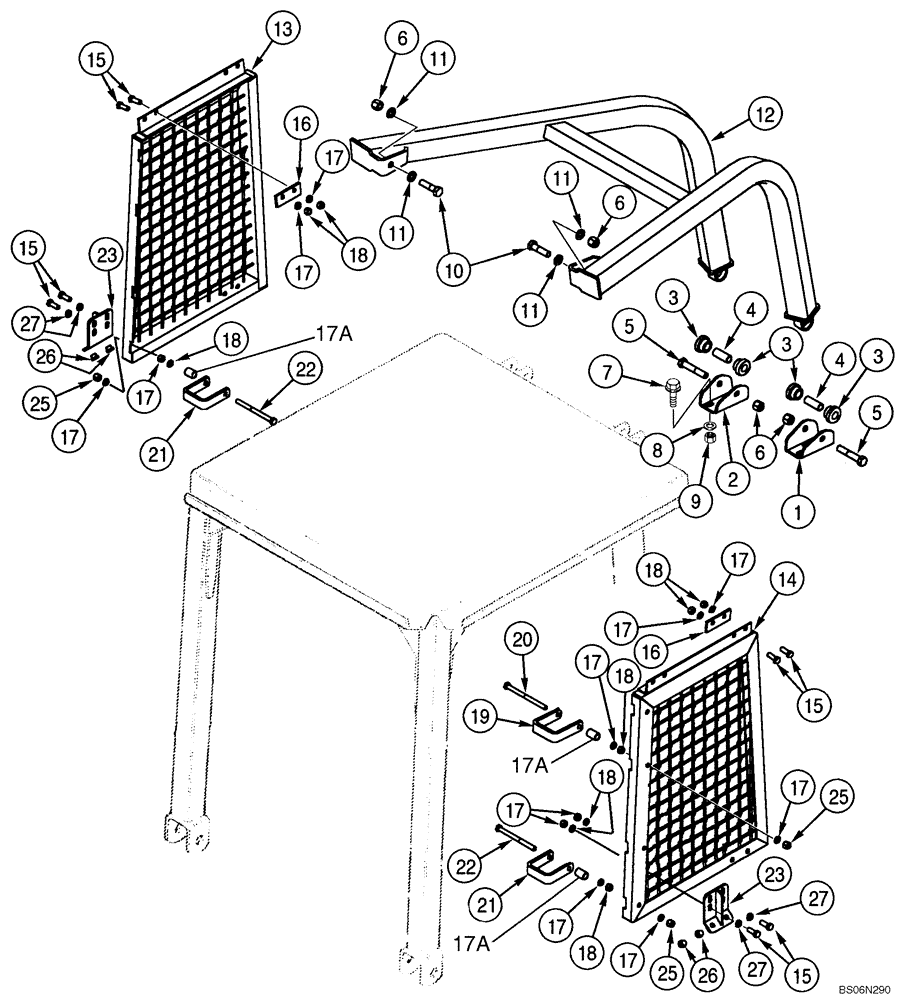

Запчасти Case 550H (9-21) - SCREENS, SIDE - GUARD, BRUSH (09) - CHASSIS/ATTACHMENTS

1

362508A1

BRACKET

Right Hand

1шт.

2

362509A1

BRACKET

Left Hand

1шт.

3

R40721

GROMMET

Insulator Rubber

4шт.

4

R40954

BUSHING

2шт.

5

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

3/4 x 4

2шт.

6

232-14412

NUT,3/4"-10, GB

3/4

4шт.

7

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

6шт.

8

496-21053

WASHER,17/32" x 1 1/16" x .134"

6шт.

9

231-1448

NUT,1/2"-13, GB

6шт.

10

326-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

2шт.

11

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

4шт.

12

359979A1

GUARD

Brush

1шт.

13

183901A2

SCREEN

Left Hand Side

1шт.

14

183902A2

SCREEN

Right Hand Side

1шт.

15

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

12шт.

16

177383A1

CLAMP

Spacer Upper

4шт.

17

492-11050

LOCK WASHER,1/2"

; If Used

12-20шт.

17a

393956A1

BUSHING

; If Used

4шт.

18

425-108

NUT,1/2" - 13, Gr 5

16шт.

19

183909A1

CLAMP

Upper Rear

2шт.

20

113-443

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

2шт.

21

183903A1

CLAMP

Lower Rear

2шт.

22

113-2434

BOLT,Hex, 1/2" - 13 x 6", Gr 5

2шт.

23

362510A1

BRACKET

Side Screen Support

2шт.

25

231-1448

NUT,1/2"-13, GB

4шт.

26

R38089

CUSHION ASSY.

Bumper Rubber Screen

4шт.

27

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

4шт.
