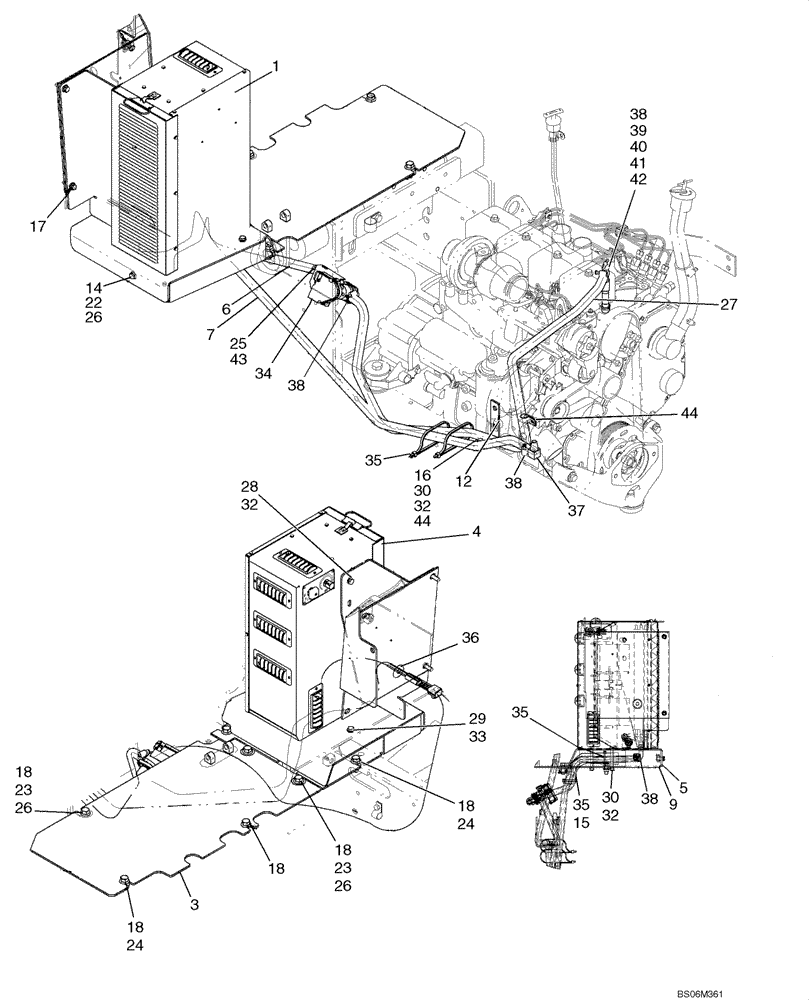

Запчасти Case 550H (9-20) - CANOPY, ROPS - HEATER SYSTEM (09) - CHASSIS/ATTACHMENTS

1

364018A1

HEATER

ASSY; Component Parts Not Serviced Seperately

1шт.

3

364877A1

PLATE ASSY.

Floor Rops

1шт.

4

364374A1

BRACKET

Rops Heater

1шт.

5

364373A1

BRACKET

Rops Heater

1шт.

6

133834A1

HEATER HOSE,15.50 mm ID x 800.00 mm

Heater Supply

1шт.

7

393029A1

HEATER HOSE,15.88 mm ID x 1725.00 mm

Return

1шт.

9

383589A1

PLATE ASSY.

Rops Heater

1шт.

12

R51414

SUPPORT

Heater Hose

1шт.

14

121-231

SERRATED BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

15

142334A1

SLEEVE

1шт.

16

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

1шт.

17

160-103

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

2шт.

18

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

7шт.

20

A149804

FUSE

Not Illustrated; See Fig 4-07, Ref 25

1шт.

21

314451A1

RELAY

Heavy Duty, Sealed Base (45 A); Not Illustrated; See Fig 4-07, Ref 24

1шт.

22

224-2206

SQUARE NUT,Sq, 3/8"-16

1шт.

23

224-2808

SQUARE NUT,Sq, 1/2"-13, G2, Hvy

4шт.

24

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

25

231-5344

FLANGE NUT,Flg, 1/4"-20

1шт.

26

336371A1

PIN,4.88mm OD x 14.23mm L

NUT Retainer

5шт.

27

393030A1

HEATER HOSE,15.88 mm ID x 1700.00 mm

Supply

1шт.

28

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

29

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

HEX HD .375 x 3.50; 5

2шт.

30

425-106

NUT,3/8"-16, Cl 5

4шт.

32

492-11038

LOCK WASHER,3/8"

5шт.

33

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

0.406 x 0.812 x .065 inch

2шт.

34

382537A1

ACTUATOR

Valve; Kyson Heater Flow Control

1шт.

35

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

5шт.

36

L77821

GROMMET,1/2" ID x 1 1/4" Groove Dia, Str Cut

1шт.

37

R50454

FITTING

90 Degree Barb Hose Stem

1шт.

38

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

5шт.

39

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

1шт.

40

221-1165

JUNCTION

Nipple Pipe 3/8 x 2.50

1шт.

41

221-1337

COUPLING,Pipe, 3/8" NPT

1шт.

42

A16764

VALVE

Shut-Off

1шт.

43

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

44

D20302

CLAMP,7/8", Insul, 3/8" Bolt

1шт.
