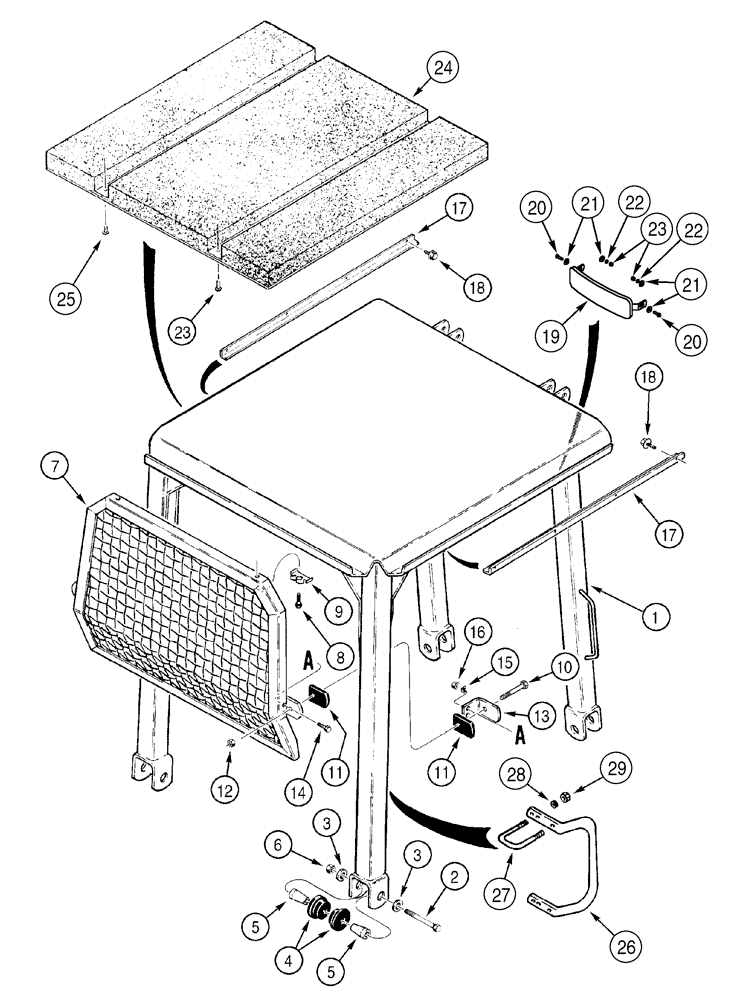

Запчасти Case 550H (9-19) - CANOPY, ROPS - FRAME AND REAR SCREEN (09) - CHASSIS/ATTACHMENTS

1

338791A1

ROOF

Canopy

1шт.

2

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

3/4 x 6

4шт.

3

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

19,8 x 44,5 x 5,6

8шт.

4

F44212

MOUNTING PARTS

Insulator Rubber

8шт.

5

F44211

BUSHING,19.46mm ID x 38.1mm OD x 53.85mm L

8шт.

6

231-14412

LOCK NUT,3/4"-10, GB

4шт.

7

183906A1

SCREEN

Rear

1шт.

8

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

9

182651A1

LOCK WASHER

Special

2шт.

10

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1/2 x 5

2шт.

11

R40074

CUSHION ASSY.

4шт.

12

231-1448

NUT,1/2"-13, GB

2шт.

13

183904A1

CLAMP

2шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

15

492-11038

LOCK WASHER,3/8"

4шт.

16

425-106

NUT,3/8"-16, Cl 5

4шт.

17

180589A1

ANGLE

Bracket Headliner

2шт.

18

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

8шт.

19

367831A1

MIRROR

Rear View

1шт.

20

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

21

496-41041

WASHER,13/32" x 1 1/8" x .134"

4шт.

22

492-11038

LOCK WASHER,3/8"

2шт.

23

231-1446

NUT,3/8" - 16, Gr 5

2шт.

24

180575A1

PAD

Headliner Vinyl

1шт.

25

151-706

CLIP,Rd 7/8" Hd, 1/4" Hole

1/4 x 7/8

8шт.

26

187895A1

HANDLED SHAFT

Handrail If Equipped

2шт.

27

110435A1

U-BOLT

3/8

4шт.

28

496-21041

WASHER,13/32" x 13/16" x .089", HDN

8шт.

29

425-106

NUT,3/8"-16, Cl 5

8шт.
