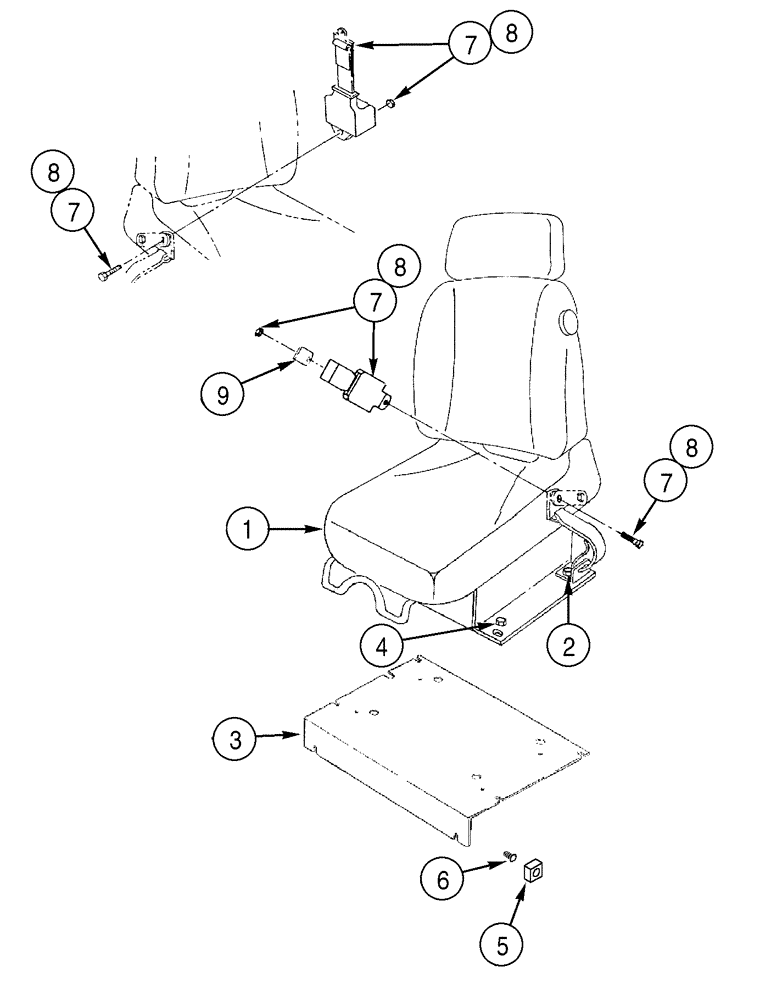

Запчасти Case 550H (9-15) - SEAT, MOUNTING - SEAT BELTS, MECHANICAL SUSPENSION (09) - CHASSIS/ATTACHMENTS

1

359121A1

SEAT

Mechanical Suspension, See Figure 9-16

1шт.

2

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

4шт.

3

R58717

PLATE

Support, Seat

1шт.

4

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

6шт.

5

224-2808

SQUARE NUT,Sq, 1/2"-13, G2, Hvy

4шт.

6

336371A1

PIN,4.88mm OD x 14.23mm L

4шт.

7

87408888

SAFETY BELT ,76.20 mm W

1шт.

8

87408889

SAFETY BELT ,50.80 mm W

Use with 9

1шт.

9

D150393

BRACKET

Use With : 8

1шт.
