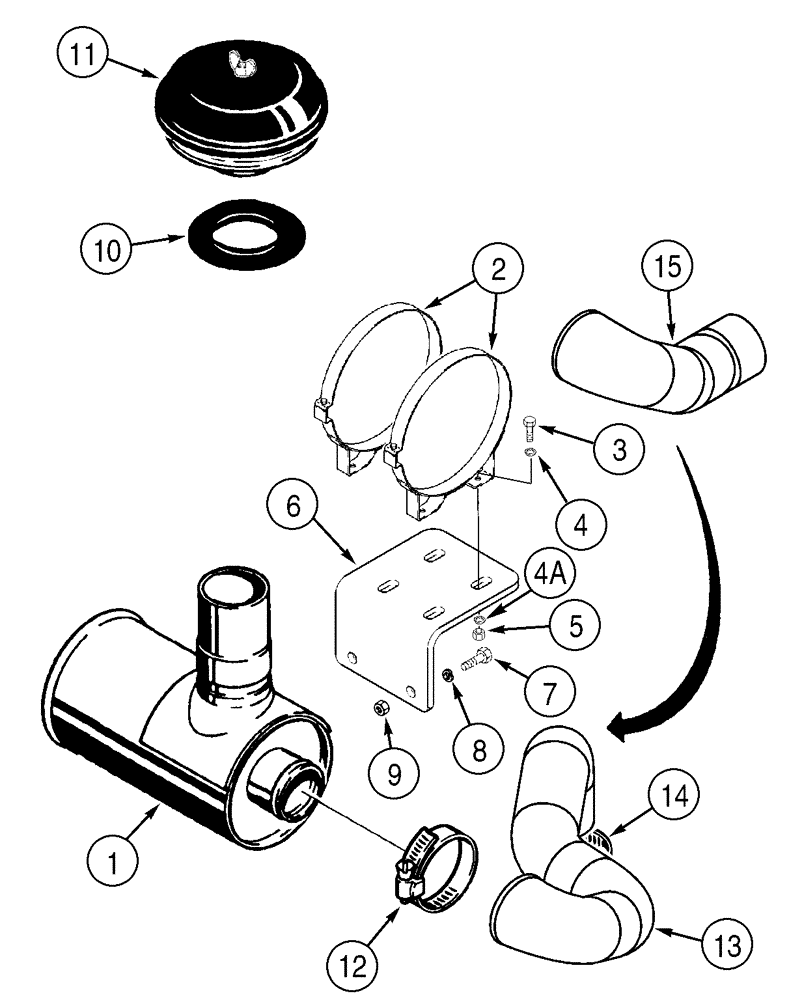

Запчасти Case 550H (2-05) - AIR CLEANER, MOUNTING (02) - ENGINE

1

293571A1

AIR CLEANER

See figure(s) : 2-06

1шт.

2

70973

BRACKET

Includes Hardware

2шт.

3

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

4

492-11031

LOCK WASHER,5/16"

4шт.

4a

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

4шт.

5

425-105

NUT,5/16"-18, G5

4шт.

6

315673A1

BRACKET

1шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

8

492-11038

LOCK WASHER,3/8"

2шт.

9

425-106

NUT,3/8"-16, Cl 5

2шт.

10

293973A1

SKID/SHOE

Hood

1шт.

11

228120A1

PRECLEANER

See figure(s) : 2-06

1шт.

12

214-3172

HOSE CLAMP,3-3/4" - 4-5/8", HD Worm

1шт.

13

346562A1

HOSE

Models Without Turbocharger

1шт.

14

214-3164

HOSE CLAMP,3-1/4" - 4-1/8", HD Worm

2-3/4 x 3-5/8

1шт.

15

358142A1

INTAKE AIR HOSE,88.90 mm ID x 274.90 mm, SAE J200

Models With Turbocharger

1шт.
