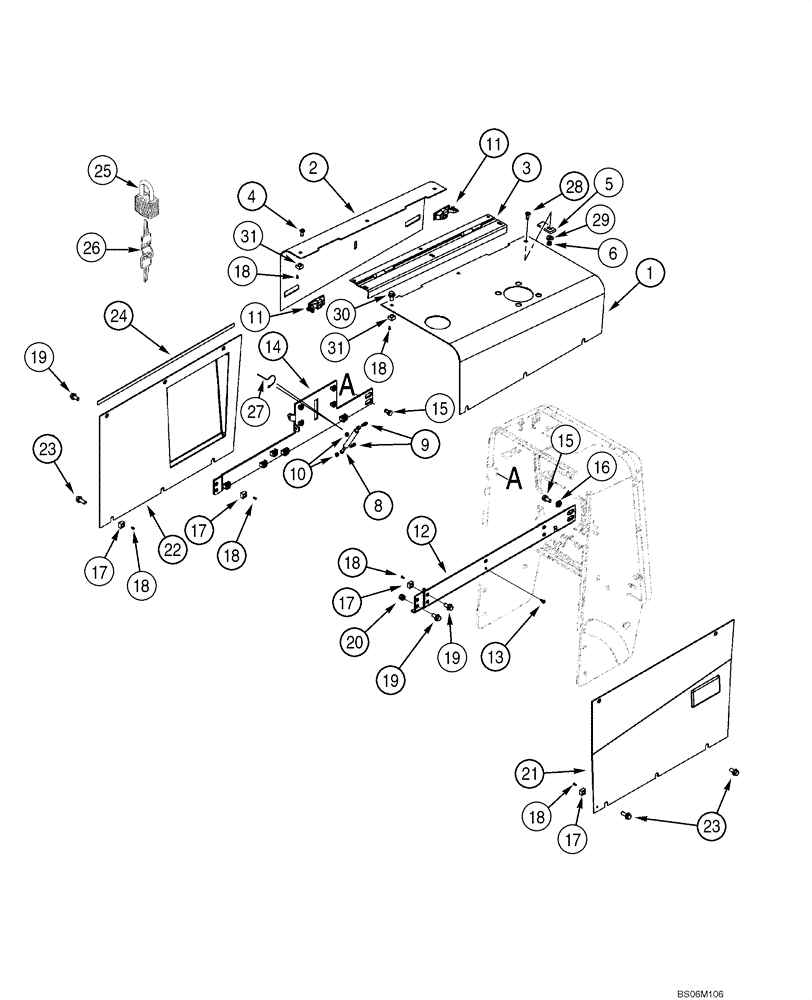

Запчасти Case 550H (9-12) - HOOD, SHIELDS AND SUPPORTS (09) - CHASSIS/ATTACHMENTS

1

87634027

HOOD

HOOD, Engine Right Hand; Replaces 358628A1

1шт.

2

87634028

HOOD

HOOD, Engine Left Hand; Replaces 358629A1

1шт.

3

87634029

HINGE

HOOD, Hinge; Replaces 359291A1

1шт.

4

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

Bolt, Flange 3/8 x 3/4; 8

4шт.

5

356567A1

PLATE

1шт.

6

160-104

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8

3/8; Replaces 425-106

1шт.

7

496-41041

WASHER,13/32" x 1 1/8" x .134"

1шт.

8

189787A2

SHOCK ABSORBER

Spring

1шт.

9

F44882

BALL

2шт.

10

231-1445

NUT,5/16"-18, GB

2шт.

11

356924A3

LATCH

; Replaces 356924A2

2шт.

12

347745A1

SUPPORT

Panel Right Hand

1шт.

13

A161780

BUMPER

1шт.

14

347747A1

SUPPORT

Panel Left Hand

1шт.

15

413-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

Bolt 1/2 x 7/8

4шт.

17

224-2808

SQUARE NUT,Sq, 1/2"-13, G2, Hvy

13шт.

16

R54996

SPACER

2шт.

18

336371A1

PIN,4.88mm OD x 14.23mm L

18шт.

19

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

12шт.

20

231-1448

NUT,1/2"-13, GB

4шт.

21

347604A1

SHIELD

Right Hand

1шт.

22

338182A1

SHIELD

Left Hand

1шт.

23

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

6шт.

24

364081A1

PAD

825 mm Adhesive Back

1шт.

25

D93753

PADLOCK

Includes : 26

1шт.

26

R29555

KEY

For Master Padlock Only

2шт.

26

D93751

SET OF 2 KEYS

For Yale Padlock Only

2шт.

27

F44883

CLIP,DIN 71805 - S10

Retainer Spring

2шт.

28

160-104

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8

Flange 3/8 x 1-3/4; 8; Replaces 160-103 Flange 3/8 x 1-1/4; 8, Used On Some Models

1шт.

29

492-11038

LOCK WASHER,3/8"

17/32 x 1-1/16 x 1/8

1шт.

30

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

1шт.

31

224-2806

SQUARE NUT,Sq, 3/8"-16, G2, Hvy

Square 3/8

5шт.
