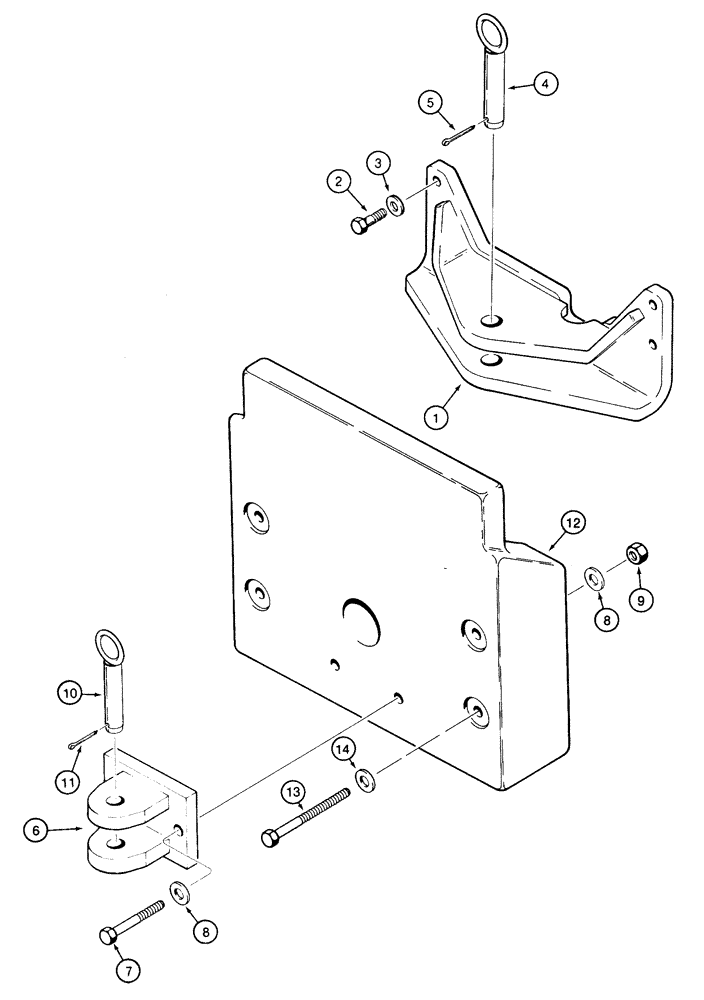

Запчасти Case 550H (9-06) - DRAWBAR, COUNTERWEIGHT (09) - CHASSIS/ATTACHMENTS

1

R47224

DRAWBAR

1шт.

2

326-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

4шт.

3

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

Special

4шт.

4

R24105

DRAWBAR

Pin, Hitch

1шт.

5

32-1632

COTTER PIN,1/4" x 2"

1шт.

6

R39904

DRAWBAR

1346 mm (53") gauge long track (LT) models with no rear equipment

1шт.

7

326-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

1346 mm (53") gauge long track (LT) models with no rear equipment

2шт.

8

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

19,8 x 44,5 x 5,6, 1346 mm (53") gauge long track (LT) models with no rear equipment with no rear equipment

4шт.

9

425-1012

NUT,3/4"-10, G5

1346 mm (53") gauge long track (LT) models with no rear equipment

2шт.

10

R24105

DRAWBAR

Pin, Hitch, 1346 mm (53") gauge long track (LT) models with no rear equipment

1шт.

11

32-1632

COTTER PIN,1/4" x 2"

1346 mm (53") gauge long track (LT) models with no rear equipment

1шт.

12

R57072

BALANCER

Counterweight 227 kg (500 lb), 1346 mm (53") gauge long track (LT) models with no rear equipment

1шт.

13

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

Bolt 3/4 x 7-1/2; 5, 1346 mm (53") gauge long track (LT) models with no rear equipment

4шт.

14

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

19,8 x 44,5 x 5,6, 1346 mm (53") gauge long track (LT) models with no rear equipment

4шт.
