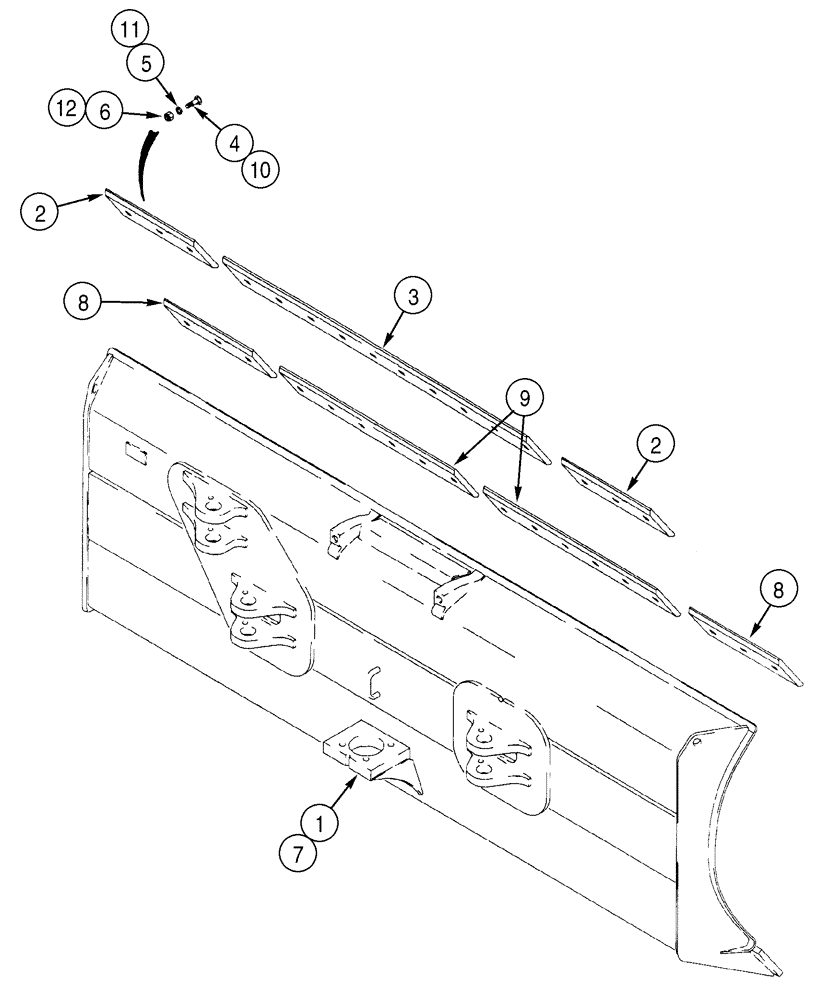

Запчасти Case 550H (9-03) - BLADE, DOZER - EDGES, CUTTING (09) - CHASSIS/ATTACHMENTS

1

311732A1

BLADE

Dozer, 2438 mm (96 in) 1346 mm (53 inch) Gauge Long Track (LT) Models

1шт.

2

305440A1

EDGE

Cutting, 457 mm (18 in) End

2шт.

3

311729A1

EDGE

Cutting, 1516 mm (59-1/4 in) Center Used With : 1

1шт.

4

R56474

PLOW BOLT

Plow 3/4 x 2-1/2; 8

16шт.

5

92-11075

LOCK WASHER,3/4"

16шт.

6

29-1012

NUT,3/4"-10, G8

16шт.

7

346298A1

BLADE

Dozer, 2794 mm (110 in) 1627 mm (64 inch) Gauge Wide Track (WT) or Low Ground Pressure (LGP) Models

1шт.

8

305440A1

EDGE

Cutting, 457 mm (18 in) End

2шт.

9

346292A1

EDGE

Cutting, 933 mm (36-3/4 in) Center Used With : 7

2шт.

10

R56474

PLOW BOLT

Plow 3/4 x 2-1/2; 8

18шт.

11

92-11075

LOCK WASHER,3/4"

18шт.

12

29-1012

NUT,3/4"-10, G8

18шт.
