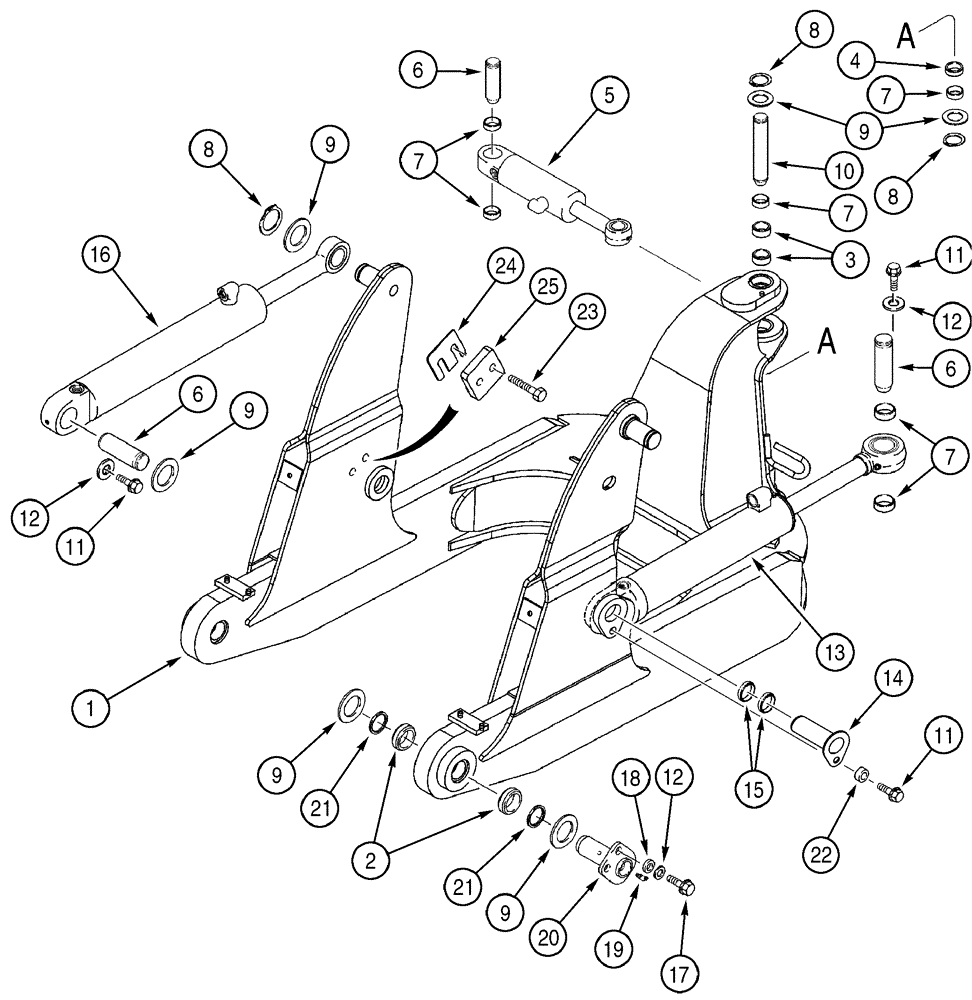

Запчасти Case 550H (9-01) - FRAME, LIFT - CYLINDERS, MOUNTING (09) - CHASSIS/ATTACHMENTS

1

305204A1

FRAME ASSY

Lift Includes : 2 - 4; also includes 117838A1 Pin

1шт.

117838A1

PIN

Welded to Trunnion Plate

1шт.

2

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

1-3/4 x 2-1/4 x 1

4шт.

3

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

1-3/4 x 2-1/4 x 3/4

2шт.

4

309696A1

BUSHING

1-3/4 x 2-1/4 x 7/8

4шт.

5

347202A1

CYLINDER ASSY.

89 ID x 137 mm strk Tilt See Figure(s) : 8-10

1шт.

5

412683A1R

REMAN-HYD CYLINDER

550H (12/99-), Reman for New PN 347202A1

1шт.

5

412683A1C

CORE-HYD CYLINDER

Return Number

1шт.

6

119101A1

PIN,44.42mm OD x 165mm L

44 x 165 mm

5шт.

7

121167A1

BUSHING,45.26mm ID x 50.8mm OD x 19.5mm L

Spacer

8шт.

8

103-16175

SNAP RING,#175, Ext

4шт.

9

495-81092

WASHER,1-7/8" ID x 2-1/2" OD x 1/16" Thk

1-25/32 x 2-1/2 x 3/64

1шт.

10

119106A1

PIN,44.42mm OD x 260mm L

44 x 260 mm

1шт.

11

360-1020

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

Flange 5/8 x 1-1/4; 8

6шт.

12

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

Special

9шт.

13

307662A1

CYLINDER ASSY.

76 ID x 358 mm strk Angle See Figure(s) : 8-11

2шт.

14

379781A1

PIN

2шт.

15

121166A1

BUSHING,45.26mm ID x 50.8mm OD x 12mm L

4шт.

16

307112A1

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 574.7mm Stroke

76 ID x 574 mm strk Lift See Figure(s) : 8-09

2шт.

17

360-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

Bolt, Flange 5/8 x 2; 8

4шт.

18

R53353

WASHER,16.13mm ID x 22.23mm OD x 15.3mm L

Bushing

4шт.

19

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

Use Loctite No. 271

2шт.

B17500

LOCTITE

No. 271, 6 ml

1шт.

20

305235A1

PIN,44.45mm OD x 154.5mm L

Linch

2шт.

21

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

U-Cup

2шт.

22

R30855

BUSHING

2шт.

23

326-864

BOLT,Hex, 1/2" - 13 x 4", Gr 8

4шт.

24

144476A1

SHIM

4шт.

25

144208A1

WEAR PLATE

2шт.
