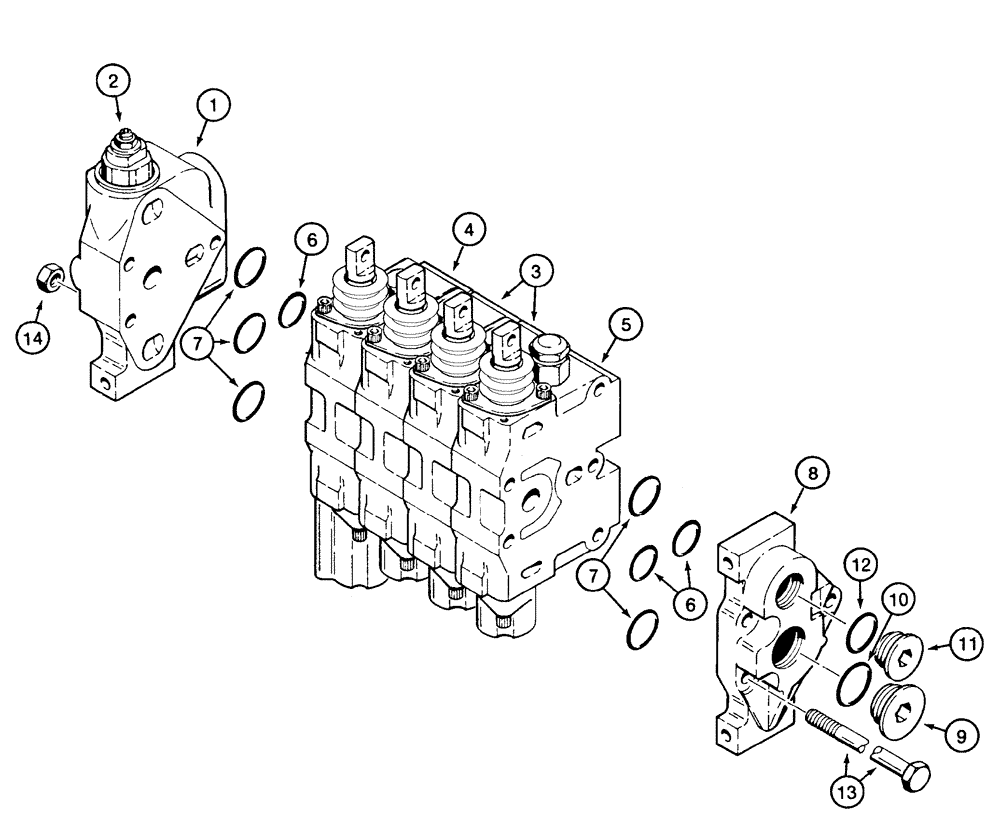

Запчасти Case 550H (8-17) - VALVE, CONTROL, 4 SECTIONS (08) - HYDRAULICS

336344A1

Valve, Control, 4 Spool Consists Of : 1 - 14; No Longer Available, Order 336344A3, LT Models; Added Improved Lift Spools To The Improved Tilt and Angle Spools

1шт.

336344A3

VALVE

Valve, Control, 4 Spool Consists Of : 1 - 14; LT Models; ; Added Improved Lift Spools To The Improved Tilt and Angle Spools

1шт.

336346A3

VALVE

Control, 4 Spool Consists Of : 1 - 14; LGP Models; Service Replacement For : 336346A1, 336346A2; Added Improved Lift Spools To The Improved Tilt and Angle Spools

1шт.

1

N8942

VALVE BLOCK

Housing Inlet And Outlet

1шт.

2

N8191

VALVE

Relief Main See Figure(s) : 8-18; See Note

1шт.

3

357165A2

HYD VALVE SECTION

Tilt Control Angle Control See Figure(s) : 8-20; Replaces 357165A1

2шт.

4

357161A2

HYD VALVE SECTION

Lift Control See Figure(s) : 8-19; Replaces 357161A1

1шт.

5

357166A2

HYD VALVE SECTION

Ripper See Figure(s) : 8-20; Replaces 357166A1

1шт.

REF

INSTRUCTION

Valve Assy, Control 4 Spool

1шт.

6

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

6шт.

7

238-5119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

14шт.

8

100825A1

COVER

End Assy Includes : 8 - 11

1шт.

9

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

Includes 9

1шт.

10

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

11

9841223

PLUG,1-1/16" - 12 ORB

Incl. 11

1шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

13

413-6152

BOLT,Hex, 3/8" - 16 x 9-1/2", Gr 5

3/8 x 9-1/2

3шт.

14

425-106

NUT,3/8"-16, Cl 5

3шт.
