Артикул
Название
Примечание
Количество

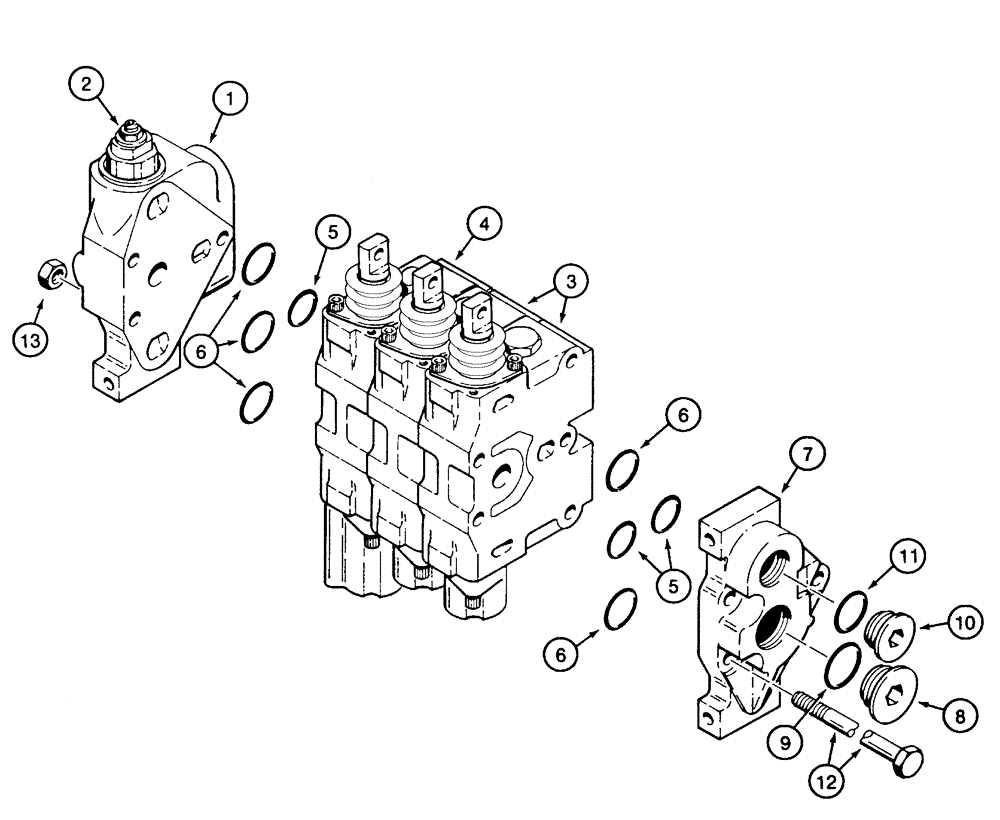

336343A1
Valve Assy, Control, 3 Spool Consists Of : 1 - 13; No Longer Available, Order 336343A3; Added Improved Lift Spools To The Improved Tilt and Angle Spools
1шт.
336343A3
VALVE
Control, 3 Spool Consists Of: 1 - 13, LT Models; Added Improved Lift Spools To The Improved Tilt and Angle Spools
1шт.
336345A3
VALVE
Control, 3 Spool Consists Of : 1 - 13; LGP Models; Service Replacement For 336345A1, 336345A2; Added Improved Lift Spools To The Improved Tilt and Angle Spools
1шт.
1
N8942
VALVE BLOCK
Housing Inlet And Outlet
1шт.
2
N8191
VALVE
Relief Main See Figure(s) : 8-18 See Note
1шт.
3
357165A1
HYD VALVE SECTION
Tilt Control Angle See Figure(s) : 8-20
2шт.
4
357161A1
HYD VALVE SECTION
Lift Control See Figure(s) : 8-19
1шт.
REF
INSTRUCTION
Valve Assy, Control 3 Spool
1шт.
5
238-6117
O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro
5шт.
6
238-5119
O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro
11шт.
7
100825A1
COVER
End Assy Includes : 8 - 11
1шт.
8
218-5213
PLUG,Hex Soc, 1 3/16"-12 ORB
Includes 9
1шт.
9
237-6014
O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro
1шт.
10
9841223
PLUG,1-1/16" - 12 ORB
Incl. 11
1шт.
11
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
12
413-6128
BOLT,Hex, 3/8" - 16 x 8", Gr 5
3/8 x 8
3шт.
13
425-106
NUT,3/8"-16, Cl 5
3шт.
Выбрано товаров: 17
