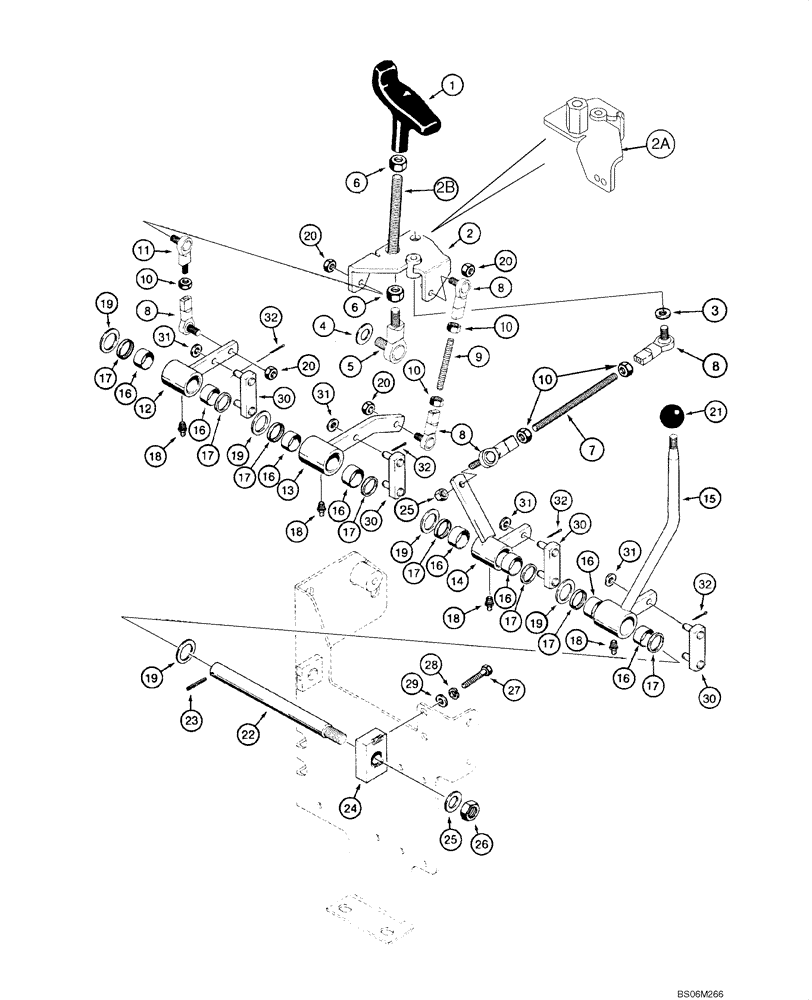

Запчасти Case 550H (8-15) - CONTROLS - LEVER AND LINKAGE, MODELS WITH FOUR SPOOL CONTROL VALVE (08) - HYDRAULICS

1

R58490

HANDLE

1шт.

2

377400A2

BRACKET

1шт.

2a

R58258

ROD

Threaded

1шт.

3

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

4

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

1шт.

5

A55558

BALL JOINT

Male

1шт.

6

425-158

JAM NUT,Jam, 1/2"-20, G5

Use Loctite No. 242

2шт.

7

377403A1

ROD

Threaded 5/16 NF x 131 mm

1шт.

8

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

Joint, 5/16 NF Female

5шт.

9

377402A1

ROD

Threaded 5/16 NF x 61 mm

1шт.

10

425-115

NUT,5/16"-24, G5

Use Loctite No. 242

5шт.

11

R47939

ROD

Ball Joint, 5/16 NF Male Use Loctite No. 242

1шт.

12

377393A1

ROCKER ARM

Lift Includes : 16 - 18

1шт.

13

377395A1

ROCKER ARM

Tilt Includes : 16 - 18

1шт.

14

R58246

ROCKER

Lever Assy Angle Includes : 16 - 18

1шт.

15

R58249

LEVER

Auxiliary Control Includes : 16 - 18

1шт.

16

L31166

NEEDLE BEARING

Roller

2шт.

17

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

Oil

2шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

19

1960614C1

WASHER,20mm ID x 35mm OD x 1.58mm Thk

Special Used as a Spacer

10шт.

20

232-4605

LOCK NUT,5/16"-24, GC

Use Loctite No. 242

5шт.

21

70213

KNOB

1шт.

22

R58256

SHAFT

1шт.

23

336371A1

PIN,4.88mm OD x 14.23mm L

3/16" x 1 1/2", Slotted

1шт.

24

R58257

BLOCK

1шт.

25

495-11066

WASHER,5/8", SAE

21/32 x 1-5/16 x 3/32

1шт.

26

231-24410

LOCK NUT,5/8"-18, GB

1шт.

27

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

28

492-11038

LOCK WASHER,3/8"

2шт.

29

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

30

139345A1

POWER ARM

Link

4шт.

31

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

32

432-612

COTTER PIN,3/32" x 3/4"

8шт.
