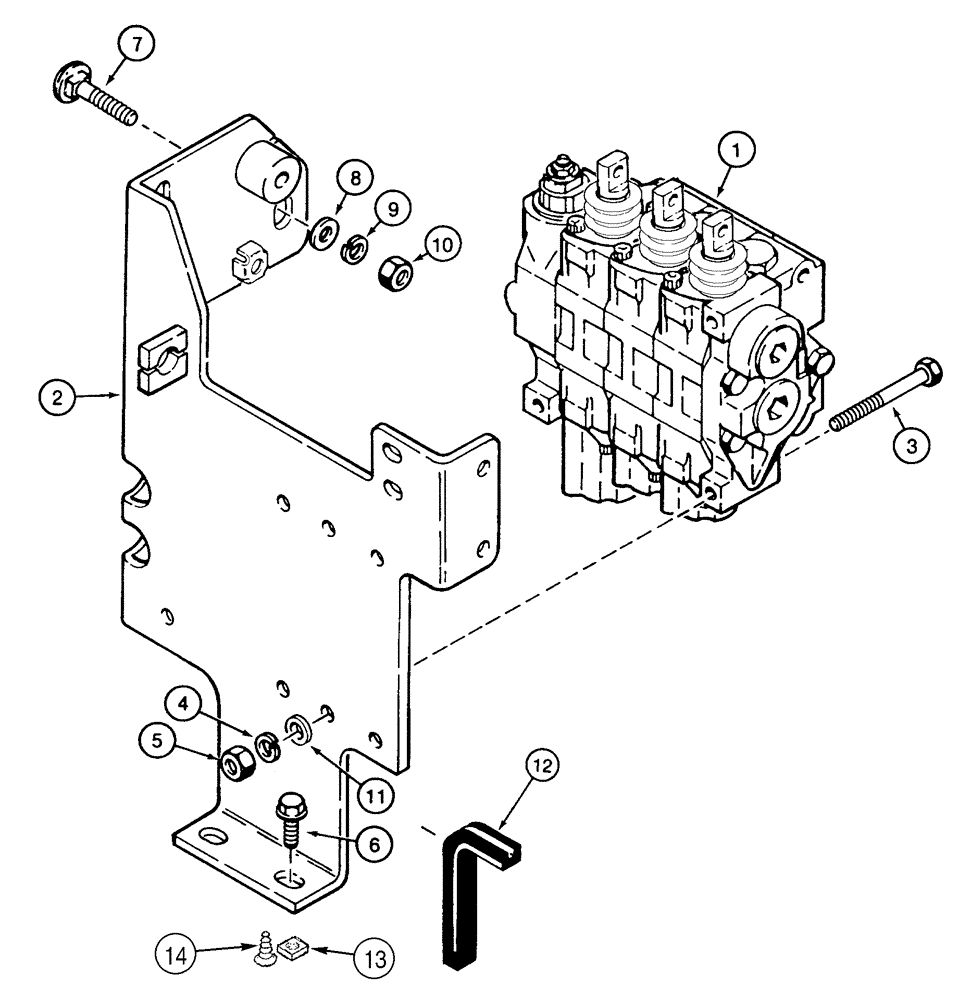

Запчасти Case 550H (8-13) - VALVE, CONTROL, MOUNTING (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve, Control See Figure(s) : 8-16, 8-17

1шт.

2

377398A1

BRACKET

1шт.

3

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

3шт.

4

492-11031

LOCK WASHER,5/16"

3шт.

5

425-105

NUT,5/16"-18, G5

3шт.

6

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

2шт.

7

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4

2шт.

8

495-21056

WASHER,1/2"

9/16 x 1-3/8 x 7/64

2шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

10

425-108

NUT,1/2" - 13, Gr 5

2шт.

11

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

3шт.

12

D55218

SEAL, GLASS,76mm L

Trim, 76 mm (3 in) Cut From : F42827

1шт.

13

224-2808

SQUARE NUT,Sq, 1/2"-13, G2, Hvy

2шт.

14

336371A1

PIN,4.88mm OD x 14.23mm L

2шт.
