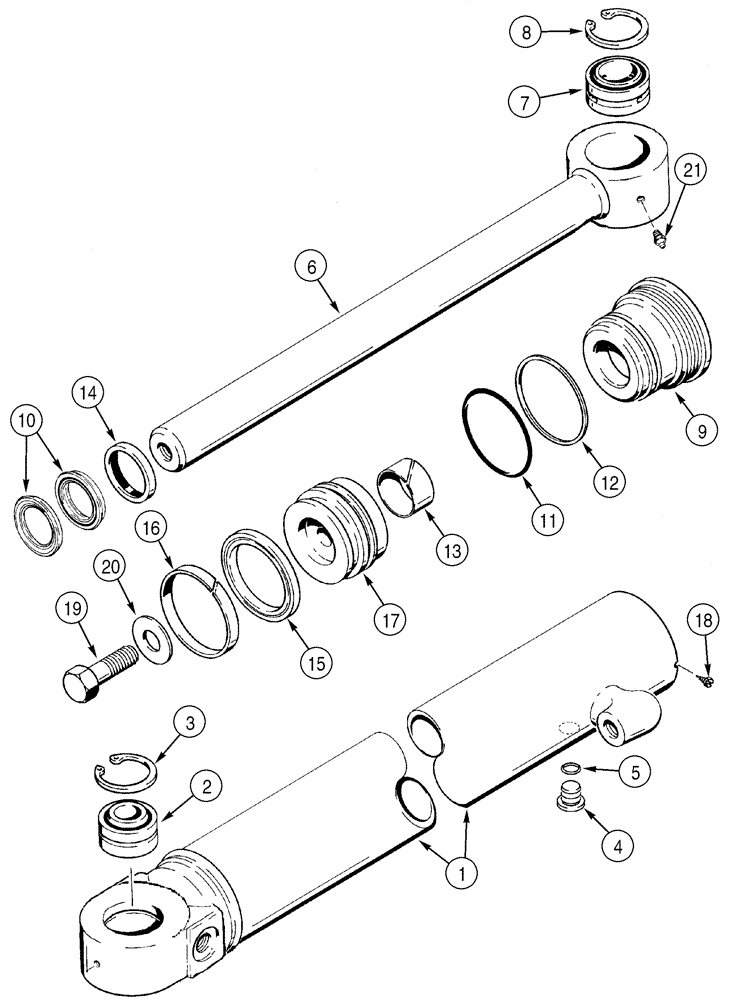

Запчасти Case 550H (8-11) - CYLINDER ASSY, ANGLE (08) - HYDRAULICS

307662A1

CYLINDER ASSY.

76 ID x 358 mm strk Angle Consists Of : 1 - 20

2шт.

1

307663A1

TUBE,76.1 mm ID, 578.8 mm Length

Includes : 2 - 5

1шт.

2

613524C91

SPHERICAL BEARING,44.44mm ID x 71.44mm OD x 38.89mm W

1шт.

3

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

2шт.

4

86625138

PLUG,7/18" - 14

Includes Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

307665A1

ROD ASSY.

Piston, 45 mm (1-3/4 inch) dia Includes : 7, 8

1шт.

7

613524C91

SPHERICAL BEARING,44.44mm ID x 71.44mm OD x 38.89mm W

1шт.

8

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

2шт.

9

1340795C2

CYLINDER END CAP

Gland, Packing

1шт.

310478A1

KIT

Consists Of : 10 -16

1шт.

10

NSS

NOT SOLD SEPARAT

Kit Seal, Rod and Buffer, Order : 310478A1

1шт.

11

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

12

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

Backup

1шт.

13

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

14

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

Wiper

1шт.

15

310133A1

SEAL

1шт.

16

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

1шт.

17

133097A1

PISTON

1шт.

18

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.
