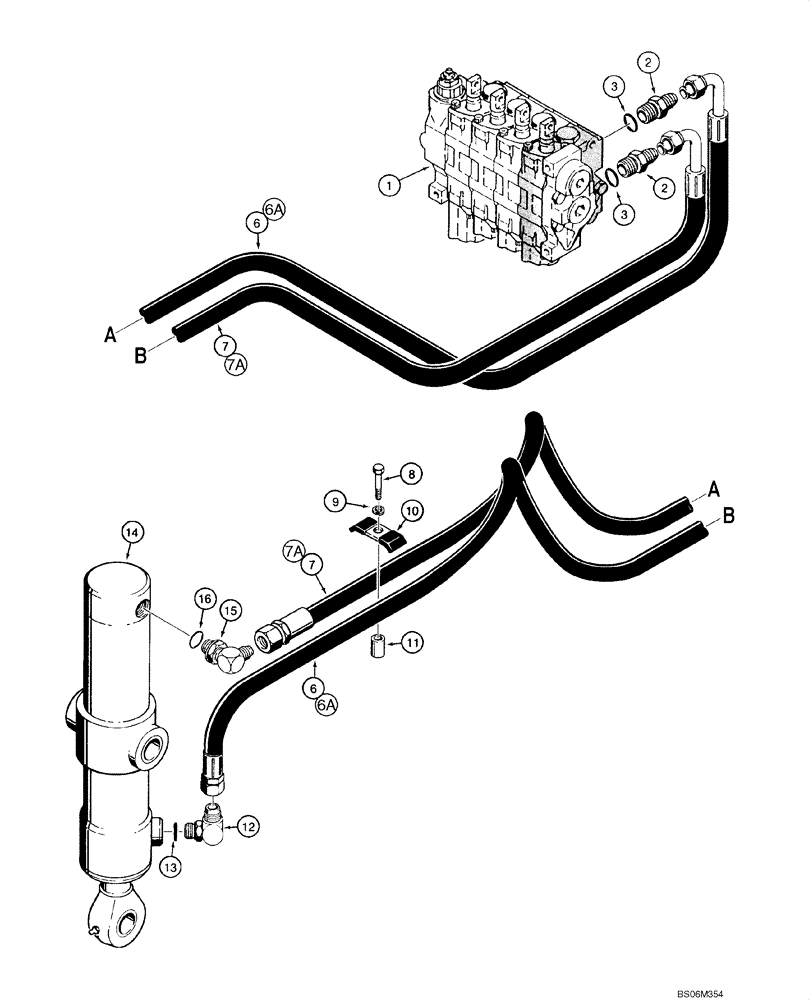

Запчасти Case 550H (8-07) - HYDRAULIC CIRCUIT, RIPPER (08) - HYDRAULICS

1

336344A2

VALVE

Valve, Control, 4 Spool Four Spool Service With : 336346A1 See Figure(s) : 8-17

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or Includes : 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

R50321

HOSE ASSY.

1372 mm (54 inch) Auxiliary Section Lower Port to Closed End of Cylinder; Ripper Port "B", W/ Swivel End; If Used

1шт.

6a

390622A1

HOSE

1372 mm (54 inch) Auxiliary Section Lower Port to Closed End of Cylinder; Ripper Port "B", W/ Rigid End; If Used

1шт.

7

R47442

HOSE

1524 mm (60 inch) Auxiliary Section Upper Port to Rod End of Cylinder; Ripper Port "A", W/ Swivel End; If Used

1шт.

7a

390621A1

HOSE

1524 mm (60 inch) Auxiliary Section Upper Port to Rod End of Cylinder; Ripper Port "A", W/ Rigid End; If Used

1шт.

8

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

9

492-11038

LOCK WASHER,3/8"

1шт.

10

R25782

CLAMP

1шт.

11

A19177

SPACER

1шт.

12

R20839

FITTING

90 Includes : 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

14

G101230

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 266.7mm Stroke

76 ID x 267 mm strk Ripper See Figure(s) : 8-12

1шт.

15

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90, 7/8 fl x adj Or Incl. : 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
